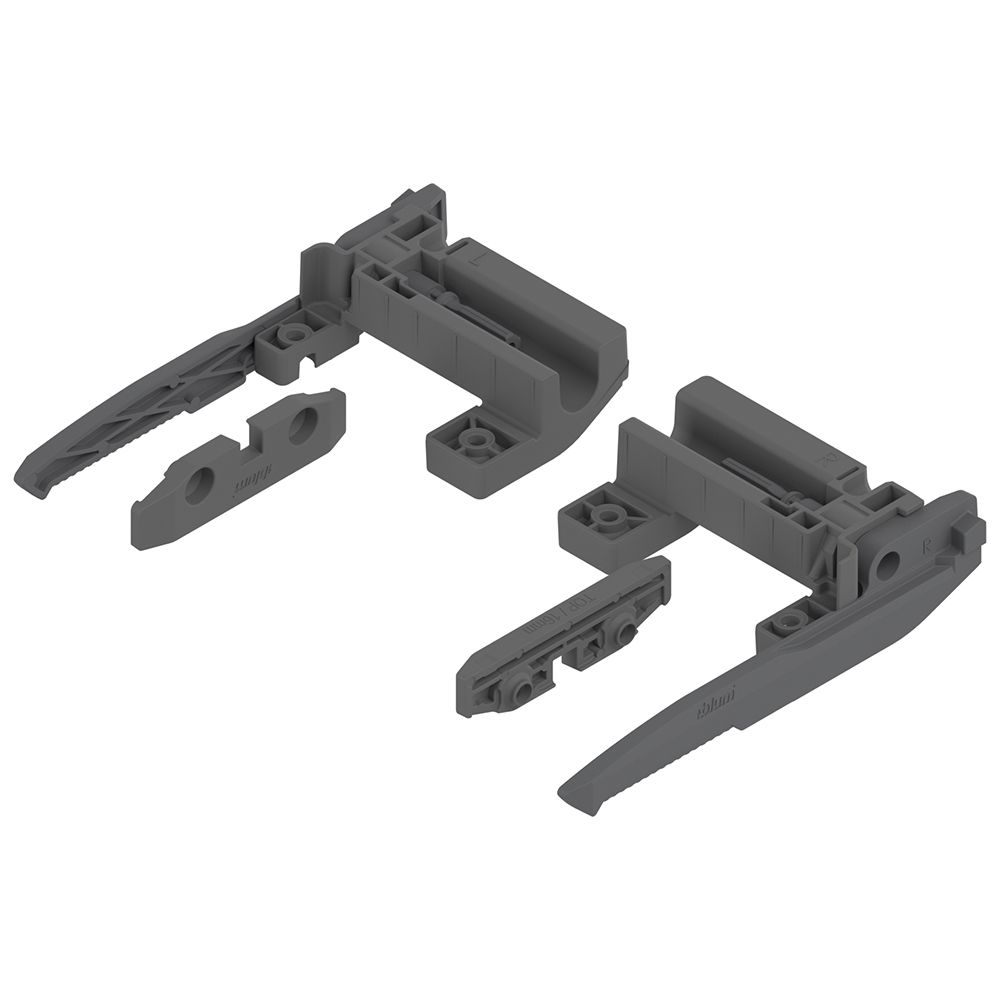

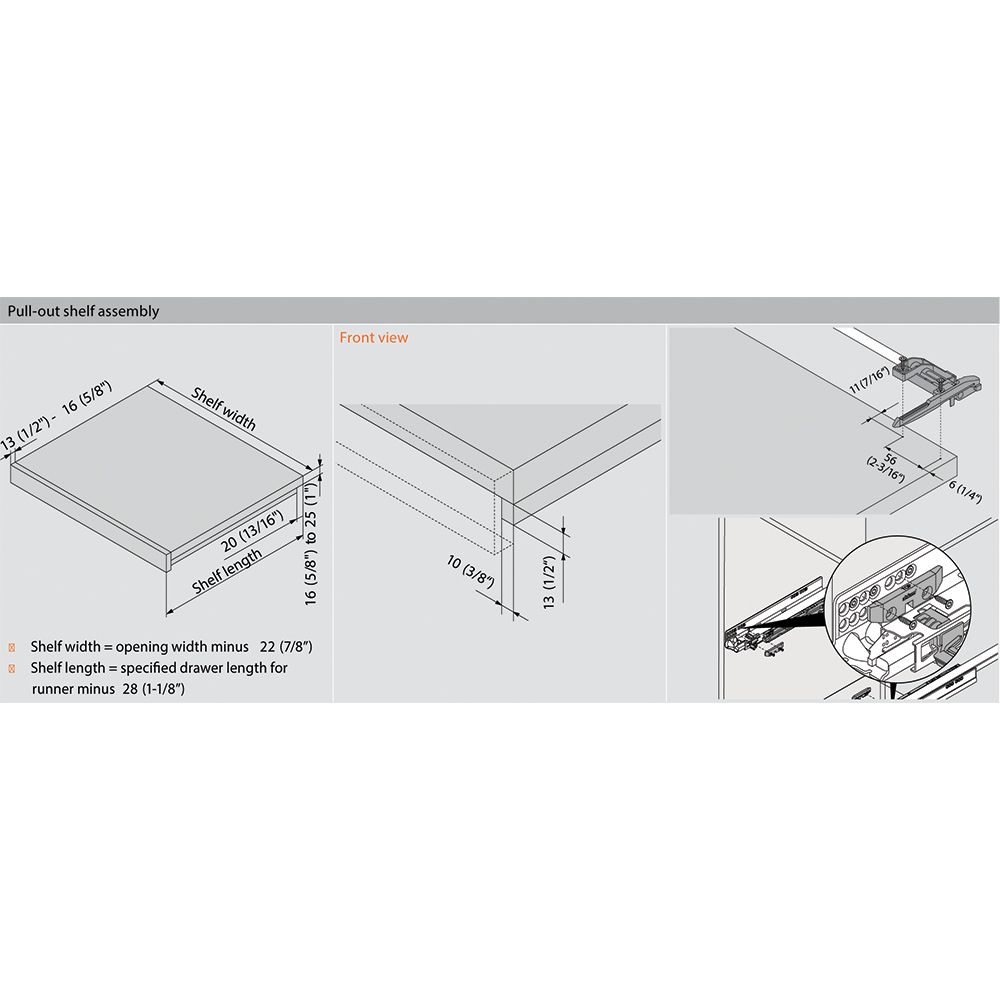

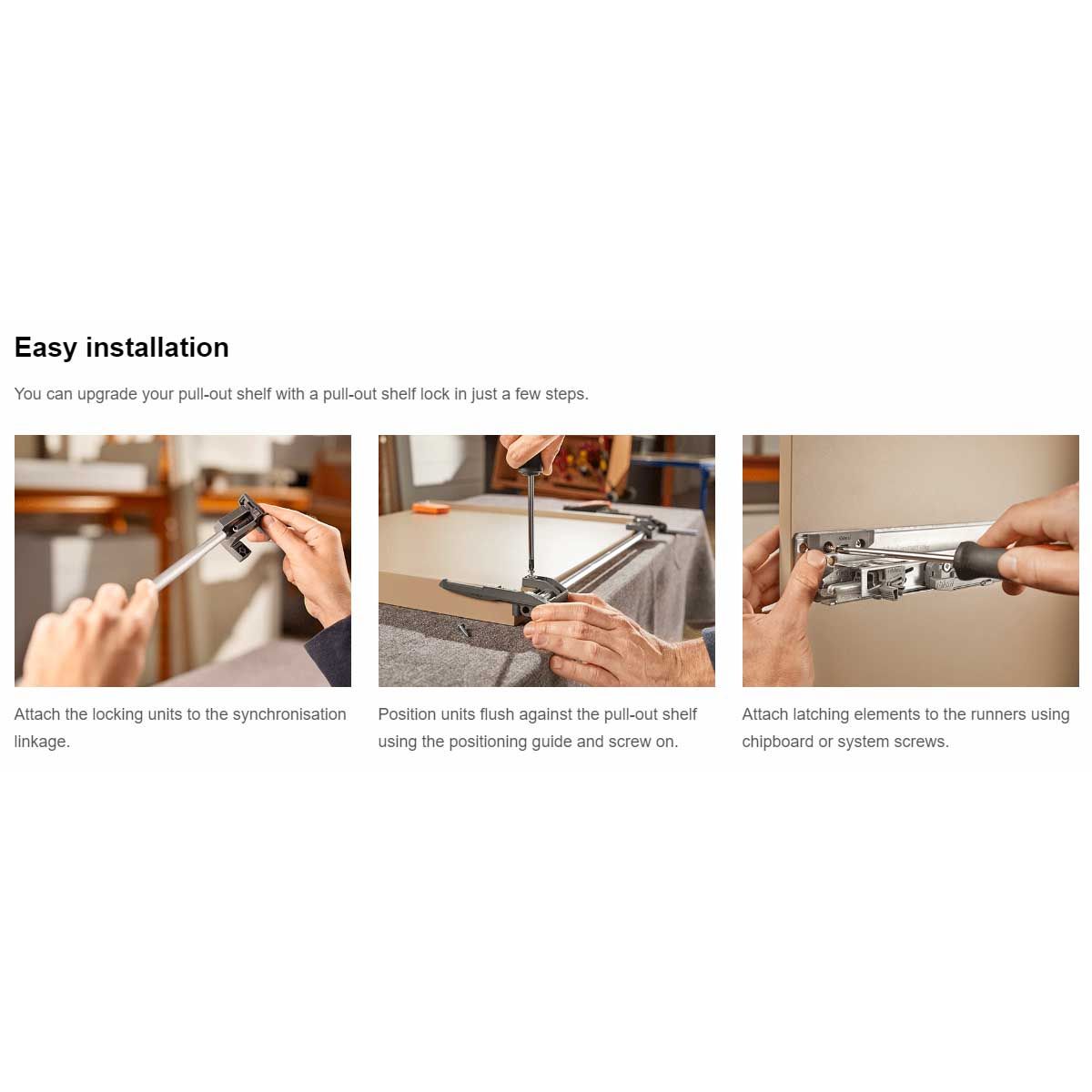

BLUM Shelf Lock Set 295H5700 OG offers a reliable solution for securing pull-out shelves with remarkable ease. Designed specifically for TANDEM 563H/569H and all MOVENTO runners, this shelf lock set seamlessly integrates with your existing cabinetry. The two-sided locking mechanism provides a secure hold while allowing for effortless release from either side of the shelf with just one hand. Installation is straightforward, thanks to the self-aligning components that require no alterations to the runner installation process. The set includes two locking units that can be installed with wood screws and two latches that accommodate either wood or system screws. This thoughtful design ensures that the lock set can be easily integrated into your current manufacturing workflow. With an aluminum length of 42-7/8", it can be cut to the desired size, accommodating opening widths from a minimum of 212mm (8-3/8") to a maximum of 1176mm (46-5/16"). Note that this system is not designed to work with the 9" TANDEMS Synchronization Rod. Ideal for building professionals and knowledgeable homeowners alike, the BLUM Shelf Lock Set 295H5700 OG combines functionality with ease of use, making it a valuable addition to any cabinetry project.
Blum Shelf Lock Set 295H5700 OG
Length: 0
Manufacturer: Blum
Monthly Special: No
Type: Undermount Drawer Slide
Upc: 9009494446951
Weight: 0.260000
