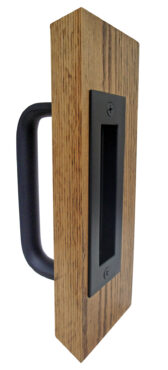

Burns 2521A Barn Door Pull Set is designed for barn doors. The flush pull face dimensions are 2-1/2 x 7. The grip dimensions are center-to-center 6, overall length 6-1/2, and projection 2-1/8. The mortise size is 2 x 5-1/4 x 7/8 deep with a 1/4 Ø radius. Mounting options can be specified when ordering. Specified fastener: Type 1 (1/4-20) x 2-1/4 Thru Bolt.
Barn Door Pull Set
Fasteners: Type 1 (1/4-20) x 2-1/4 Thru Bolt
Finishes: US3-2/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Flush_pull_face_dimensions: 2-1/2" x 7"
Grip_dimensions: 6" C.C. x 6-1/2" O.A. x 2-1/8" Projection
Mortise_size: 2" x 5-1/4" x 7/8" deep x 1/4" Ø radius
