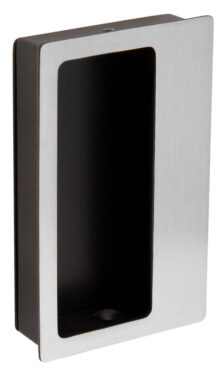

Burns 457 Flush Pull Concealed in Cup is designed for a sleek and unobtrusive appearance. The material size is 1-15/16" × 3" x 5/8". The opening dimensions are 7/8" × 2-3/8". The projection is 3/32". Specified fastener: #8 × 1" Oval Head Sheet Metal Screws. Mounting options can be specified when ordering. ANSI/BHMA A156.6 Type J403.
Flush Pull Concealed in Cup
Ansi: J403
Finishes: US10B/613 – Dark Bronze Oxidized US2-6/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated Flat Black Powder Coat
Material_size: 1-15/16" × 3" x 5/8"
Opening: 7/8" × 2-3/8"
Projection: 3/32"
Standard_fasteners: #8 × 1" Oval Head Sheet Metal Screws
