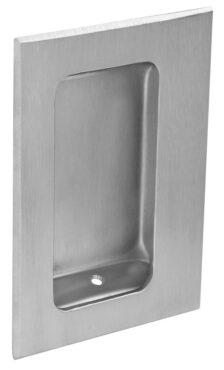

Burns 459C Flush Pull Concealed in Cup is designed for easy access on sliding doors. Overall length: 3-3/8" x 4-3/4"; opening: 1-3/4" x 3-1/2"; projection: 1/8". Specified fastener: #6 x 5/8" Sheet Metal Screws. Mounting options can be specified when ordering. ANSI/BHMA A156.6 Type J403.
Flush Pull Concealed in Cup
Ansi: J403
Finishes: US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US1-0/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US2-6/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US2-8/628 – Satin Anodized Aluminum US3-2/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material_size: 3-3/8" × 4-3/4" x .125
Opening: 1-3/4" × 3-1/2"
Projection: 1/8"
Standard_fasteners: #6 × 5/8" Sheet Metal Screws
