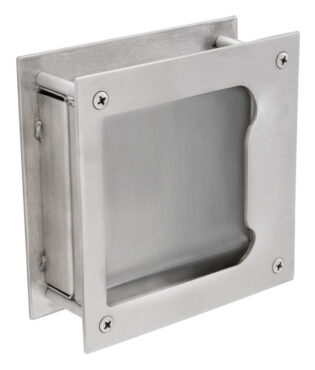

Burns 460BB Flush Pull is a back-to-back handle designed for convenient access. Overall length is 5.5, with an opening measuring 3.5 by 3. Projection is 1/8. The material size is 5 by 5 by .125. Specified fasteners: (8) 8-32 MS and (4) Threaded Sleeves. Mounting options can be specified when ordering. ANSI/BHMA A156.6 Type J403.
Flush Pull 5 × 5 ADA-Back to Back w/Sleeves
Ansi: J403
Fasteners: (8) 8-32 MS and (4) Threaded Sleeves
Finishes: US3-2/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material_size: 5" × 5" x.125
Opening: 3-1/2" × 3"
Projection: 1/8"
