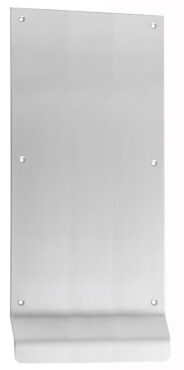

Burns 89-8 Combination Push/Pull is designed for versatile door applications. The base thickness is .125. The overall dimensions are given by the material size of 8 × 15-3/4. The projection is 1. Mounting options can be specified when ordering. Specified fastener: (6) #6 × 5/8" Sheet Metal Screws. ANSI/BHMA A156.6 Type J303.
Combination Push/Pull
Ansi: J303
Base: .125" Thick
Fasteners: (6) #6 × 5/8" Sheet Metal Screws
Finishes: US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US1-0/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US2-6/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US2-8/628 – Satin Anodized Aluminum US3-2/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material_size: 8 × 15-3/4"
Options: Security Fastener #6 × 5/8" Sheet Metal or Machine Screw Thumb Turn Cut Out - 3/8" dia. - TT Cut for Cylinder - 1-1/4" dia. - CC Cut for Rose - 2-1/8" dia - CFR
Projection: 1"
