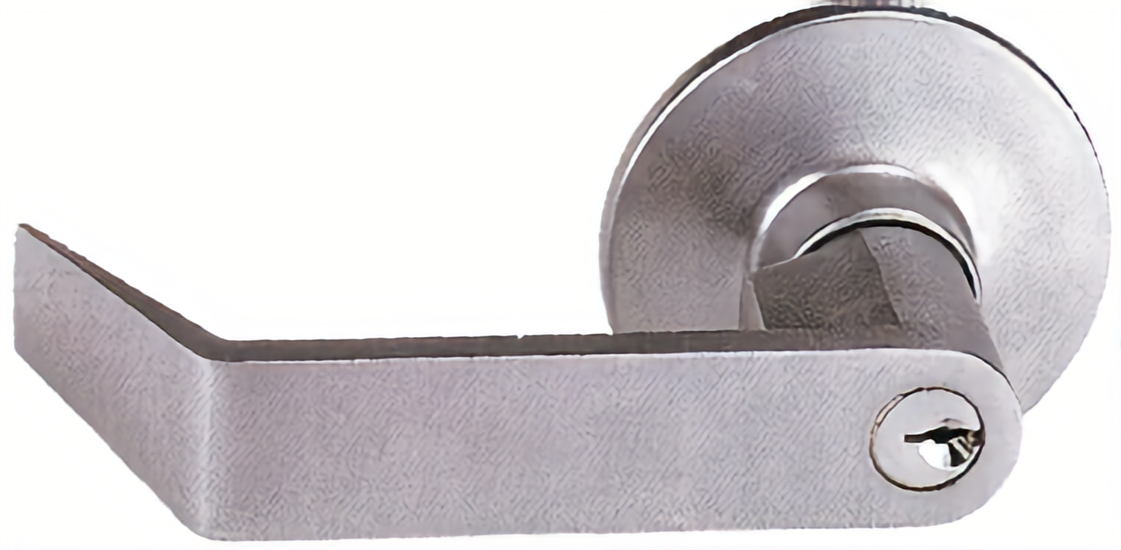

Cal Royal 8000L26D Classroom Lever Trim offers a robust solution for securing commercial and educational environments. Designed with a non-handed Grade 2 lever, it features a tubular body with a hardened steel heavy-duty tailpiece, ensuring durability and reliability. This lever trim is suitable for doors measuring 1-3/4" thick and is compatible with both fire-rated and non-fire-rated rim and vertical rod exit devices. With a 3-1/2" rose diameter and a lever length of 4-3/4", it fits and covers a standard 161 cutout seamlessly. The satin chrome finish (US26D) not only enhances its aesthetic appeal but also provides excellent resistance to wear. It operates under various functions, including the classroom function that allows for key locking and unlocking of the lever, making it ideal for educational settings. The 6-pin solid brass "C" keyway is standard, with options to accommodate high-security cylinders from Medeco, Assa, Kaba, and Cal-Royal HSK. Designed for easy installation and operation, the Cal Royal 8000L26D delivers both security and convenience, making it a valuable addition to your building's access control system. Whether you're upgrading existing hardware or outfitting a new space, this lever trim is engineered to meet your needs effectively.

Classroom Lever Trim, 6-Pin Schlage C Keyway KD, 626/US26D Satin Chrome

Lever Design:

• Non-handed Grade 2 (Optional Clutch)
• Tubular body hardened steel heavy duty tailpiece.
• For 1-3/4" doors. Available for fire and non fire rated rim and vertical rod exit devices.
• Rose diameter 3-1/2" lever length 4-3/4". Fits and covers 161 cutout.
• Finishes: US26D, 10B, 3.
• Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset.
• Keyway: 6 pin solid brass "C" Keyway standard.
• Note: Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.

Functions:

• 8000/L - Entrance
• Key locks and unlocks lever.
• Operates as classroom function.
• ANSI Function - 08
• CLU5000L - Clutch Free Wheeling (Entrance)
• Key locks and unlocks lever.
• Operates as classroom function.
• ANSI Function - 08
• 8000/S - Storeroom
• Key retracts Latch Bolt, otherwise always locked.
• ANSI Function - 04
• 8000/PAS - Passage
• Lever always operable and free
• ANSI Function - 15
• 8000/DUM - Dummy
• Dummy Trim. One sided.
• ANSI Function - 10
• 8000/K - Entrance
• Key locks and unlocks knob.
• Operates as classroom function.
• ANSI Function - 08

Knob Designs:

• Non-handed Grade 2
• Tubular body hardened steel heavy duty tailpiece.
• For 1-3/4" doors. Available for fire and non fire rated rim and vertical rod exit devices.
• Rose diameter 3-1/2". Fits and covers 161 cutout.
• Finishes: US32D, 10B, 3.

Pull Designs:

• 5000 NL
• For Rim Devices Only
• Outside by pull and key.
• Key retracts Latch Bolt.
• ANSI function - 03
• Covers 161 cutout.
• 5000 DTP
• Outside by pull only.
• Pull when dogged.
• ANSI Function - 02
• Covers 161 cutout
• 5000 EOP
• Outside by plate only.
• ANSI function - 10
• Covers 161 cutout.

Features

• Tubular body hardened steel heavy duty tailpiece.
• For 1-3/4" doors. Available for fire and non fire rated rim and vertical rod exit devices.
• Finishes: US26D, 10B, 3.
• Non-handed Grade 2 (Optional Clutch)
• Rose diameter 3-1/2" lever length 4-3/4". Fits and covers 161 cutout.
• Note: Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
• Keyway: 6 pin solid brass "C" Keyway standard.
• Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset.
