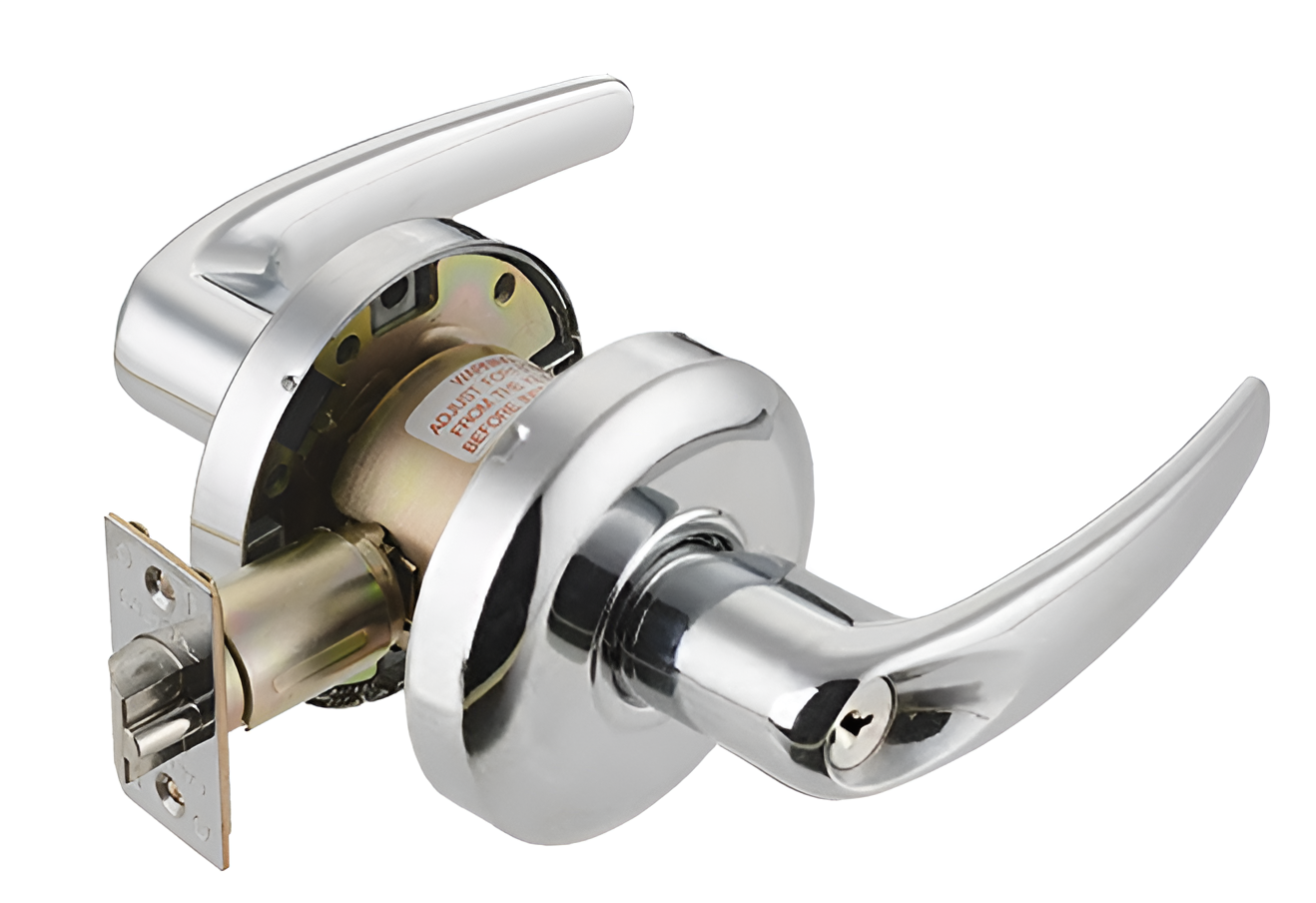

Cal-Royal AG00 US26D 2-3/8 BS Grade 2 Entrance Lever, 6-Pin Schlage C Keyway, 2-3/8" Backset, Satin Chrome

Cal Royal AG00 US26D 2-3/8 BS Entrance Lever delivers robust security and reliability for a variety of applications, including offices, schools, hospitals, and residential buildings. This Grade 2 lever is BHMA Certified and conforms to ANSI A 156.2 Series 4000 standards, ensuring it meets rigorous performance expectations. Constructed with a solid brass 6-pin "C" keyway cylinder, the AG00 lever offers options for interchangeable cores and various keyways, catering to diverse locking needs. Its UL listed 3-hour fire rating and hurricane-approved hardware (Florida Building Code FL13922) make it a dependable choice for safety-conscious environments. Designed for doors ranging from 1-3/8" to 1-3/4" in thickness, it features a 2-3/8" backset with a reversible 1/2" throw solid brass latch bolt, adaptable for both right and left-hand applications. The individual spring on each side minimizes lever sag, promoting longevity and reducing maintenance requirements. Available in a sleek satin chrome finish (626/US26D), the Cal Royal AG00 lever combines aesthetic appeal with functional performance, making it an ideal choice for commercial and residential settings alike. Experience peace of mind with this high-quality entrance lever.

Entrance Lever, Grade 2, 6-Pin Schlage C Keyway KD, 2-3/8in Backset, 626/US26D Satin Chrome

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.

Features:

• BHMA Certified Lifetime Warranty, Grade 2.
• Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free.
• UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997.
• Solid brass 6 pin "C" keyway Cylinder, optional other Keyways.
• Optional Interchangeable Core.
• Optional Clutch System (CSL Series), free turning handle to deter breaking of the handle.
• Optional thru bolt installation.
• Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance.
• Optional Tactile and Lead Lining.
• Hurricane Approved Hardware. Florida Building Code FL13922.
• Meets the Buy American Act.

Specifications:

• Door Ranges: 1-3/8" to 1-3/4" thickness doors.
• Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.
• Latch Bolt: 1/2" Throw solid brass, reversible for RH or LH Applications. UL Listed.
• Latch Faceplate: 2-1/4" x 1-1/8", adjustable for flat or beveled doors 1/8" in 2", for 2-3/4" Backset. Optional 2-1/4" x 1" for 2-3/8" Backset.
• ANSI Standards: Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
• Exposed Trim: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
• Keying: 6-pin "C" keyway Cylinder, 2 keys per lock. Keying as per individual job requirement.
• Cylinder & Keyways: 6 pin solid brass "C" keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
• Clutch: Clutch available on all keyed locks and privacy functions. Prefix "C" before part number.
• Interchangeable Core: Interchangeable Core locks will accept compatible 6 or 7 pin cores with Best, Falcon and Arrow. Prefix "IC" before part number. Available combinated or uncombinated. Temporary construction cores available. Factory Keying with control key and master key available.
• Strikes: ASA strike standard, "T" and full lip strike available on request.
• Tactile & Lead Lining: available upon request.

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Satin Brass
• 609/US5 - Antique Brass
• 612/US10 - Satin Bronze
• 613/US10B - Oil Rubbed Bronze
• 619/US15 - Satin Nickel
• 625/US26 - Polished Chrome
• 626/US26D - Satin Chrome
