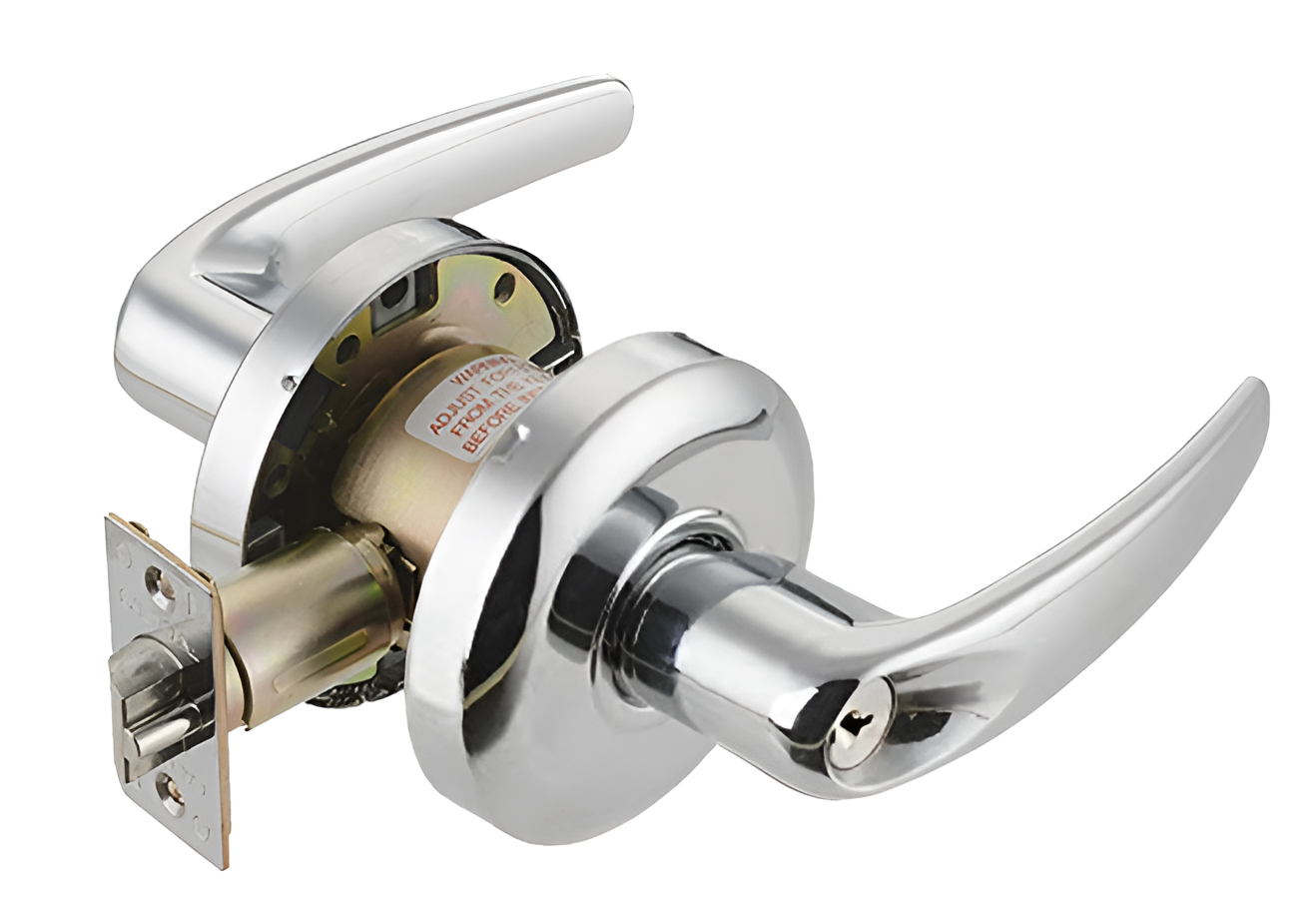

Cal-Royal AG00 US26D Grade 2 Entrance Lever, 6-Pin Schlage C Keyway, Satin Chrome, KD, 2-3/4in

Cal Royal AG00 US26D Entrance Lever offers a robust Grade 2 security solution designed for a variety of applications, including offices, schools, hospitals, and residential buildings. Constructed to accommodate door thicknesses ranging from 1-3/8" to 1-3/4", this lever features a standard 2-3/4" backset, with additional options available to suit specific needs. The latch faceplate is adjustable, allowing for compatibility with both flat and beveled doors. This lock meets or exceeds BHMA/ANSI A156.2 Series 4000 standards, ensuring durability with a performance rating of 400,000 cycles. The exposed trim is available in high-quality materials such as wrought brass, bronze, or stainless steel, while the lever is crafted from zinc casting, plated to match the trim finish. Equipped with a 6-pin Schlage C keyway cylinder, the AG00 US26D comes with two keys and can be customized to meet individual job requirements. The solid brass latch bolt, featuring a 1/2" throw and reversible design for right or left-hand applications, is UL Listed for added safety. With its sleek satin chrome finish and versatile design, the Cal Royal AG00 US26D Entrance Lever is an excellent choice for both commercial and residential security needs.

Entrance Lever, Grade 2, 6-Pin Schlage C Keyway KD, 2-3/4in Backset, 626/US26D Satin Chrome

Specifications:

• Applications: For offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings.
• Door Ranges: 1-3/8" to 1-3/4" thickness doors.
• Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.
• Latch Faceplate: 2-1/4" x 1-1/8" adjustable for flat or beveled doors 1/8" in 2", for 2-3/4" Backset. Optional 2-1/4" x 1" for 2-3/8" Backset.
• Strikes: ASA strike standard, "T" and full lip strike available on request.
• ANSI Standards: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
• Exposed Trim: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
• Keying: 6 Pin "C" keyway Cylinder, 2 keys per lock. Keying as per individual job requirement.
• Cylinder & Keyways:
• 6 pin solid brass "C" keyway standard.
• Schlage E
• Schlage C-K
• Russwin D1-2-3-4
• Corbin 59/60
• Corbin-Russwin L4
• Sargent LA-LB-LC
• Falcon/Weiser E
• Arrow A
• Yale 8
• Yale GA and Kwikset.
• Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
• Clutch: Clutch available on all keyed locks and privacy functions. Prefix "C" before part number.
• Tactile & Lead Lining: available upon request.
• Interchangeable Core: Interchangeable Core locks will accept compatible 6 or 7 pin cores with Best, Falcon and Arrow. Prefix "IC" before part number. Available combinated or uncombinated Temporary construction cores available. Factory Keying with control key and master key available.
• Latch Bolt: 1/2" Throw solid brass, reversible for RH or LH Applications. UL Listed

Finishes:

• 605 US3 Polished Brass
• 606 US4 Satin Brass
• 609 US5 Antique Brass
• 612 US10 Satin Bronze
• 613 US10B Oil Rubbed Bronze
• 619 US15 Satin Nickel
• 625 US26 Polished Chrome
• 626 US26D Satin Chrome

Features

• Exposed Trim: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
• Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.
• Yale 8
• Strikes: ASA strike standard, "T" and full lip strike available on request.
• Cylinder & Keyways:
• Corbin-Russwin L4
• Russwin D1-2-3-4
• Latch Bolt: 1/2" Throw solid brass, reversible for RH or LH Applications. UL Listed
• Schlage C-K
• Interchangeable Core: Interchangeable Core locks will accept compatible 6 or 7 pin cores with Best, Falcon and Arrow. Prefix "IC" before part number. Available combinated or uncombinated Temporary construction cores available. Factory Keying with control key and master key available.
• Falcon/Weiser E
• Door Ranges: 1-3/8" to 1-3/4" thickness doors.
• Latch Faceplate: 2-1/4" x 1-1/8" adjustable for flat or beveled doors 1/8" in 2", for 2-3/4" Backset. Optional 2-1/4" x 1" for 2-3/8" Backset.
• Keying: 6 Pin "C" keyway Cylinder, 2 keys per lock. Keying as per individual job requirement.
• Yale GA and Kwikset.
• Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
• Schlage E
• Sargent LA-LB-LC
• Arrow A
• 6 pin solid brass "C" keyway standard.
• Applications: For offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings.
• Corbin 59/60
• ANSI Standards: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
• Clutch: Clutch available on all keyed locks and privacy functions. Prefix "C" before part number.
• Tactile & Lead Lining: available upon request.

Resources

• Cut Sheet
