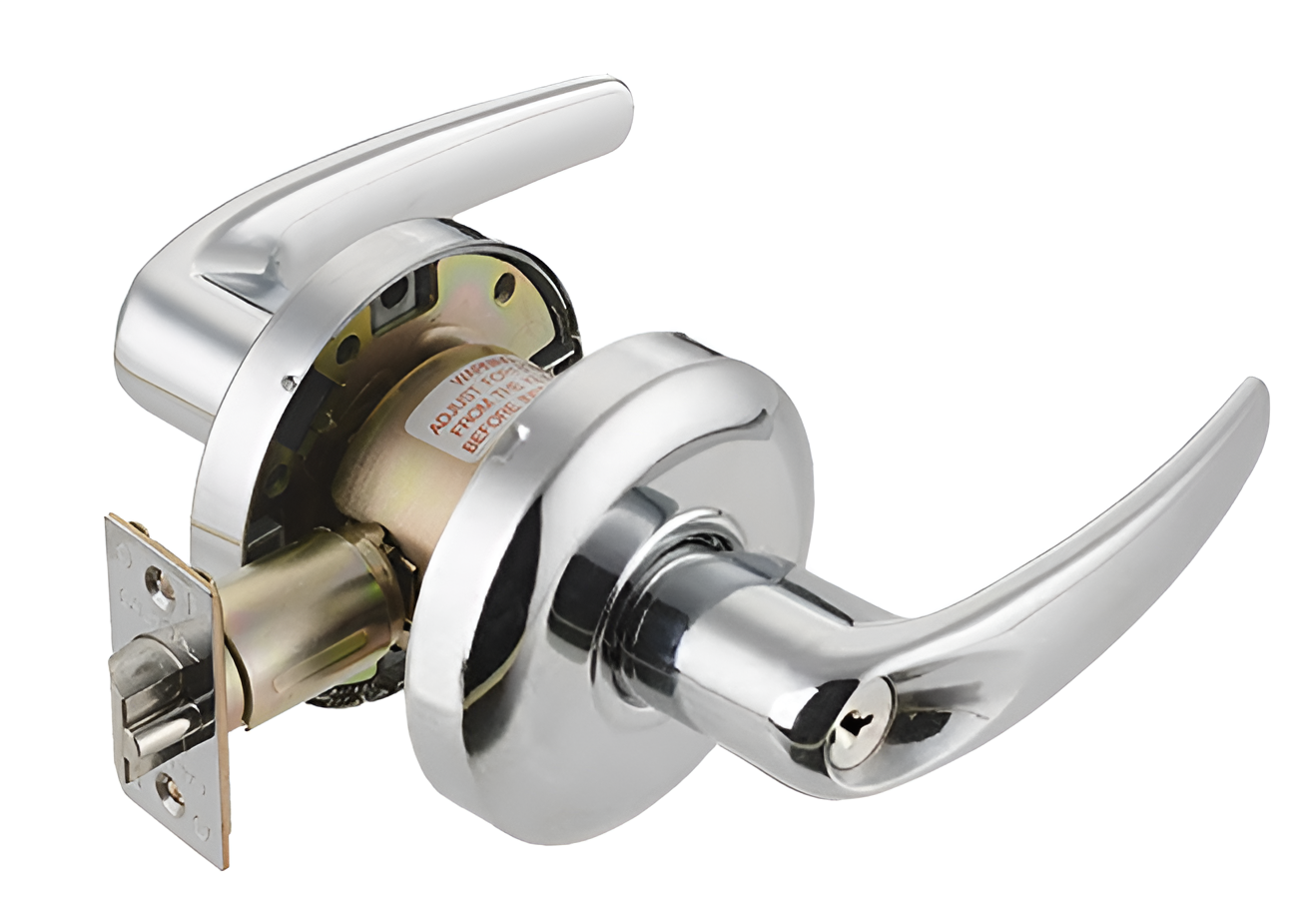

Cal-Royal AG03 US26D Classroom Lever, Grade 2, 6-Pin Schlage C Keyway, Satin Chrome, 2-3/4in Backset

Cal Royal AG03 US26D Classroom Lever offers a blend of security and functionality, making it an ideal choice for a range of applications including offices, schools, hospitals, and commercial buildings. Designed to fit doors with thicknesses ranging from 1-3/8" to 1-3/4", this Grade 2 lever lock features a standard 2-3/4" backset, with options for 2-3/8", 3-3/4", and 5". The adjustable latch faceplate measures 2-1/4" x 1-1/8", accommodating both flat and beveled doors. It comes with a solid brass latch bolt that has a 1/2" throw and is reversible for right or left-hand applications. Built to meet the demands of busy environments, this lock surpasses ANSI/BHMA A156.2 standards with a durability rating of 400,000 cycles. The AG03 lever is available in a sleek satin chrome finish (US26D) and incorporates a 6-pin Schlage C keyway cylinder, providing two keys per lock. Its non-handed design ensures ease of installation, while optional features like a clutch mechanism and interchangeable core enhance versatility. With a striking aesthetic and robust construction, the Cal Royal AG03 lever lock is a reliable solution for securing your spaces.

Classroom Lever, Grade 2, 6-Pin Schlage C Keyway KD, 2-3/4in Backset, 626/US26D Satin Chrome

Specifications:

• Applications: For offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings.
• Door Ranges: 1-3/8" to 1-3/4" thickness doors.
• Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.
• Latch Faceplate: 2-1/4" x 1-1/8" adjustable for flat or beveled doors 1/8" in 2", for 2-3/4" Backset. Optional 2-1/4" x 1" for 2-3/8" Backset.
• Strikes: ASA strike standard, "T" and full lip strike available on request.
• ANSI Standards: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
• Exposed Trim: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
• Keying: 6 Pin "C" keyway Cylinder, 2 keys per lock. Keying as per individual job requirement.
• Cylinder & Keyways:
• 6 pin solid brass "C" keyway standard.
• Schlage E
• Schlage C-K
• Russwin D1-2-3-4
• Corbin 59/60
• Corbin-Russwin L4
• Sargent LA-LB-LC
• Falcon/Weiser E
• Arrow A
• Yale 8
• Yale GA and Kwikset.
• Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
• Clutch: Clutch available on all keyed locks and privacy functions. Prefix "C" before part number.
• Tactile & Lead Lining: available upon request.
• Interchangeable Core: Interchangeable Core locks will accept compatible 6 or 7 pin cores with Best, Falcon and Arrow. Prefix "IC" before part number. Available combinated or uncombinated Temporary construction cores available. Factory Keying with control key and master key available.
• Latch Bolt: 1/2" Throw solid brass, reversible for RH or LH Applications. UL Listed

Finishes:

• 605 US3 Polished Brass
• 606 US4 Satin Brass
• 609 US5 Antique Brass
• 612 US10 Satin Bronze
• 613 US10B Oil Rubbed Bronze
• 619 US15 Satin Nickel
• 625 US26 Polished Chrome
• 626 US26D Satin Chrome

Features

• Exposed Trim: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
• Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.
• Yale 8
• Strikes: ASA strike standard, "T" and full lip strike available on request.
• Cylinder & Keyways:
• Corbin-Russwin L4
• Russwin D1-2-3-4
• Latch Bolt: 1/2" Throw solid brass, reversible for RH or LH Applications. UL Listed
• Schlage C-K
• Interchangeable Core: Interchangeable Core locks will accept compatible 6 or 7 pin cores with Best, Falcon and Arrow. Prefix "IC" before part number. Available combinated or uncombinated Temporary construction cores available. Factory Keying with control key and master key available.
• Falcon/Weiser E
• Door Ranges: 1-3/8" to 1-3/4" thickness doors.
• Latch Faceplate: 2-1/4" x 1-1/8" adjustable for flat or beveled doors 1/8" in 2", for 2-3/4" Backset. Optional 2-1/4" x 1" for 2-3/8" Backset.
• Keying: 6 Pin "C" keyway Cylinder, 2 keys per lock. Keying as per individual job requirement.
• Yale GA and Kwikset.
• Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
• Schlage E
• Sargent LA-LB-LC
• Arrow A
• 6 pin solid brass "C" keyway standard.
• Applications: For offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings.
• Corbin 59/60
• ANSI Standards: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
• Clutch: Clutch available on all keyed locks and privacy functions. Prefix "C" before part number.
• Tactile & Lead Lining: available upon request.

Resources

• Cut Sheet
