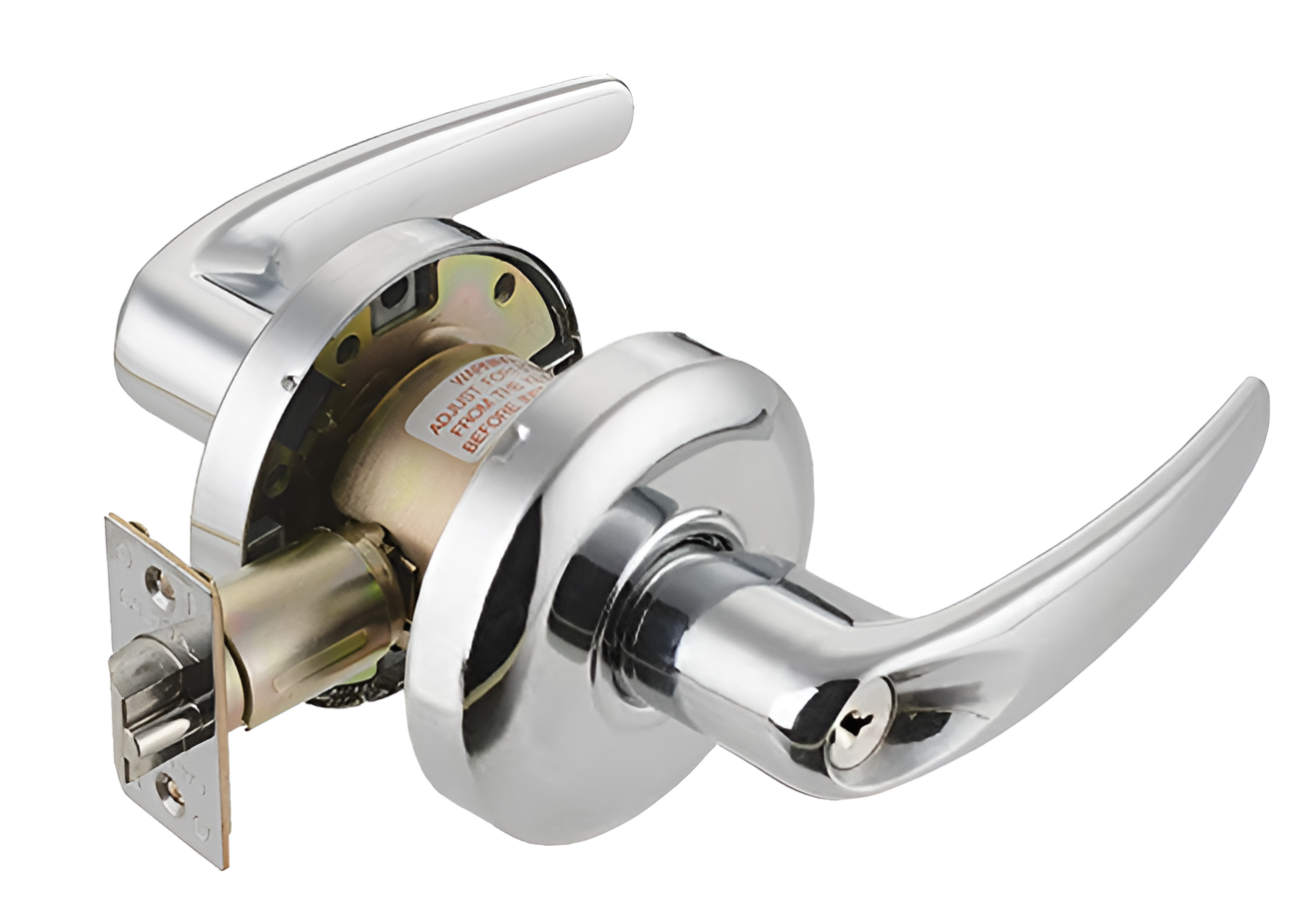

Cal-Royal AG05 US26D Grade 2 Storeroom Lever, 6-Pin Schlage C Keyway, 2-3/4in Backset, Satin Chrome

Cal Royal AG05 US26D Storeroom Lever offers exceptional security and accessibility, making it an ideal choice for a variety of applications including offices, schools, hospitals, and residential buildings. This Grade 2 lever lock features a durable 6-pin Schlage C keyway cylinder, ensuring reliable performance with 400,000 cycles as per ANSI/BHMA A156.2 standards. Designed to accommodate doors with thicknesses ranging from 1-3/8" to 1-3/4", the AG05 comes with a standard 2-3/4" backset, with additional options available. Its adjustable latch faceplate fits both flat and beveled doors, while the solid brass latch bolt boasts a 1/2" throw, providing enhanced security. The lock's non-handed design makes installation straightforward, and it features an aesthetically pleasing satin chrome finish that complements various interiors. With options for interchangeable cores and the ability to accept various keyways-including Medeco and Kaba-this storeroom lever lock is both versatile and user-friendly. The AG05 also allows for customization with clutch functions and tactile lining upon request. Whether for commercial or public buildings, the Cal Royal AG05 US26D Storeroom Lever delivers the perfect blend of security, convenience, and style.

Storeroom Lever, Grade 2, 6-Pin Schlage C Keyway KD, 2-3/4in Backset, 626/US26D Satin Chrome

Specifications:

• Applications: For offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings.
• Door Ranges: 1-3/8" to 1-3/4" thickness doors.
• Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.
• Latch Faceplate: 2-1/4" x 1-1/8" adjustable for flat or beveled doors 1/8" in 2", for 2-3/4" Backset. Optional 2-1/4" x 1" for 2-3/8" Backset.
• Strikes: ASA strike standard, "T" and full lip strike available on request.
• ANSI Standards: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
• Exposed Trim: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
• Keying: 6 Pin "C" keyway Cylinder, 2 keys per lock. Keying as per individual job requirement.
• Cylinder & Keyways:
• 6 pin solid brass "C" keyway standard.
• Schlage E
• Schlage C-K
• Russwin D1-2-3-4
• Corbin 59/60
• Corbin-Russwin L4
• Sargent LA-LB-LC
• Falcon/Weiser E
• Arrow A
• Yale 8
• Yale GA and Kwikset.
• Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
• Clutch: Clutch available on all keyed locks and privacy functions. Prefix "C" before part number.
• Tactile & Lead Lining: available upon request.
• Interchangeable Core: Interchangeable Core locks will accept compatible 6 or 7 pin cores with Best, Falcon and Arrow. Prefix "IC" before part number. Available combinated or uncombinated Temporary construction cores available. Factory Keying with control key and master key available.
• Latch Bolt: 1/2" Throw solid brass, reversible for RH or LH Applications. UL Listed

Finishes:

• 605 US3 Polished Brass
• 606 US4 Satin Brass
• 609 US5 Antique Brass
• 612 US10 Satin Bronze
• 613 US10B Oil Rubbed Bronze
• 619 US15 Satin Nickel
• 625 US26 Polished Chrome
• 626 US26D Satin Chrome

Features

• Exposed Trim: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
• Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.
• Yale 8
• Strikes: ASA strike standard, "T" and full lip strike available on request.
• Cylinder & Keyways:
• Corbin-Russwin L4
• Russwin D1-2-3-4
• Latch Bolt: 1/2" Throw solid brass, reversible for RH or LH Applications. UL Listed
• Schlage C-K
• Interchangeable Core: Interchangeable Core locks will accept compatible 6 or 7 pin cores with Best, Falcon and Arrow. Prefix "IC" before part number. Available combinated or uncombinated Temporary construction cores available. Factory Keying with control key and master key available.
• Falcon/Weiser E
• Door Ranges: 1-3/8" to 1-3/4" thickness doors.
• Latch Faceplate: 2-1/4" x 1-1/8" adjustable for flat or beveled doors 1/8" in 2", for 2-3/4" Backset. Optional 2-1/4" x 1" for 2-3/8" Backset.
• Keying: 6 Pin "C" keyway Cylinder, 2 keys per lock. Keying as per individual job requirement.
• Yale GA and Kwikset.
• Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
• Schlage E
• Sargent LA-LB-LC
• Arrow A
• 6 pin solid brass "C" keyway standard.
• Applications: For offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings.
• Corbin 59/60
• ANSI Standards: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
• Clutch: Clutch available on all keyed locks and privacy functions. Prefix "C" before part number.
• Tactile & Lead Lining: available upon request.
