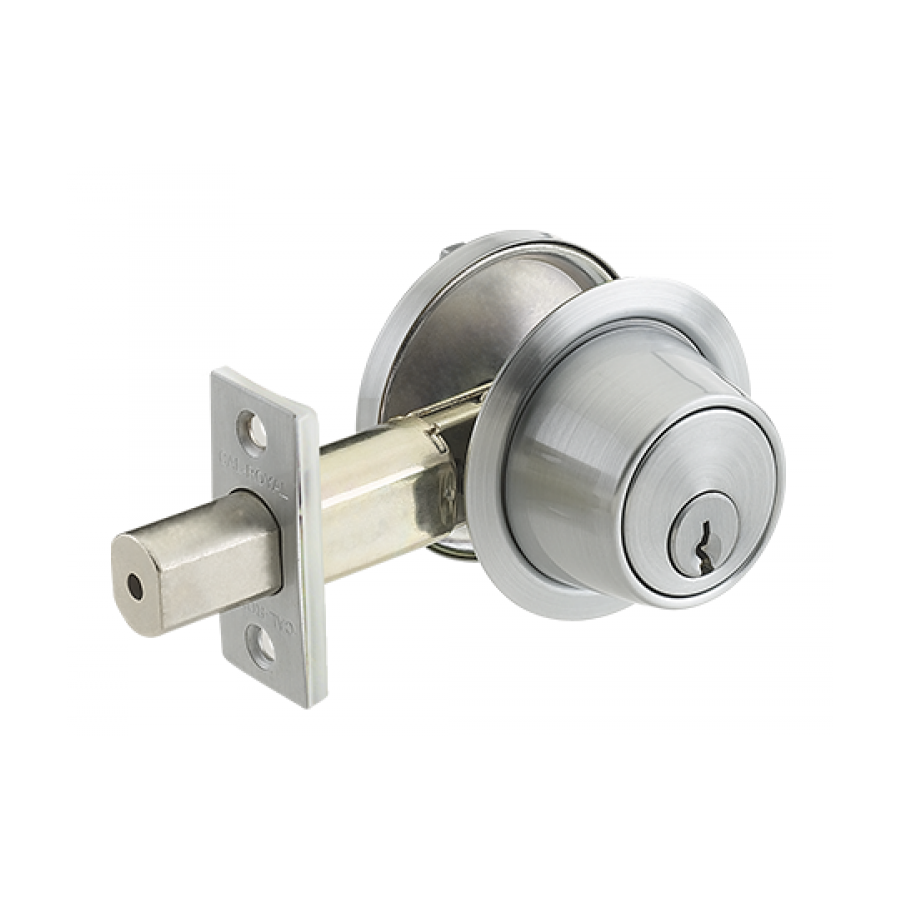

Cal-Royal CB160-US15 Grade 2 Single Cylinder Deadbolt, Schlage C Keyway, Satin Nickel, Adjustable Backset

Cal Royal CB160-US15 Single Cylinder Deadbolt combines robust security with elegant design, making it an ideal choice for both residential and commercial applications. This Grade 2 deadbolt features a 6-pin Schlage C keyway, ensuring high resistance against unauthorized access. The adjustable backset accommodates both 2-3/8" and 2-3/4" configurations, providing versatility for various door installations. Designed for doors ranging from 1-3/8" to 1-3/4" in thickness, the CB160's standard 2-1/4" x 1" faceplate comes with a plastic filler that allows for easy adaptation to 1-1/8" wide door preparations. With a bore diameter of 2-1/8" for the lock housing, installation is straightforward and efficient. The deadbolt operates smoothly, thrown or retracted by a key from the outside and an inside thumb turn, automatically deadlocking when fully engaged for enhanced safety. Available in a sleek satin nickel finish (US15), it complements a variety of architectural styles. This durable lock is non-handed, making it suitable for any door orientation, and its square corner strike adds a refined touch. Whether upgrading your security system or ensuring the safety of your property, the Cal Royal CB160-US15 provides peace of mind without compromising on style.

Single Cylinder Deadbolt, Grade 2, 6-Pin Schlage C Keyway KD, Adjustable 2-3/8in-2-3/4in Backset, 619/US15 Satin Nickel

Specifications:

• Trim: Wrought Brass or Stainless Steel
• Door Ranges: Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness.
• Backset: Adjustable 2-3/8" or 2-3/4"
• Deadbolt Faceplate: Standard 2-1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1-1/8" wide door preparations.
• Bore Diameter: 1" for latch, 1-1/2" or 2-1/8" for lock housing.
• Strike: 1-1/8" x 2-3/4" Square Corner.
• Keyways: Standard 6-pin solid brass "C" keyway. Optional Schlage C-K composite with "E" keys, Schlage "E", Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA and Yale 8.

Functions:

• CB160: Heavy Duty Single Cylinder Deadbolt. Deadbolt thrown or retracted by key from outside or by inside turn unit. Bolt automatically deadlocks when fully thrown.
• CB162: Heavy Duty Double Cylinder Deadbolt. Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.
• GL160: Single Cylinder Gate Latch (2-3/8" Backset) Dead locking Latch Bolt retracted by key from outside and thumb turn on inside. Otherwise always locked.
• GL162: Double Cylinder Gate Latch (2-3/8" Backset) Dead locking Latch Bolt retracted by key from either side. Otherwise always locked.
• GL160/234: Single Cylinder Gate Latch (2-3/4" Backset) Dead locking Latch Bolt retracted by key from outside and thumb turn on inside. Otherwise always locked.
• GL162/234: Double Cylinder Gate Latch (2-3/4" Backset) Dead locking Latch Bolt retracted by key from either side. Otherwise always locked.

Finishes:

• 605/US3 Polished Brass
• 606/US4 Satin Brass
• 609/US5 Antique Brass
• 612/US10 Satin Bronze
• 613/US10B Oil Rubbed Bronze
• 619/US15 Satin Nickel
• 625/US26 Bright Chrome
• 626/US26D Satin Chrome

Features

• Trim: Wrought Brass or Stainless Steel
• Bore Diameter: 1" for latch, 1-1/2" or 2-1/8" for lock housing.
• Door Ranges: Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness.
• Deadbolt Faceplate: Standard 2-1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1-1/8" wide door preparations.
• Strike: 1-1/8" x 2-3/4" Square Corner.
• Backset: Adjustable 2-3/8" or 2-3/4"
• Keyways: Standard 6-pin solid brass "C" keyway. Optional Schlage C-K composite with "E" keys, Schlage "E", Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA and Yale 8.
