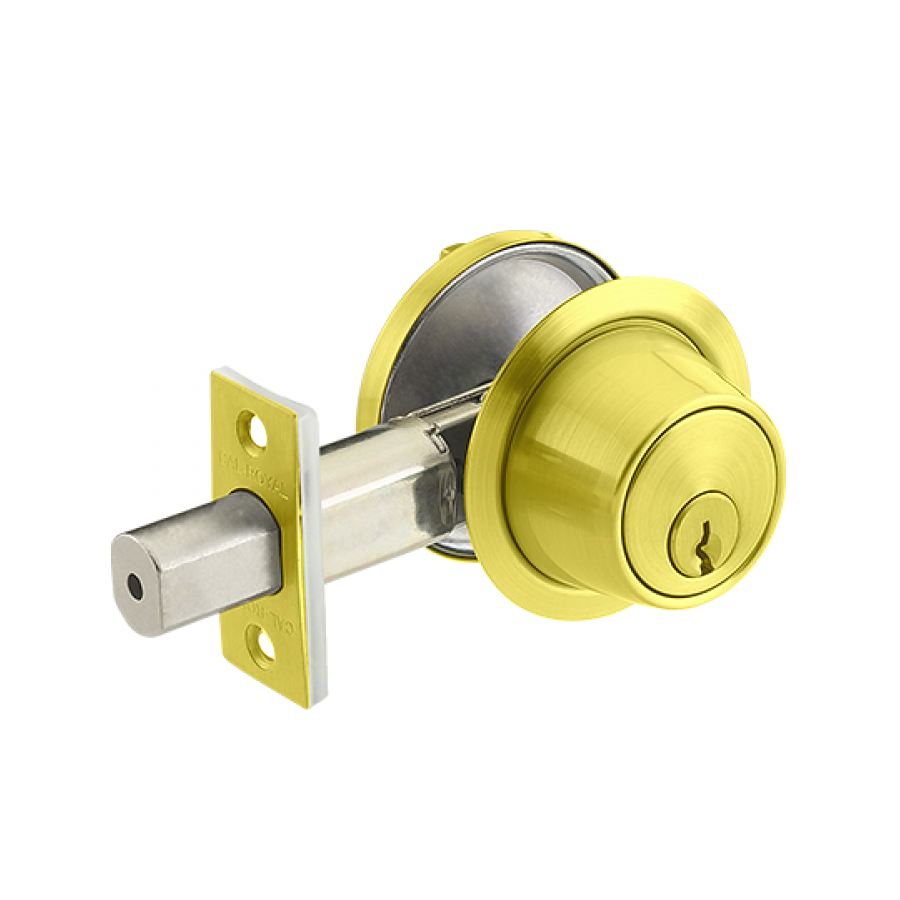

Cal Royal CB160-US3 Single Cylinder Deadbolt offers robust security with its Grade 2 rating and a reliable 6-pin Schlage C keyway for enhanced protection. Designed for versatility, this deadbolt accommodates adjustable backsets of 2-3/8 inches to 2-3/4 inches, making it suitable for various door types. It fits door thicknesses ranging from 1-3/8 inches to 1-3/4 inches, providing flexibility for residential or commercial applications. The deadbolt features a polished brass finish (605/US3), ensuring both durability and aesthetic appeal. Its standard 2-1/4 inches by 1-inch faceplate is equipped with a 1/8-inch plastic filler, allowing compatibility with 1-inch faceplate preparations. The bore diameter is designed at 1 inch for the latch and either 1-1/2 inches or 2-1/8 inches for the lock housing, ensuring a secure and precise fit. With a simple turn of the inside thumb turn or a key from the outside, the deadbolt is easily thrown or retracted, and it automatically deadlocks when fully thrown, adding an extra layer of security. The Cal Royal CB160-US3 is an ideal solution for those seeking reliable, stylish, and versatile locking mechanisms for their properties.

Single Cylinder Deadbolt, Grade 2, 6-Pin Schlage C Keyway KD, Adjustable 2-3/8in-2-3/4in Backset, 605/US3 Bright Brass

Specifications:

• Trim: Wrought Brass or Stainless Steel
• Door Ranges: Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness.
• Backset: Adjustable 2-3/8" or 2-3/4"
• Deadbolt Faceplate: Standard 2-1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1-1/8" wide door preparations.
• Bore Diameter: 1" for latch, 1-1/2" or 2-1/8" for lock housing.
• Strike: 1-1/8" x 2-3/4" Square Corner.
• Keyways: Standard 6-pin solid brass "C" keyway. Optional Schlage C-K composite with "E" keys, Schlage "E", Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA and Yale 8.

Functions:

• CB160: Heavy Duty Single Cylinder Deadbolt. Deadbolt thrown or retracted by key from outside or by inside turn unit. Bolt automatically deadlocks when fully thrown.
• CB162: Heavy Duty Double Cylinder Deadbolt. Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.
• GL160: Single Cylinder Gate Latch (2-3/8" Backset) Dead locking Latch Bolt retracted by key from outside and thumb turn on inside. Otherwise always locked.
• GL162: Double Cylinder Gate Latch (2-3/8" Backset) Dead locking Latch Bolt retracted by key from either side. Otherwise always locked.
• GL160/234: Single Cylinder Gate Latch (2-3/4" Backset) Dead locking Latch Bolt retracted by key from outside and thumb turn on inside. Otherwise always locked.
• GL162/234: Double Cylinder Gate Latch (2-3/4" Backset) Dead locking Latch Bolt retracted by key from either side. Otherwise always locked.

Finishes:

• 605/US3 Polished Brass
• 606/US4 Satin Brass
• 609/US5 Antique Brass
• 612/US10 Satin Bronze
• 613/US10B Oil Rubbed Bronze
• 619/US15 Satin Nickel
• 625/US26 Bright Chrome
• 626/US26D Satin Chrome

Features

• Trim: Wrought Brass or Stainless Steel
• Bore Diameter: 1" for latch, 1-1/2" or 2-1/8" for lock housing.
• Door Ranges: Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness.
• Deadbolt Faceplate: Standard 2-1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1-1/8" wide door preparations.
• Strike: 1-1/8" x 2-3/4" Square Corner.
• Backset: Adjustable 2-3/8" or 2-3/4"
• Keyways: Standard 6-pin solid brass "C" keyway. Optional Schlage C-K composite with "E" keys, Schlage "E", Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA and Yale 8.
