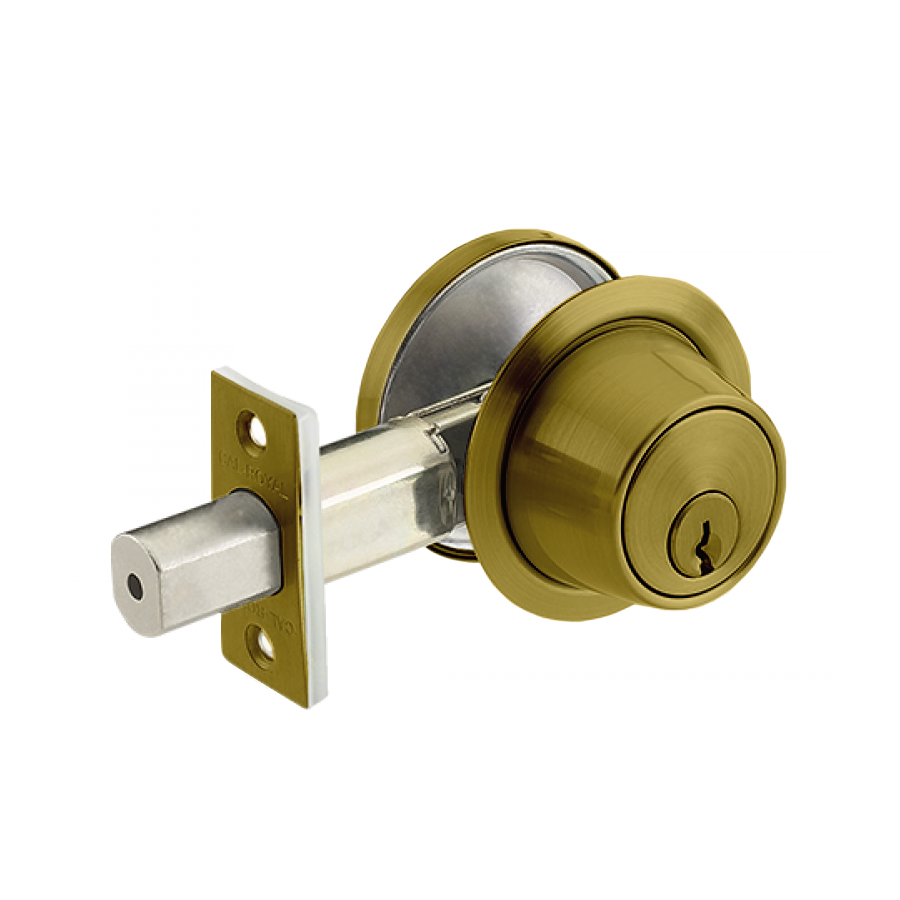

Cal-Royal CB162-US5 Grade 2 Double Cylinder Deadbolt, 6-Pin Schlage C, Antique Brass, Adjustable Backset

Cal Royal CB162-US5 Double Cylinder Deadbolt offers robust security with its Grade 2 rating, making it an ideal choice for both residential and commercial applications. This heavy-duty deadbolt operates using a key from either side, providing enhanced protection against unauthorized entry, particularly in doors with glass panels where access could be gained from the inside. Designed for versatility, the CB162 accommodates adjustable backsets of 2-3/8 inches to 2-3/4 inches and fits door thicknesses ranging from 1-3/8 inches to 1-3/4 inches. The standard deadbolt faceplate measures 2-1/4 inches by 1 inch, and it includes a 1/8-inch plastic filler to adapt to 1-1/8-inch wide door preparations. Its 6-pin solid brass "C" keyway ensures compatibility with a variety of key systems. The deadbolt features a durable antique brass finish (US5), providing a classic look while maintaining resilience against wear. Its non-handed design allows for easy installation on any door configuration. With a standard strike size of 1-1/8 inches by 2-3/4 inches, the CB162 ensures a secure fit, enhancing overall security. Trust in the Cal Royal CB162-US5 to deliver reliability and peace of mind, perfect for those who prioritize safety and style in their locking solutions.

Double Cylinder Deadbolt, Grade 2, 6-Pin Schlage C Keyway KD, Adjustable 2-3/8in-2-3/4in Backset, 609/US5 Antique Brass

Specifications:

• Trim: Wrought Brass or Stainless Steel
• Door Ranges: Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness.
• Backset: Adjustable 2-3/8" or 2-3/4"
• Deadbolt Faceplate: Standard 2-1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1-1/8" wide door preparations.
• Bore Diameter: 1" for latch, 1-1/2" or 2-1/8" for lock housing.
• Strike: 1-1/8" x 2-3/4" Square Corner.
• Keyways: Standard 6-pin solid brass "C" keyway. Optional Schlage C-K composite with "E" keys, Schlage "E", Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA and Yale 8.

Functions:

• CB160: Heavy Duty Single Cylinder Deadbolt. Deadbolt thrown or retracted by key from outside or by inside turn unit. Bolt automatically deadlocks when fully thrown.
• CB162: Heavy Duty Double Cylinder Deadbolt. Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.
• GL160: Single Cylinder Gate Latch (2-3/8" Backset) Dead locking Latch Bolt retracted by key from outside and thumb turn on inside. Otherwise always locked.
• GL162: Double Cylinder Gate Latch (2-3/8" Backset) Dead locking Latch Bolt retracted by key from either side. Otherwise always locked.
• GL160/234: Single Cylinder Gate Latch (2-3/4" Backset) Dead locking Latch Bolt retracted by key from outside and thumb turn on inside. Otherwise always locked.
• GL162/234: Double Cylinder Gate Latch (2-3/4" Backset) Dead locking Latch Bolt retracted by key from either side. Otherwise always locked.

Finishes:

• 605/US3 Polished Brass
• 606/US4 Satin Brass
• 609/US5 Antique Brass
• 612/US10 Satin Bronze
• 613/US10B Oil Rubbed Bronze
• 619/US15 Satin Nickel
• 625/US26 Bright Chrome
• 626/US26D Satin Chrome

Features

• Trim: Wrought Brass or Stainless Steel
• Bore Diameter: 1" for latch, 1-1/2" or 2-1/8" for lock housing.
• Door Ranges: Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness.
• Deadbolt Faceplate: Standard 2-1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1-1/8" wide door preparations.
• Strike: 1-1/8" x 2-3/4" Square Corner.
• Backset: Adjustable 2-3/8" or 2-3/4"
• Keyways: Standard 6-pin solid brass "C" keyway. Optional Schlage C-K composite with "E" keys, Schlage "E", Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA and Yale 8.
