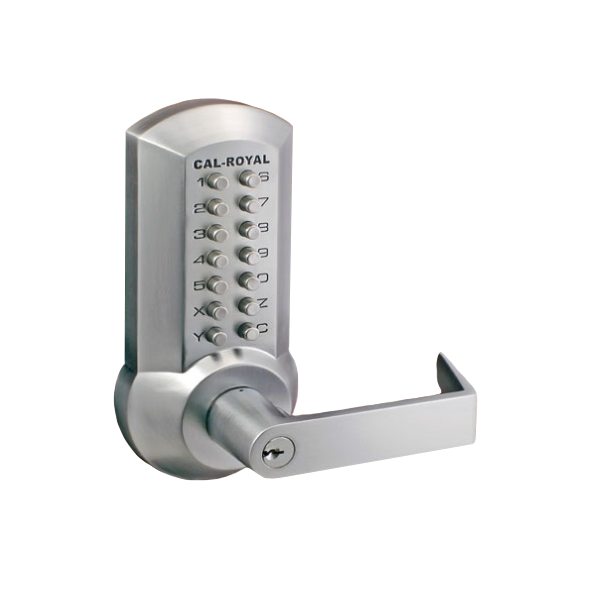

Cal-Royal CRCODE202-US26D Schlage Mechanical Push Button Lock, Storeroom, 1 Code, Grade 2, Satin Chrome

Cal Royal CRCODE202-US26D Mechanical Push Button Lock offers a robust solution for securing various spaces such as offices, schools, and residential properties. With a storeroom function, this lock requires a pre-programmed code of 1 to 12 digits to unlock, providing over 5,000 unique combinations to deter unauthorized access. The convenience of a key override ensures that you’re never locked out, while the ability to change codes without removing the lock enhances usability. Designed with a breakaway lever, the lock remains in a fixed position when forced down, preventing damage and deterring vandalism. Its non-handed design allows for easy installation on doors ranging from 1-3/8" to 2-1/4" thick. The CRCODE202 meets or exceeds ANSI A 156.2 Grade 2 standards, ensuring reliable security. Constructed from durable materials, the satin chrome finish (626/US26D) not only enhances aesthetics but also resists various weather conditions. The lock features a standard 2-3/4" backset and comes with an ASA strike for straightforward installation. Ideal for both commercial and residential applications, the Cal Royal CRCODE202 is a versatile choice for anyone seeking dependable access control.

Mechanical Push Button Lock, Storeroom Function, 1 Entry Code of 1-12 Digits, Clutched, Schlage C Keyway 6-Pin, 2-3/4in BS, Non Handed, ASA Strike, Grade 2, 626/US26D Satin Chrome

Features:

• Easy installation covers
• An entry code can be a combination of 1 to 12 digits long. The digits can be entered in any order. For example, if the chosen 6-digit code is "5283XZ" it can be entered as "ZX3825" or "3X8Z25" or in any other combination of the 6-digit code.
• Only one code combination chosen from thousands of combinations can be set at a time to deter code breakers. Code length is from 1 to 12 digits, and can be permutated with a non-repeating digit up to over 5000 combinations.
• Key override
• Code can be changed without removing the lock from the door and using only a "code change" key.
• Code-free option (passage): Once enabled, the lock remains unlocked until disable passage mode is initiated. (For CRCODE203, inside and outside locks must be set)
• Breakaway lever design: Lever will stay at the 5 o’clock position when forced down without retracting the latch, to prevent breaking of handle and giving the impression of the handle being broken to discourage or scare off vandals.
• Clutch-free mechanism
• Can resist above or below normal weather conditions without compromising security.
• Easily field reversible handing.
• More than 8000 non-sequential
• Possible code combinations

Specifications:

• General: Full length 5-1/2" lever handle with 7/8" return. Escutcheon dimension 3-1/2" x 8-1/8". Key removable outside lever for all models for fast re-keying. Non-handed levers. 2-1/8" diameter bore.
• Breakaway Lever Design: Lever will stay at the 5 o’clock position when forced down without retracting the latch, to prevent breaking of handle and giving the impression of the handle being broken to discourage or scare off vandals.
• Applications: For offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings.
• Door Ranges: 1-3/8" - 2-1/4" for CRCODE202, 1-3/8" - 1-3/4 for CRCODE203, 1-3/4 - 2" for CRCODE204
• ANSI Standards: Meets or exceeds ANSI A 156.2, series 4000 grade 2 requirements.
• Latch Faceplate: Standard 2-1/4" x 1-1/8" for 2-3/4" backset for CRCODE202 and CRCODE203 only.
• Strikes: ASA 1-1/4" x 4-7/8" standard for CRCODE202 and CRCODE203 only. Other strikes available upon request. Strikes for CRCODE204 comes standard with exit device ordered.
• Cylinder and Keyways: 6 pin solid brass "C" keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) high security cylinders.
• Trim: Thru-bolted assembly through door with separate spring cage for each lever
• Latch Options: 2-3/4" standard, brass with 1/2" throw (with optional 2-3/8" backset, 2-1/4" x 1" faceplate) for CRCODE202 and CRCODE203.

Functions:

• CRCODE202:
• Latch bolt operated by lever from either side, except outside has to enter a pre-programmed code on the keypad in order to retract the latch upon turning the lever.
• Default Function: Storeroom
• Optional Function: Passage mode
• Door Thickness: 1-3/8" - 2-1/4"
• CRCODE203:
• Latch bolt operated by lever from either side by entering a pre-programmed code on the keypad in order to retract the latch upon turning the lever. Both lever always locked, unless one or both sides are set to passage mode. If one side is set to passage, function can be storeroom. If both sides are set to code-free, function becomes passage.
• Default Function: Institution
• Optional Functions: Storeroom, passage mode
• Door Thickness: 1-3/4"
• CRCODE203:
• Operated by lever from outside and when push pad is depressed, except outside has to enter a pre-programmed code on the keypad in order to retract the latch upon turning the lever. For use with 2200, 7700 and 9800 series rim and surface vertical rods.
• Universal trim
• Default Function: Storeroom
• Optional Function: Passage mode
• Door Thickness: 1-3/4" - 2"

Finishes:

• 626/US26D - Satin chrome
• 613/US10B - Oil rubbed bronze
