Cal Royal ENT00L26D Clutch Entrance Lever Trim combines functionality and durability in a sleek design, making it an excellent choice for both residential and commercial applications. Constructed with a tubular body and a hardened steel heavy-duty tailpiece, this Grade 2 lever trim is engineered to withstand everyday wear while maintaining a stylish appearance in satin chrome finish. Designed for 1-3/4" doors, the ENT00L26D is available for fire and non-fire-rated rim and vertical rod exit devices. Its 3-1/2" rose diameter and 4-3/4" lever length ensure a comfortable grip and easy operation. Featuring a 6-pin solid brass "C" keyway as standard, it also accommodates various keying options, including Schlage, Russwin, and Medeco, among others. The lever operates in multiple functions, including entrance and clutch free-wheeling, allowing for seamless access control in classroom settings. With its non-handed design, installation is straightforward, ensuring adaptability in various door configurations. Ideal for building professionals and knowledgeable homeowners, the Cal Royal ENT00L26D lever trim provides reliable security solutions without compromising on style or ease of use. Choose this lever trim for a robust and elegant addition to your security hardware.

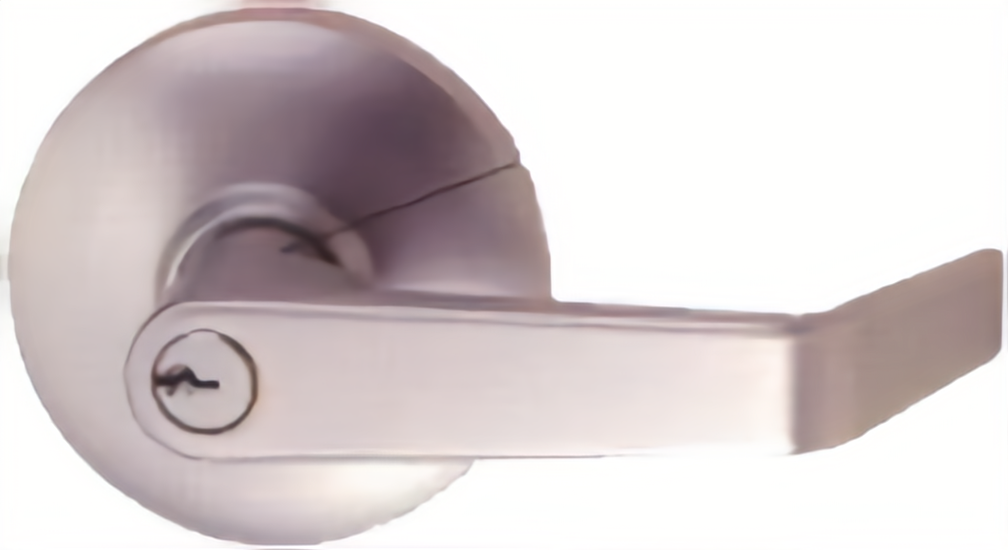

Clutch Entrance Lever Trim, 6-Pin Schlage C Keyway KD, 626/US26D Satin Chrome

Lever Design:

• Non-handed Grade 2 (Optional Clutch)
• Tubular body hardened steel heavy duty tailpiece.
• For 1-3/4" doors. Available for fire and non fire rated rim and vertical rod exit devices.
• Rose diameter 3-1/2" lever length 4-3/4". Fits and covers 161 cutout.
• Keyway: 6 pin solid brass "C" Keyway standard.
• Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset.
• Note: Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
• Finishes: US26D, 10B, 3.

Functions:

• 8000/L - Entrance
• Key locks and unlocks lever.
• Operates as classroom function.
• ANSI Function - 08
• CLU5000L - Clutch Free Wheeling (Entrance)
• Key locks and unlocks lever.
• Operates as classroom function.
• ANSI Function - 08
• 8000/S - Storeroom
• Key retracts Latch Bolt, otherwise always locked.
• ANSI Function - 04
• 8000/PAS - Passage
• Lever always operable and free
• ANSI Function - 15
• 8000/DUM - Dummy
• Dummy Trim. One sided.
• ANSI Function - 10
• 8000/K - Entrance
• Key locks and unlocks knob.
• Operates as classroom function.
• ANSI Function - 08

Knob Design:

• Non-handed Grade 2
• Tubular body hardened steel heavy duty tailpiece.
• For 1-3/4" doors. Available for fire and non fire rated rim and vertical rod exit devices.
• Rose diameter 3-1/2". Fits and covers 161 cutout.
• Finishes: US32D, 10B, 3.

Pull Designs:

• 5000 NL
• For Rim Devices Only
• Outside by pull and key.
• Key retracts Latch Bolt.
• ANSI function - 03
• Covers 161 cutout.
• 5000 DTP
• Outside by pull only.
• Pull when dogged.
• ANSI Function - 02
• Covers 161 cutout
• 5000 EOP
• Outside by plate only.
• ANSI function - 10
• Covers 161 cutout.

Features

• Tubular body hardened steel heavy duty tailpiece.
• For 1-3/4" doors. Available for fire and non fire rated rim and vertical rod exit devices.
• Finishes: US26D, 10B, 3.
• Non-handed Grade 2 (Optional Clutch)
• Rose diameter 3-1/2" lever length 4-3/4". Fits and covers 161 cutout.
• Note: Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
• Keyway: 6 pin solid brass "C" Keyway standard.
• Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset.

Resources

• Cut Sheet
