Cal Royal INDLEV-20 26D Privacy Indicator Leverset combines functionality and style, making it an ideal choice for offices, schools, hospitals, and public restrooms. This standard-duty, commercial-grade leverset features a red (In-Use) and green (Vacant) indicator, ensuring easy visibility for users. Designed for versatile applications, it accommodates adjustable door thicknesses ranging from 1-3/8" to 1-3/4" and comes standard with both 2-3/8" and 2-3/4" backsets. Constructed with a stainless steel rose cover and aluminum lever, the INDLEV-20 not only offers durability but also an elegant aesthetic, available in various architectural finishes including Satin Chrome (US26D), Polished Chrome (US26), Flat Black (US19), Dark Oxidized Satin Bronze (US10B), and Bright Brass (US3). The inside thumbturn provides easy locking and unlocking, while an emergency slot on the outside trim allows for swift access in critical situations. Packed with a standard 2-1/4" x 1" latch faceplate and a plastic filler for 1-1/8" door preparations, this leverset ensures seamless installation. Its reversible handing makes it adaptable for left or right door applications, offering ultimate flexibility for your locking needs. Choose the Cal Royal INDLEV-20 for a secure and stylish solution to your privacy requirements.

Privacy Indicator Leverset, 2-3/8in and 2-3/4in Backset Included, ANSI Strike, 626/US26D Satin Chrome

For Offices, Schools, Hospitals, Commercial, Public Buildings, and Single Stall Public Restrooms.

Features:

• Standard Duty, Commercial Grade Leverset.

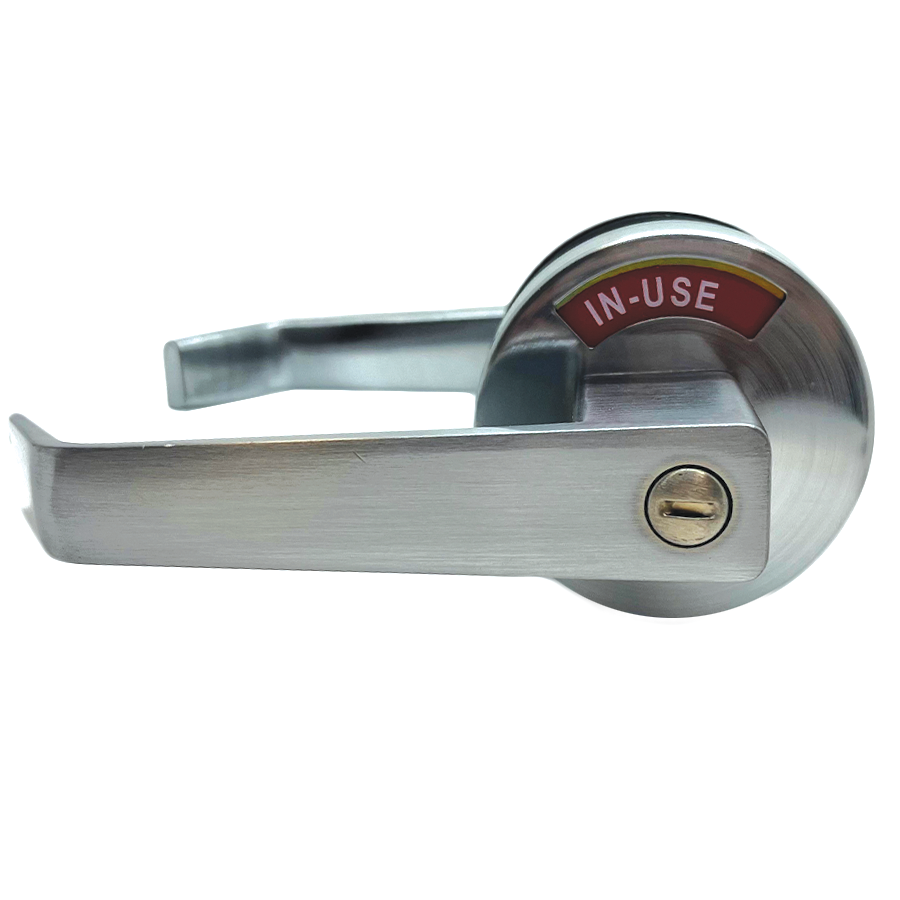

• Red (In-Use) and Green (Vacant) Indicator.
• Available in Architectural Finishes.

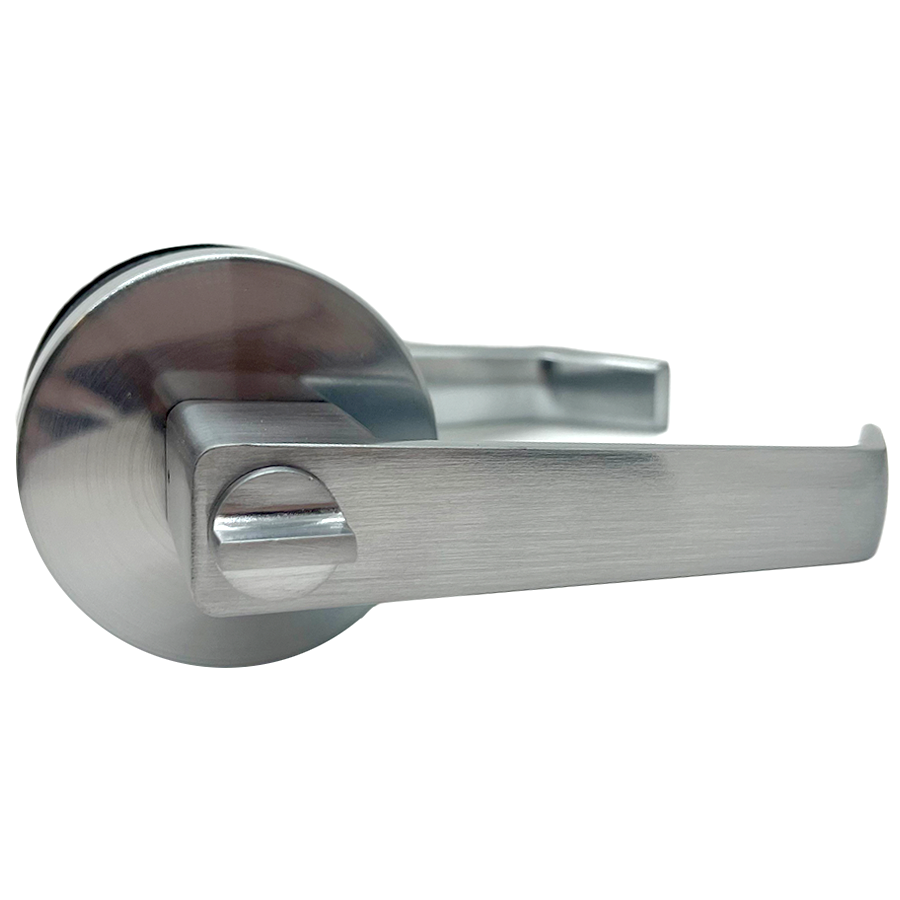

• Inside Thumbturn.
• Emergency Slot available for emergency opening.
• both 2-3/8" Backset and 2-3/4" Backset packed standard.
• Packed with plastic filler for 1-1/8" wide door preparations.

Specifications:

• Trim: Stainless Steel Rose Cover and Aluminum Lever.
• Door Ranges: Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness.
• Backset: Packed Standard with both 2-3/8" and 2-3/4" Backset.
• Latch Faceplate: Standard 2-1/4" x 1" packed with 1-1/8" plastic filler to convert 1" face plate to 1-1/8" wide door preparations.
• Bore Diameter: 1" for latch, 2-1/8" for lock housing.
• Strike: ASA478 ANSI Strike Standard.
• Emergency Slot: It has an emergency slot on the outside Trim to unlock the door in case of emergency.
• Handing: Reversible for left and right door application.

Finishes:

• US26D - Satin chrome
• US26 - Polished chrome
• US19 - Flat black
• US10B - Dark oxidized satin bronze, oil rubbed
• US3 - Bright brass
