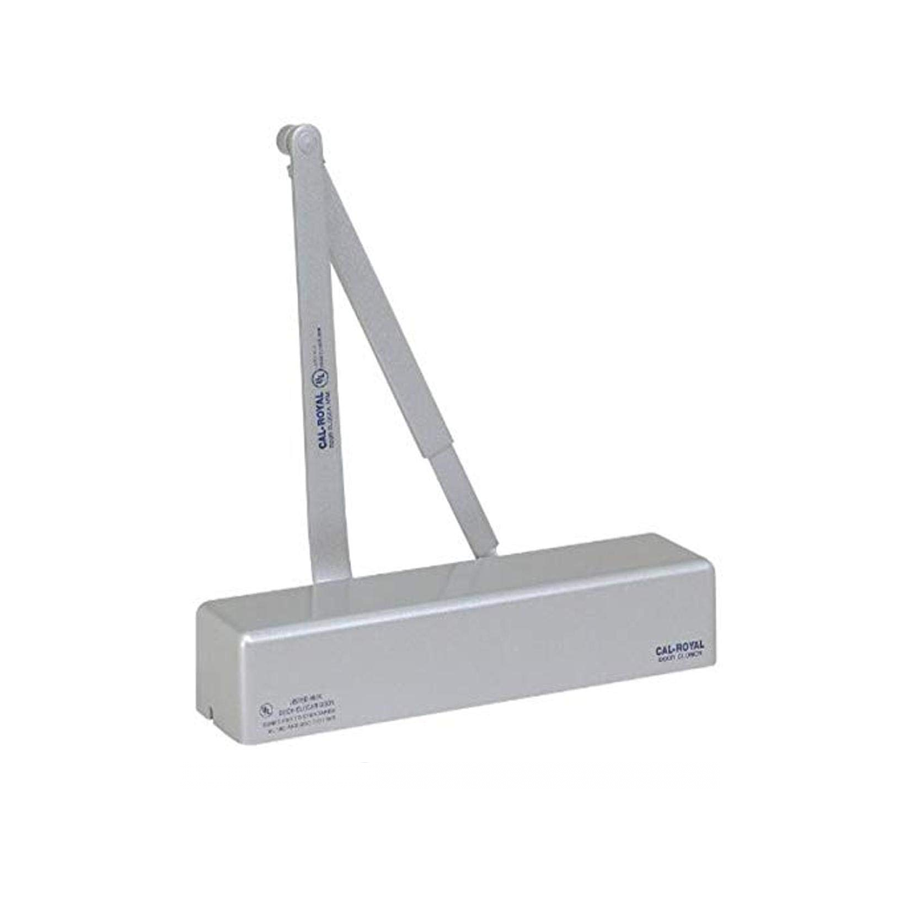

Cal-Royal N900-PBF ALUM Adjustable Delayed Action Closer for Handicapped/Elderly, Aluminum, Size 3

Cal Royal N900-PBF ALUM Optional Adjustable Delayed Action is designed to meet the needs of handicapped or elderly individuals, ensuring ease of use without compromising on safety or functionality. This hydraulic door closer is part of Cal-Royal's finest series, manufactured to the highest industry standards with a Grade 1 rating. It is ANSI A156.4 compliant and UL Listed for fire door assemblies, making it a reliable choice for various applications. The N900 features a non-handed design, allowing for flexible installation as a standard, top jamb, or parallel arm setup. It accommodates door weights between 30-260 lbs and includes an adjustable back-check function to enhance safety. With two separate regulating valves, users can easily adjust closing and latching speeds to suit specific requirements. The optional adjustable delayed action is factory preset for approximately 20 seconds and can be modified up to 1 minute, providing additional time for those in need. It meets ADA regulations, ensuring barrier-free access. Built from durable 628/US28 aluminum, this closer incorporates six secure mounting holes for a reliable fit. Choose Cal Royal N900-PBF ALUM for a heavy-duty, versatile door closer that combines functionality with an elegant finish, suitable for office buildings, shopping centers, and other commercial spaces.

Optional Adjustable Delayed Action for Handicapped or Elderly. Non-Sized, 1 Thru 6 (Factory Preset Size 3). Standard Adjustable Back-Check Function. Closer Body Length = 11-3/4in. Horizontal Mounting Holes = 11-1/8in. Vertical Mounting Holes = 9/16in. 628/US28 Aluminum.

Features:

• Cal-Royal’s Finest Hydraulic Door Closer Series Meeting the Highest Industry Standards Grade 1
• ANSI A156.4 Grade 1: UL Listed for Fire Door Assemblies
• Universal Application. Non-Handed for Standard, Top Jamb, or Parallel Arm Installation.
• Non-Sized, 1 thru 6 FACTORY PRESET SIZE 3
• Door Weights: 30-260 lbs (All Models)
• Standard Adjustable Back-Check Function
• Adjustable Closing and Latching Speed by Two Separate Regulating Valves
• 6 Attaching Holes for Extra Secure Mounting to Door or Frame
• Available in Architectural Finishes (refer to price list for stock finishes)
• Optional Adjustable Delayed Action (DA). Preset at the Factory for Approximately 20 Seconds, Between 70º and 0° Delay Time Easily Adjusted Up to 1 Minute
• Barrier Free (BF) Meets ADA regulation. Size 1 thru 6 Engineered with Reduced Spring Power to Provide Easier Opening for Handicapped or Elderly
• Maximum Opening: 180° (Standard), 120° (Hold Open)
• Heavy-Duty Full Feature Multi-Size Commercial Door Closer for Use In Office Buildings, Shopping Center and Other Commercial Buildings

Arms:

• 900HOSPRING: Super Rigid Parallel Arm Stopper Hold-Open, Non-Handed with Spring Loaded Stop in Soffit Shoe
• 900SPRING: Super Rigid Non-Handed Parallel Arm with Spring Loaded Stop in the Soffit Shoe
• HOSRPS/900: Super Rigid Parallel Arm Stopper Hold-Open, Non-Handed with Stop in Soffit Shoe
• SPAS900: Super Rigid Parallel Arm Stopper, Non-Handed with Stop in Soffit Shoe
• 901/902: Hold-Open Arm with Parallel Bracket, Non-Handed with Stop in Soffit Shoe
• 900EXT: Extended Long Arm ( 3" extension ) for Top Jamb with Deep Reveals
• 945AR: Door Closer Arm (Main and Regular Forearm)
• TRACK/900: Slide Track Arm with Removable Hold-Open

Brackets:

• 904: Parallel Arm Drop Bracket for Non-Hold Open Parallel Arm Applications to Clear a Surface-Applied Stop / Holder
• 905: Parallel Arm Bracket
• 950: Flat Drop Plate for Top Rail less than 3 1/2"
