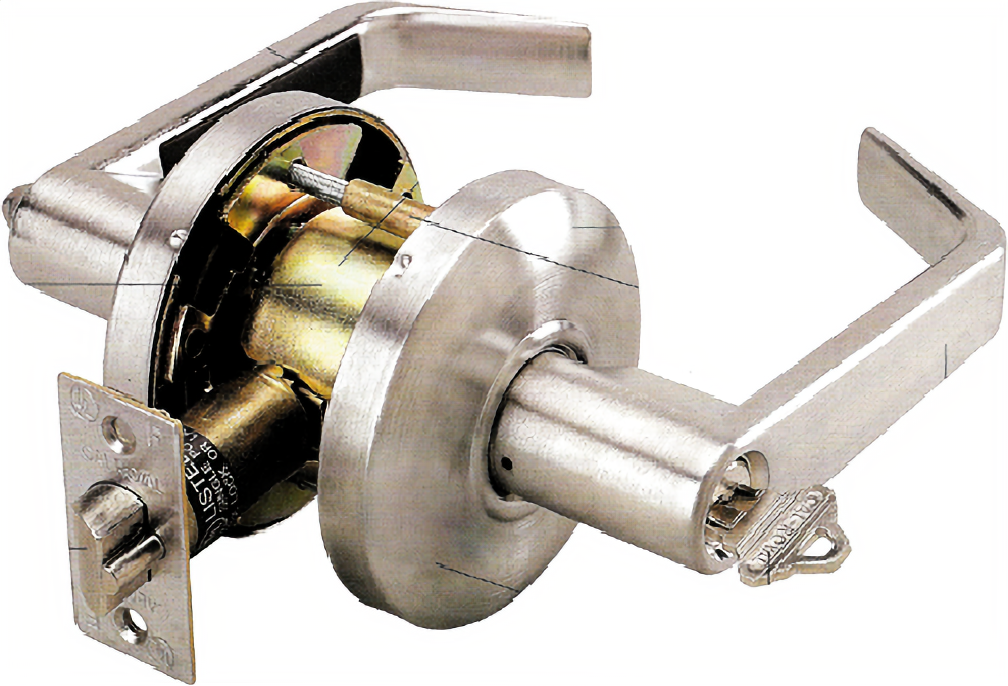

Cal-Royal SL0026D Grade 2 Entrance Lever, 6-Pin Schlage C Keyway, Satin Chrome, KD, 2-3/4in Backset

Cal Royal SL0026D Entrance Lever combines robust security with elegant design, making it an ideal choice for a variety of applications including offices, hospitals, hotels, and residential spaces. This Grade 2 cylindrical lock features a durable 6-pin Schlage C Keyway and is designed to fit doors with a thickness ranging from 1-3/8" to 1-3/4". The standard 2-3/4" backset offers versatility, while optional backsets of 2-3/8", 3-3/4", and 5" ensure compatibility with various door configurations. The SL0026D lever lock showcases a solid brass latch bolt with a 1/2" throw, reversible for right or left-handed applications, and is UL Listed for added reliability. Its sleek satin chrome finish not only enhances aesthetic appeal but also resists wear and corrosion. This product meets or exceeds ANSI/BHMA A156.2 Series 4000 standards, ensuring it can withstand up to 400,000 cycles. The interchangeable core design allows for easy rekeying, making it a practical option for facilities requiring frequent lock changes. With a clutch mechanism available for added security, the Cal Royal SL0026D Entrance Lever is a dependable choice for safeguarding your spaces without compromising style.

Entrance Lever, Grade 2, 6-Pin Schlage C Keyway KD, 2-3/4in Backset, 626/US26D Satin Chrome

Interchangeable Core locks will accept compatible 6 or 7 pin cores with Best, Falcon and Arrow. Prefix "IC" before part. Available combinated or uncombinated. Temporary construction cores available. Factory Keying with control key and master key available. Clutch available on all keyed locks and privacy Functions. Prefix "C" before part number.

Specifications:

• Applications: For offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings.
• Door Ranges: 1-3/8" to 1-3/4" door thickness.
• Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5" Optional.
• Latch Bolt: 1/2" Throw solid brass, reversible for RH or LH Applications. UL Listed.
• Latch Faceplate: 2-1/4" x 1-1/8", adjustable for flat or beveled doors 1/8" in 2", for 2-3/4" Backset.
• Optional 2-1/4" x 1" for 2-3/8"
• ANSI Standards: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
• Exposed Trim: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match Trim finish.
• Keying: 6-pin "C" Keyway Cylinder, 2 keys per lock. Keying as per individual job requirement.
• Cylinder & Keyways: 6 Pin solid brass "C" Keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal(HSK) High Security Cylinders.
• Clutch: Clutch available on all keyed locks and privacy Functions. Prefix "C" before part number.

Functions:

• SL00, ICSL00, CSL00 - Entrance/Office Lock: Turn/Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.
• SL01, ICSLO1, CSL01 - Entrance Lock Push Button: Pushing button in inside lever locks outside lever. Turning inside lever or operating key in outside lever releases button automatically. Closing door does not release button. Button cannot be fixed in lock position. Inside lever always free. Latch Bolt automatically deadlocks when door is closed.
• SL03, ICSLO3, CSL03 - Classroom Lock: Deadlocking Latch Bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, Latch Bolt is operated by turning inside lever.
• SL05, ICSLO5, CSL05 - Storeroom Lock: Deadlocking Latch Bolt operated by key in outside lever or by rotating inside lever. Outside lever is always fixed.
• SL80, ICSL80, CSL80 - Exit Lock: Connecting Room with Key. Deadlocking Latch Bolt operated with key from inside only. Blank plate outside.
• SL101, ICSL101, CSL101 - Dormitory/Assisted Living: Deadlocking Latch Bolt operated by lever from either side except when outside lever is locked by key or by push button on inside lever. Key in outside lever locks or unlocks outside lever. Outside key releases push button when locked from inside. Rotating inside lever or closing the door releases push button.
• SL10, CSL10 - Patio: Deadlocking Latch Bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by rotating inside lever or closing door.
• SL20, CSL20 - Privacy Lock: Latch Bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door releases push button.
• SL30 - Passage Set: Latch Bolt operated by lever from either side at all times.
• SL40 - Dummy Lever: Single Dummy Trim for one side of door. Pull only.
• SL50 - Exit Lock: Blank plate outside. Inside lever always unlocked.
• "IC" Indicates function available with Best, Falcon & Arrow Interchangeable Core.

Finishes:

• 605/US3 Polished Brass
• 606/US4 Satin Brass
• 609/US5 Antique Brass
• 612/US10 Satin Bronze
• 613/US10B Oil Rubbed Bronze
• 619/US15 Satin Nickel
• 625/US26 Polished Chrome
• 626/US26D Satin Chrome

Features

• Clutch: Clutch available on all keyed locks and privacy Functions. Prefix "C" before part number.
• Latch Faceplate: 2-1/4" x 1-1/8", adjustable for flat or beveled doors 1/8" in 2", for 2-3/4" Backset.
• Keying: 6-pin "C" Keyway Cylinder, 2 keys per lock. Keying as per individual job requirement.
• Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5" Optional.
• Door Ranges: 1-3/8" to 1-3/4" door thickness.
• Cylinder & Keyways: 6 Pin solid brass "C" Keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal(HSK) High Security Cylinders.
• Latch Bolt: 1/2" Throw solid brass, reversible for RH or LH Applications. UL Listed.
• Exposed Trim: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match Trim finish.
• Applications: For offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings.
• Optional 2-1/4" x 1" for 2-3/8"
• ANSI Standards: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
