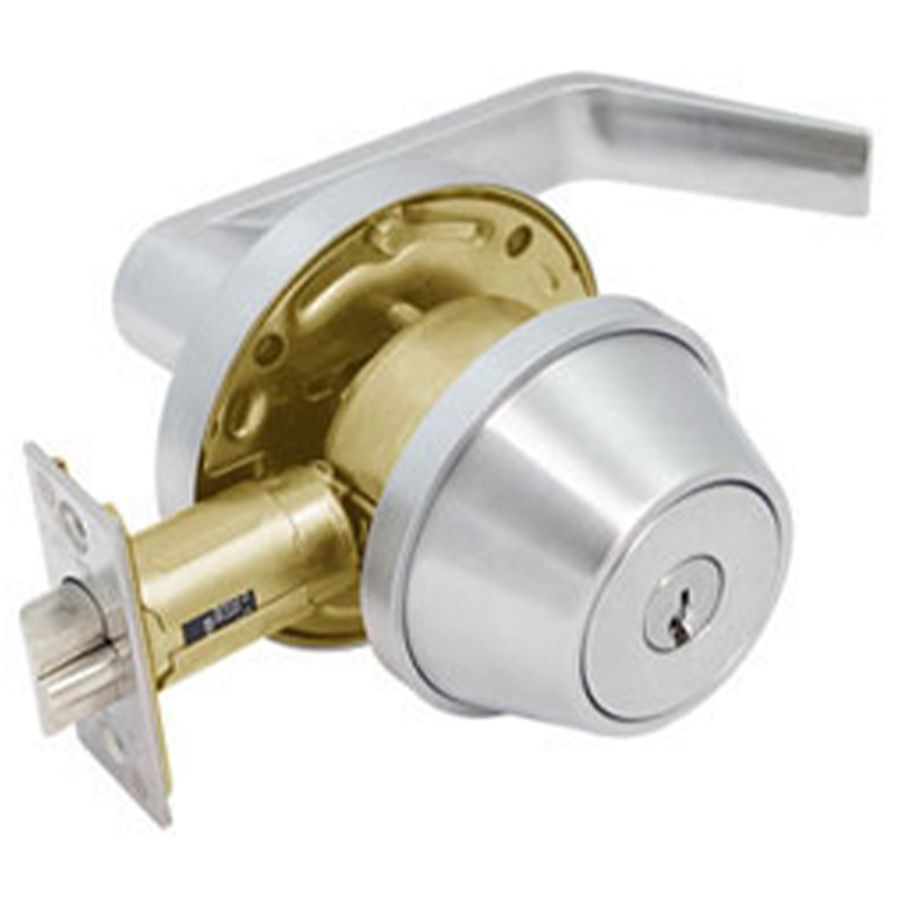

Cal-Royal XP-T360-05-US26D 2 3/4 BACKSET Gate Lock Deadbolt x Lever, 2-3/4" Backset, Schlage C Keyway, Satin Chrome

Cal Royal XP-T360-05-US26D 2 3/4 BACKSET Gate Lock delivers robust security tailored for both residential and commercial applications. This heavy-duty deadbolt and lever combination is engineered for a wide range of settings, including offices, schools, hospitals, and public buildings. With a 2-3/4 inch backset, it features a solid brass 6-pin Schlage C keyway, ensuring reliable performance and key compatibility. Boasting a BHMA Certified Lifetime Warranty and Grade 2 certification, the XP-T360 conforms to ANSI A 156.2 standards and is UL listed with a 3-hour fire rating. Its one-piece steel housing provides added strength, while the adjustable door thickness accommodates doors ranging from 1-3/8" to 2". The non-clutch mechanism and individual springs on each side prevent lever sag, enhancing durability and reducing maintenance needs. Additionally, the lock is available with optional features such as an interchangeable core, tactile and lead lining, and through-bolted installation. With its satin chrome finish, this lock not only meets the Buy American Act but also complements various architectural styles. Elevate your security with the Cal Royal XP-T360-05-US26D, a reliable choice for demanding environments.

Gate Lock, Deadbolt x Lever, 2-3/4in Backset, 6-Pin Schlage C Keyway KD, 626/US26D Satin Chrome

Explorer XP Series for Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings. T300 Series maximum security heavy duty deadbolts for residential and commercial.

Explorer XP Features:

• BHMA Certified Lifetime Warranty, Grade 2.
• Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free.
• UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997.
• Solid brass 6 pin "C" Keyway Cylinder, Optional other Keyways.
• Optional Interchangeable Core.
• Non-Clutch Mechanism.
• Optional thru-bolted installation.
• Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance.
• Optional Tactile and Lead Lining.
• Meets the Buy American Act.

T300 Series Features:

• BHMA Certified Lifetime Warranty, Grade 2.
• Conforms with ANSI A 156.2 Series 4000.
• ADA (American Disability Act) Ergonomic Thumbturn.
• UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997.
• Solid brass 6 pin "C" Keyway Cylinder, Optional other Keyways.
• Optional Interchangeable Core.
• One-piece steel housing for extra strength.
• Hurricane Approved Hardware. Florida Building Code FL13922.
• Meets the Buy American Act.

Explorer XP Specifications:

• Door Ranges: 1-3/8" to 2" thickness doors.
• Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5" Optional.
• Latch Bolt: 1/2" Throw solid brass, reversible for RH or LH Applications. UL Listed.
• Latch Faceplate: 2-1/4" x 1", square corner packed with 1/8" plastic filler for 1-1/8" width.
• ANSI Standards: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
• Exposed Trim: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match Trim finish.
• Keying: 6-pin "C" Keyway Cylinder, 2 keys per lock. Keying as per individual job requirement.
• Cylinder & Keyways: 6 pin solid brass "C" Keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
• Interchangeable Core (IC): Interchangeable Core locks will accept compatible 6 or 7 pin cores with Best, Falcon and Arrow. Prefix "IC" before part number. Available combinated or uncombinated. Temporary construction cores available. Factory Keying with control key and master key available.
• Strikes: ASA Strike standard, "T" and full lip Strike available on request.
• Tactile & Lead Lining: available upon request.

T300 Series Specifications:

• Trim: Wrought Brass or Stainless Steel.
• Door Ranges: Adjustable 1-3/8" (40mm) to 2" (51mm) door thickness.
• Backset: UL Listed 3 Hour Fire Rating 2-3/4" Latch Bolt. 2-3/8" Optional.
• Deadbolt Faceplate: Standard 2-1/4" x 1-1/8" for 2-3/4" Backset. Optional 2-1/4" x 1" for 2-3/8" Backset.
• Strike: 1-1/8" x 2-3/4" square corner. Extra security 1" throw bolt with 1/4" free spinning anti-cut through pin. 2 pcs x 3" screws with wood frame reinforcer greatly strengthens door frames.
• Bore Diameter: 1" for latch, 2-1/8" for lock housing.
• Keyways: 6 pin solid brass "C" Keyway standard. Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
• Interchangeable Core: Interchangeable Core locks will accept compatible 6 or 7 pin cores with Best, Falcon and Arrow. Prefix "IC" before part number. Available combinated or uncombinated. Temporary construction cores available. Factory Keying with control key and master key available.

Finishes:

• 605/US3 - Polished Brass
• 606/US4 - Satin Brass
• 609/US5 - Antique Brass
• 612/US10 - Satin Bronze
• 613/US10B - Oil Rubbed Bronze
• 619/US15 - Satin Nickel
• 625/US26 - Polished Chrome
• 626/US26D - Satin Chrome
• 622/US1 - Flat Black Coated (T300 Series Only)
• 630/US32D - Satin Stainless Steel (T300 Series Only)
