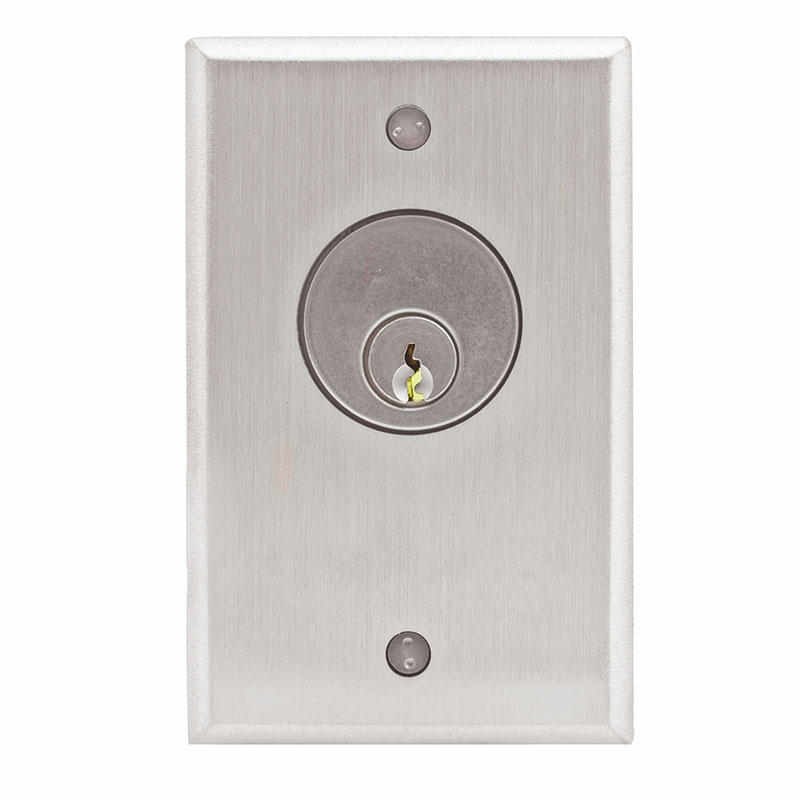

Camden CM-1120 Key Switch Control

Camden CM-1120 Key Switch Control offers a reliable solution for managing access control with a single gang design. This key switch operates at versatile 12/24 VAC/DC, featuring a momentary SPDT switch that accommodates both normally open (N/O) and normally closed (N/C) configurations. Crafted from 1/4" thick aluminum, the unit is built with a one-piece die cast construction, ensuring durability and longevity for commercial applications. The sleek aluminum finish not only enhances its aesthetic appeal but also integrates seamlessly into various environments. Designed for compatibility with standard mortise cylinders, the CM-1120 is perfect for those seeking a robust and secure access control option. With dimensions of 4.5" in height, 2.75" in width, and 1.5" in length, this compact switch fits easily into existing systems. Installation is straightforward, making it ideal for commercial settings that demand efficient and effective access management. Enjoy peace of mind knowing this product comes with a three-year limited warranty, underscoring Camden's commitment to quality and reliability. Elevate your access control solutions with the Camden CM-1120 Key Switch Control, a trusted choice for building professionals and knowledgeable homeowners alike.

Key Switch Control

Single Gang Key Switch, 12/24 VAC/DC, SPDT Switch, N/O and N/C, Momentary, Aluminum Finish

Camden Door Controls, CM-1100 and CM-2000 Series flush mount key switches meet the stringent demands of key switch controls. They are designed for use with standard 1”, 1 1/8”, or 1 1/4” mortise cylinders. Fabricated from 1/4” thick aluminum, into a one piece die cast construction, with unique Camden Manufacturing features.
