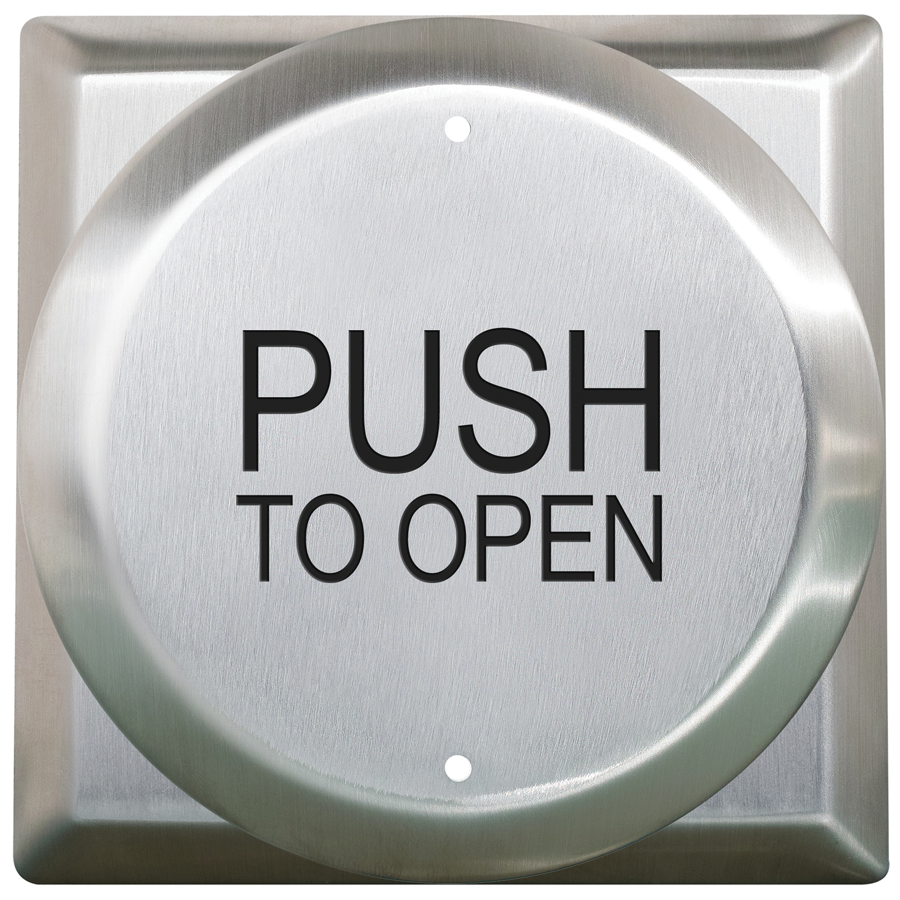

Camden CM-41/4 4-1/2" Round Push Plate w/Square Backplate, Wheelchair Push to Open

Camden Door Controls CM-41/4 4-1/2" Round Push Plate with Square Backplate is an exceptional solution for enhancing accessibility in various environments. This heavy-duty, ADA-compliant push plate is designed for high-traffic areas, including hospitals and senior residences, ensuring effortless access for wheelchair users and others needing assistance. With its all-active design, the CM-41/4 requires minimal actuation force, allowing for easy operation. Constructed from durable stainless steel or solid brass, the 4-1/2" round faceplate is not only sturdy but also visually appealing, capable of covering poorly installed electrical boxes with its large square backplate. The switch is UL/CSA approved, rated for 15A at 30 VDC, and can be mounted flush or on the surface, offering versatility for various installations. This momentary switch is ideal for controlling electric strikes, electromagnetic locks, and automatic doors, and can also be employed for shunting, bypassing alarms, and request-to-exit functions. Available in multiple finishes and configurations, the Camden CM-41/4 push plate is a reliable choice for both commercial and residential applications, backed by a three-year warranty for peace of mind.

4-1/2" Round Push Plate w/Square Backplate, Wheelchair Push to Open

CM-40/41 Series all-active switches are heavy-duty, ADA-compliant door controls. The 4-1/2" round faceplates are stainless steel or solid brass, and the assembly is designed for easy installation. The CM-40 and CM-41 switches mount to standard 2 x 4 electrical boxes. The SPDT (and optional DPDT) switches are UL/CSA approved, and rated 15A @ 30 VDC. The 4-1/2" square stainless steel backplate on the CM-41 is large enough to dress-up (cover) a poorly installed electrical box. It will also fit perfectly on most 4-1/2" surface boxes. Camden all-active switches are designed for areas where an easy-to-activate, high visibility switch is desired. Ideal for high-traffic areas, hospitals, wheelchair access, seniors’ residences, etc. They can be surface or flush mounted. Camden all-active switches are designed to control electric strikes, electromagnetic locks and automatic doors. They may also be used for shunting, bypassing alarms, request to exit, timed functions, and many other applications. The switches are made for high frequency usage, in both indoor/outdoor environments. Camden switches are versatile, and can be supplied in various configurations and finishes, to suit any commercial, industrial, or residential application.

Features:

• Large, easy to operate switches
• 4-1/2" Round faceplates
• All-active design requires minimal actuation force
• Meets ADA requirements
• Durable stainless steel or solid brass construction
• Flush mount or surface mount
• UL/CSA Approved switch, rated 15A @30 VDC
• Various logos and messages
• Architectural finishes
• 3 year warranty

Specifications:

• Voltage: 12/24V AC/DC
• Contact Type: SPDT Form ‘C‘
• Contact Rating: 15A @ 30 VDC
• Switch Type: Momentary
• Dimensions: 1.25" L x 6.25" W x 6.25" H
• Weight: 0.76lbs.
