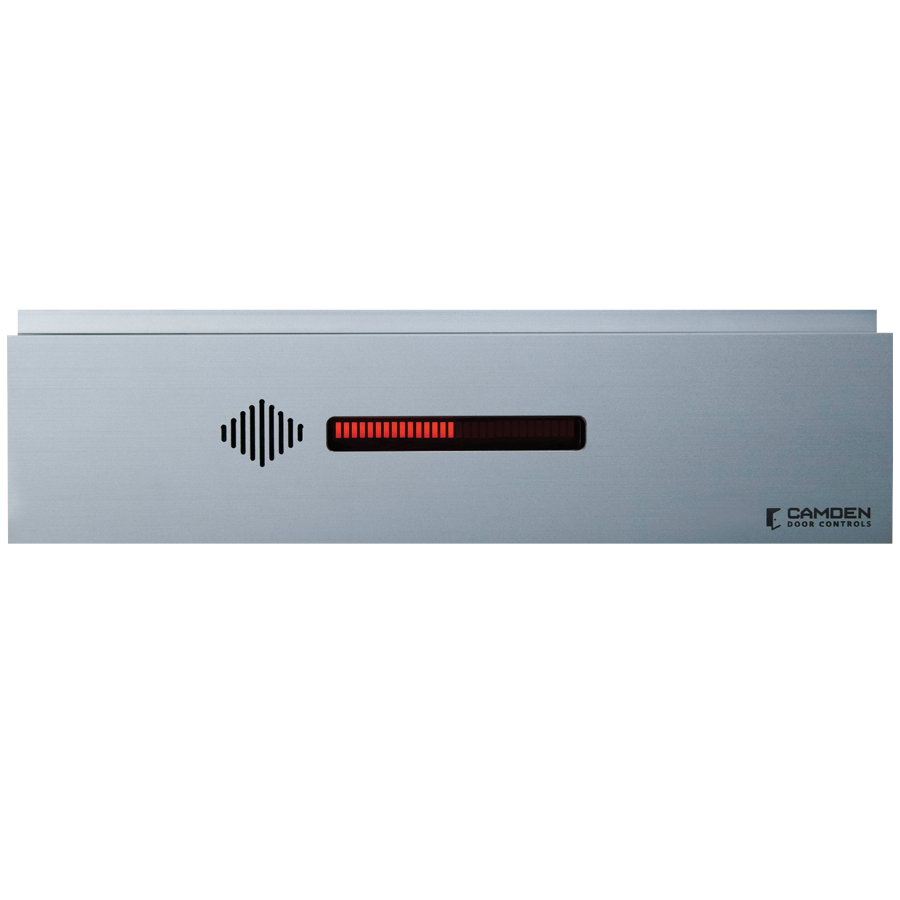

Camden CX-DE1200-N1 Exit Watch Delayed Egress Maglock 1 Door, 15/30 Second NFPA

Camden Door Controls CX-DE1200-N1 Exit Watch Delayed Egress Maglock is expertly designed for single and double door applications, making it an ideal choice for healthcare, childcare, retail, and institutional environments. This robust maglock features a human voice and an LED countdown timer, ensuring immediate understanding of the lock's status for building occupants. The CX-DE1200-N1 provides a customizable nuisance delay period of 1, 2, or 3 seconds and offers multiple sensor activation options, including door motion and exit devices with momentary contacts. The lock supports auto/manual start-up on power restoration and boasts a vandal-resistant proximity trigger sensor, enhancing its durability and reliability. With a holding force of up to 1,200 lbs (544 kg), this maglock is designed to meet the stringent requirements of NFPA, BOCA, and local AHJ regulations. The auto-sensing power input with polarity protection ensures seamless operation, while features like anti-pass back and auto re-lock enhance security. The CX-DE1200-N1 operates on a voltage range of 12/24 VDC, making it versatile for various installations. Optional accessories, including sounders, speakers, and reset stations, are available for further customization. Secure your premises with the Camden Door Controls CX-DE1200-N1, where performance meets peace of mind.

Exit Watch Delayed Egress Maglock 1 Door, 15/30 Second NFPA

CX-DE1200 Series single and double door delayed egress magnetic locks are designed to provide the best performance and value in healthcare, childcare, retail, and institutional applications. The innovative human voice and LED count down timer offers immediate comprehension of status for building occupants. These rugged locks are available in a range of models, with factory default operation, to meet NFPA, BOCA and local AHJ requirements. The CX-DE1200 is now available with optional system accessories and mounting devices for added versatility.

Features:

• Single and double door models
• Nuisance Delay period 1, 2 or 3 seconds
• Voice annunciator & progressive LED count-down timer
• Choice of sensor activation:
• Door motion
• Door exit device with momentary N/O contact
• Push bar with momentary N/O contact
• Auto/manual start-up on power restore
• Vandal Resistant proximity trigger sensor
• Auto sensing power input with polarity protection
• Anti-pass back/auto re-lock
• Available accessories include: sounder, speaker, reset station & mounting devices

Specifications:

• Voltage: 12/24 VDC +/- 10% (Auto-Sensing)
• Current Draw: 600mA / 350mA
• DPS Rating: 30 VDC, 0.1A (max.)
• ATS Rating: 30 VAC / 42.4 VDC, 5A (max.)
• Lock Status Relay Rating: 30 VDC, 2A (max.)
• Alarm Output Rating: 30 VDC, 2A (max.)
• Bond Sensor Rating: CX-DE1200: 30 VDC, 2A (max.)
• Holding Force: Up to 1,200 lbs. (544 kg.)
• Temperature Range: 32°F - 131°F (0°C to 55°C)
• Dimensions - Armature Plate: 2-5/8"H x 11"W x 1"D (68mm x 280mm x 25mm)
• Dimensions - Lock: 3"H x 11"W x 3"D (76mm x 280mm x 76mm)
• Weight: 9.5lbs

Mounting Accessories:

• CX-DE1214-38: 3/8" Filler plate
• CX-DE1214-58: 5/8" Filler plate
• CX-DE1215: 1 x 1.5" Angle bracket
• CX-DE1216: 1.5" x 1.5" Angle bracket
• CX-DE1217: 2" Angle bracket
