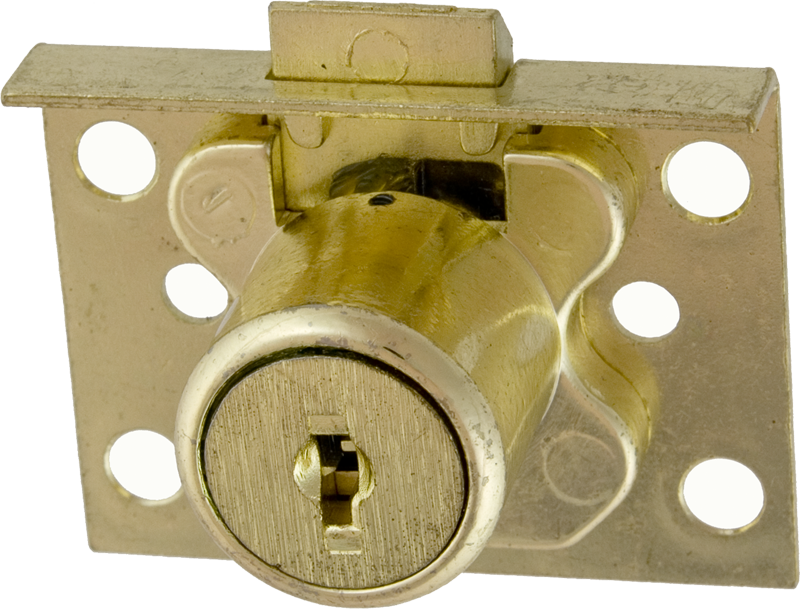

CCL 02065-1/2KACAT30 7/8in Drawer Lock, Slam Latch, Disc Tumbler, Keyed Alike KA Cat30, Satin Brass

CCL Security Products 02065-1/2KACAT30 Drawer Lock offers a reliable solution for securing drawers with its robust design and functionality. This 7/8-inch slam latch lock features a disc tumbler mechanism, ensuring enhanced security for your valuables. Crafted from brass-plated steel, the backplate, cylinder, and bolt are designed for durability while maintaining an elegant satin brass finish that complements various interior styles. The lock is keyed alike to the KA Cat30 system, allowing for convenience and ease of access with multiple locks using a single key. For added versatility, this model can be master keyed, making it an ideal choice for commercial and residential applications where multiple access points require streamlined key management. Rekeying the CCL 02065-1/2KACAT30 is straightforward, thanks to the plug removal hole that facilitates easy access to the plug assembly. Simply insert the key, rotate, and use a small tool to depress the retainer for quick rekeying. Furnished with a No. 26S brass strike, this lock is a practical addition to any cabinetry or drawer system. With its combination of quality materials, ease of use, and practical features, the CCL Security Products Drawer Lock is a smart choice for those seeking reliable security solutions.

Drawer Lock, 7/8in, Slam Latch, Disc Tumbler, Keyed Alike KA Cat30, 606/US4 Satin Brass

Features:

• 7/8" can be master keyed, 11⁄8" Cannot be Master keyed
• Material: Brass Plated Steel Backplate, Cylinder and Bolt, Pressure Cast
• Strike: No. 26S, brass, US4 only. Regularly furnished with locks 02068 1/2 and 02065 1/2.
• Strike: No. 7S, brass, US4 only. Furnished only when ordered with locks
• Rekeying: Plug removal hole added to allow for removal of plug assembly for rekeying purposes. To remove plug, insert key and rotate 90 degrees. Insert end of small tool (e.g., paper clip) into access hole and depress retainer while pulling key and plug out.

Resources

• Cut Sheet
