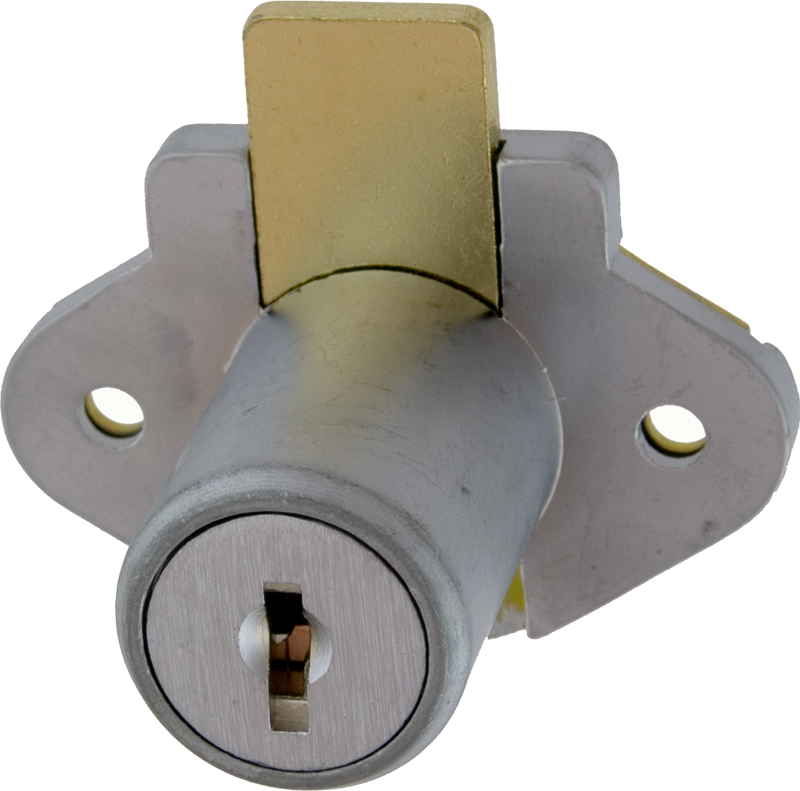

CCL 0206626DAUE1 7/8in Dead Bolt Drawer Lock, Disc Tumbler, Keyed Alike KA AUE1, Satin Chrome

CCL Security Products 0206626DAUE1 Drawer Lock combines security and durability in a compact design, making it an ideal choice for cabinets, drawers, and doors. Crafted with a brass plated steel backplate and bolt, along with a pressure cast cylinder, this lock ensures robust performance and long-lasting use. The satin chrome finish not only enhances its aesthetic appeal but also provides resistance against wear and tear, suitable for various environments. This lock features a deadbolt design for added security, ensuring that your valuables remain protected. With a 7/8-inch size, it fits seamlessly into most standard applications. The lock includes the option of a longer bolt if required, with the standard bolt length being 2 inches from the centerline of the lock to the end. For those needing specific configurations, the S16596 version boasts an overall bolt length of 12 inches, with the bolt extending from both ends of the lock. This versatility ensures it meets different locking needs. Additionally, the lock can be keyed alike for convenience, allowing multiple locks to be operated with a single key. With its reliable construction and thoughtful design, the CCL Security Products 0206626DAUE1 Drawer Lock is an excellent choice for enhanced security solutions.

Drawer Lock, 7/8in, Dead Bolt, Disc Tumbler, Keyed Alike KA AUE1, 626/US26D Satin Chrome

Features:

• Material: Brass plated steel backplate and bolt, pressure cast cylinder
• If longer bolt is required, specify 02066B
• Bolt length unlocked: 2" from centerline of lock to end.
• S16596: 12" overall bolt length. Bolt extends from both ends of lock
• Unlocked: 6.3" from top of lock; 4.2" from bottom of lock
• Strike No: 7S, brass US4 only, furnished only when ordered

Finishes:

• US4
• US26D
