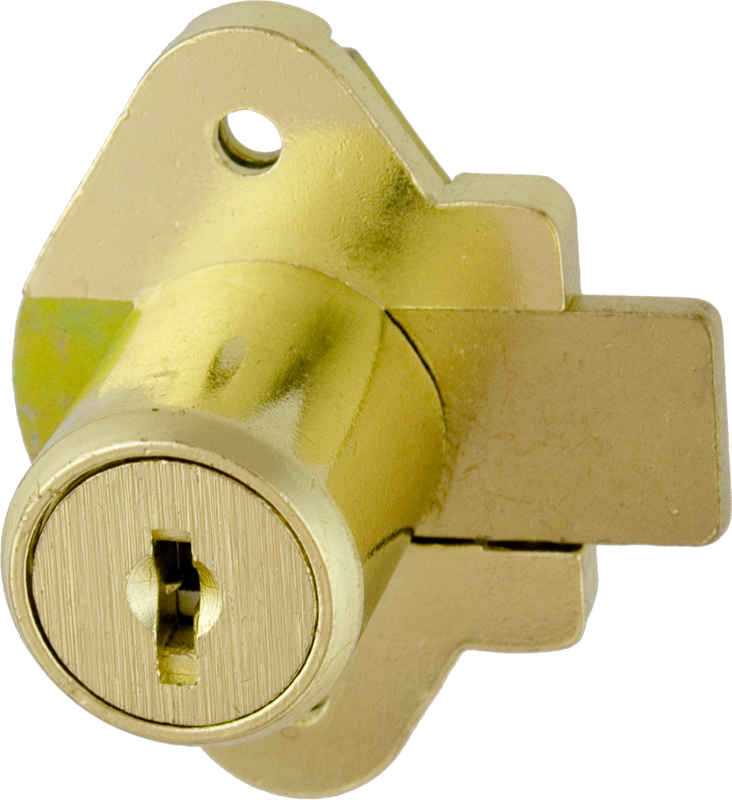

CCL 02067KACAT30 Cabinet Lock 7/8in Dead Bolt Disc Tumbler Keyed Alike KA Cat30 Satin Brass

CCL Security Products 02067KACAT30 Cabinet Lock is designed to provide robust security for your cabinets and drawers. Featuring a durable brass plated steel backplate and bolt, along with a pressure cast cylinder, this lock ensures long-lasting performance while maintaining an elegant appearance in satin brass finish (US4). This lock operates with a disc tumbler mechanism that can be master keyed, offering added flexibility for high-security environments. The reversible design accommodates either hand door installation, making it a versatile choice for various applications. For convenience, the lock includes a plug removal access hole, allowing for easy rekeying. Simply insert the key, rotate it 90 degrees, and use a small tool to depress the retainer for quick plug removal. The CCL 02067KACAT30 is compatible with strike No: 7S, which is available upon request. With its compact size of 7/8", this disc door lock is ideal for tight spaces while delivering strong security. Whether you’re a building professional or a knowledgeable homeowner, this cabinet lock offers peace of mind with its reliable construction and user-friendly features. Upgrade your security with the confidence that CCL Security Products delivers.

Cabinet Lock, 7/8in, Dead Bolt, Disc Tumbler, Keyed Alike KA Cat30, 606/US4 Satin Brass

Features:

• Material: Brass Plated Steel Backplate and Bolt, Pressure Cast Cylinder
• Operation: Reversible for either hand door
• Disc Tumbler Can be Master keyed
• Strike No: 7S, brass US4 only, furnished only when ordered
• Rekeying: Plug removal access hole added to allow for removal of plug assembly for rekeying purposes.
• To remove plug, insert key and rotate 90 degrees.
• Insert end of small tool (e.g., paper clip) into access hole and depress retainer while pulling key and plug out.

Finishes:

• US4
• US26D

Resources

• Cut Sheet
