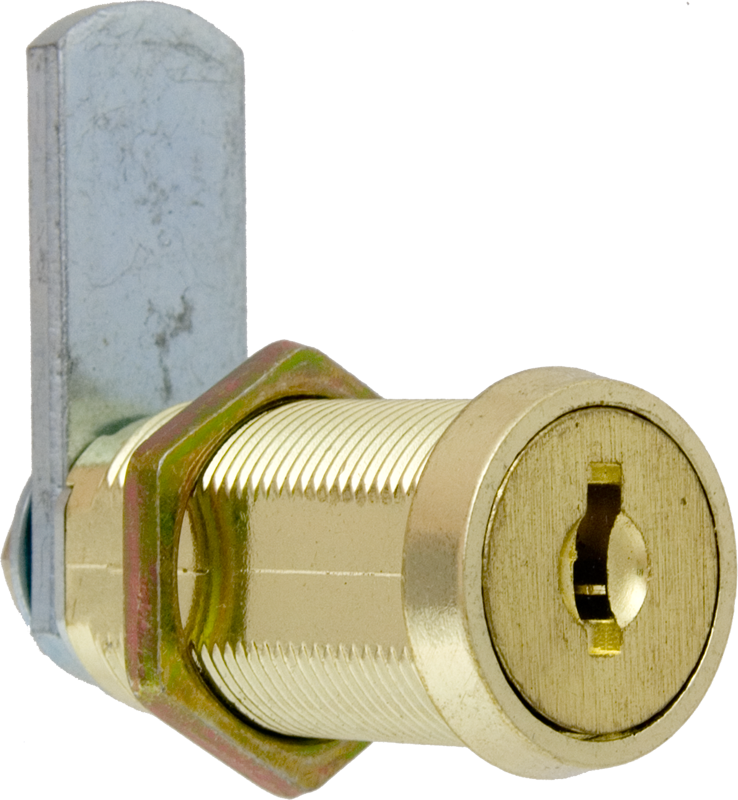

CCL 15760KACAT30 1-1/4in Disc Cam Lock, 606/US4 Satin Brass

CCL Security Products 15760KACAT30 1-1/4in Disc Cam Lock in Satin Brass offers a reliable and secure solution for your locking needs. This expertly crafted cam lock features a disc tumbler design that can be master keyed, enhancing versatility and control over access. Made from durable pressure cast material, it ensures longevity and strength in various applications. With a variety of key change options, this cam lock provides 200 regular key changes using the 5865JVR key blank (5 disc) and up to 700 changes with the 8658JVR blank (6 disc). For master keying, expect 180 changes with the 5860KS blank (5 disc) and 700 with the 5861KS blank (6 disc). The lock comes with a cam positioned at 12 o'clock in the locked state but can be installed at 3, 6, or 9 o'clock as needed. The standard rotation is 90 degrees from 12 to 9 o'clock, and the key is removable only in the locked position. For added flexibility, it is also available with a 180-degree rotation option that allows key withdrawal in both locked and unlocked positions. Ideal for various applications, the CCL 15760KACAT30 combines functionality with an elegant satin brass finish, making it a perfect choice for both professional and residential use.

1-1/4in Disc Cam Lock, 606/US4 Satin Brass

Features:

• Disc Tumbler. Can be Master keyed.
• Material: Pressure cast
• Regular Key Changes: 200 with key blank 5865JVR (5 disc), 700 with key blank 8658JVR (6 disc)
• Master keyed Key Changes: 180 with key blank 5860KS (5 disc), 700 with key blank 5861KS (6 disc)
• Cam Positions: Regularly furnished with cam mounted at 12 o'clock locked position. Cam may be mounted at 3, 6, 9, or 12 o'clock locked position.
• Cam Rotation: Regular rotation 90 degrees from 12 to 9 o'clock, key removable only in locked position at 12.
• Also available with 180 degree rotation from 12 to 6 o'clock so key can be withdrawn in both locked and unlocked positions.
• Cylinder: Slabbed on both sides
