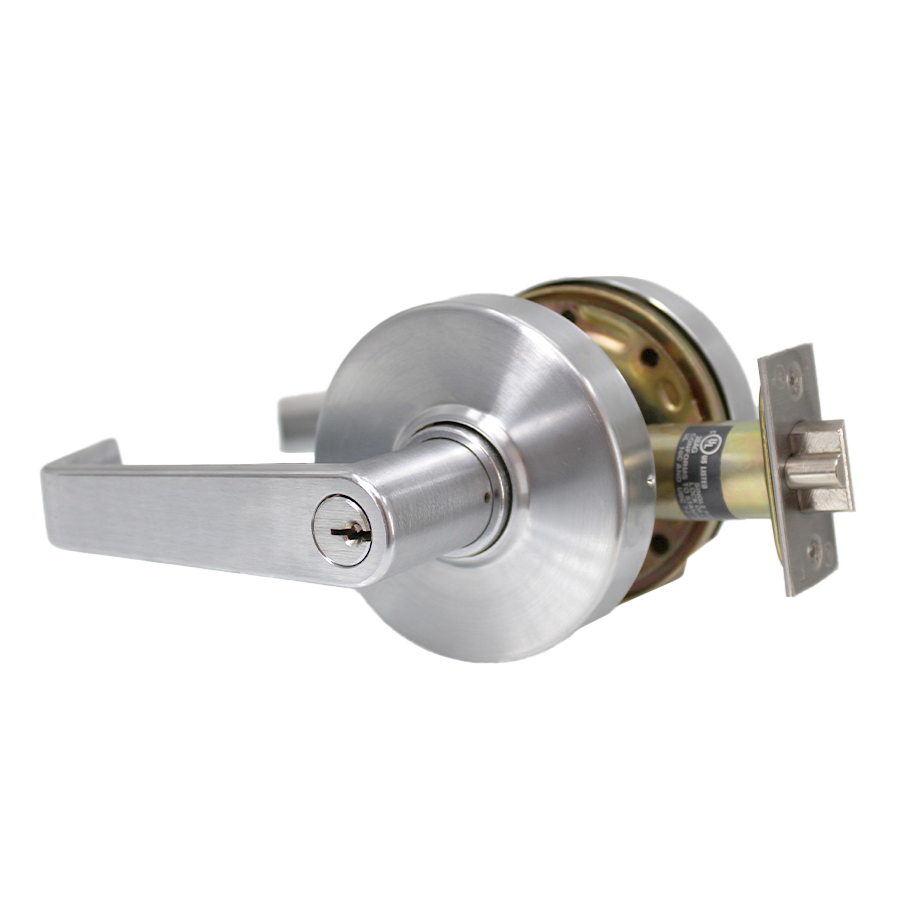

Command CL180EU-24V-L6-626-SC-RX Grade 1 Electrified Storeroom Clutch Bent Lever, 24V, Schlage C, Satin Chrome

Command Access CL180EU-24V-L6-626-SC-RX is a top-tier Grade 1 electrified storeroom locking solution, engineered for both reliability and performance. This clutching bent lever lock operates on 24V and features electric unlocking (EU), ensuring swift and secure access control for commercial environments. With a satin chrome finish (626/US26D), it combines durability with a modern aesthetic to complement various architectural styles. Designed with low current draw, the CL180EU offers operational efficiency with options for 12V or 24V DC power. It accommodates door thicknesses from 1-9/16" to 2-1/8" and is compatible with the Schlage C keyway, providing flexibility and ease of integration into existing systems. The clutching lever design enhances user experience by allowing free egress from the inside, while the outside lever can be electronically unlocked, making it ideal for high-traffic areas. This model also supports Request to Exit (REX) functionality and comes with a no-hassle 3-year warranty, reflecting Command Access's commitment to quality. Additionally, it’s UL listed, meeting stringent safety standards. The CL180EU is a smart investment for those seeking a high-quality, economical solution in their access control projects.

Grade 1, Electrified Storeroom Clutching Bent Lever, 24V, Electric Unlocked (EU), Request to Exit (REX), Schlage C Keyway, 626/US26D Satin Chrome

The Command Access CL1 is a high quality grade 1 cylindrical lock with the look and feel our customers have come to expect from leading brands, but at a significantly lower price. The CL1 is an ideal solution for that project where a "brand name" electrified product is not specified or required yet a high quality and economical solution is desired. You can install this lock with the confidence of knowing that the CL1 meets or exceeds the high standards of our other grade 1 modifications and carries the same no hassle 3-year warranty.

• UL Listed
• Grade 1
• 12 or 24 VDC
• Low Current Draw

Features:

• Clutching lever design
• Available SFIC
• Available with Schlage C type keyway standard
• No hassle 3-Year Warranty

Options:

• Available Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked)
• Voltage Options - 12V or 24V (AC/DC)
• REX - Request to Exit or AE switch available (on all functions)
• CRU2 - Current Reduction Unit to improve solenoid life in "continuously on" applications
• CRU2i - The intelligent CRU2: automatically detects DC input voltage between 12 to 30 volts and converts it to operate our 12V locks. Additionally, it adjusts the current to the solenoid allowing the lockset to run cooler and last longer without any manual adjustments.

Specifications:

• Operating Voltage: 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
• Amperage: 12V = 250 mA / 24V = 150 mA
• Solenoid coil resistance: 12V = 49 Ω / 24V = 159 Ω
• Power consumption: 3 watt
• Door Thickness:1-9/16" to 2-1/8"

Functions:

• CL180EL - storeroom: (fail safe) Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• CL180EU - storeroom: (fail secure) Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.

Trim Available:

• L6 (bent lever)
• L7
• L17 (curved lever)

Finishes:

• 605
• 612
• 613
• 625
• 626
