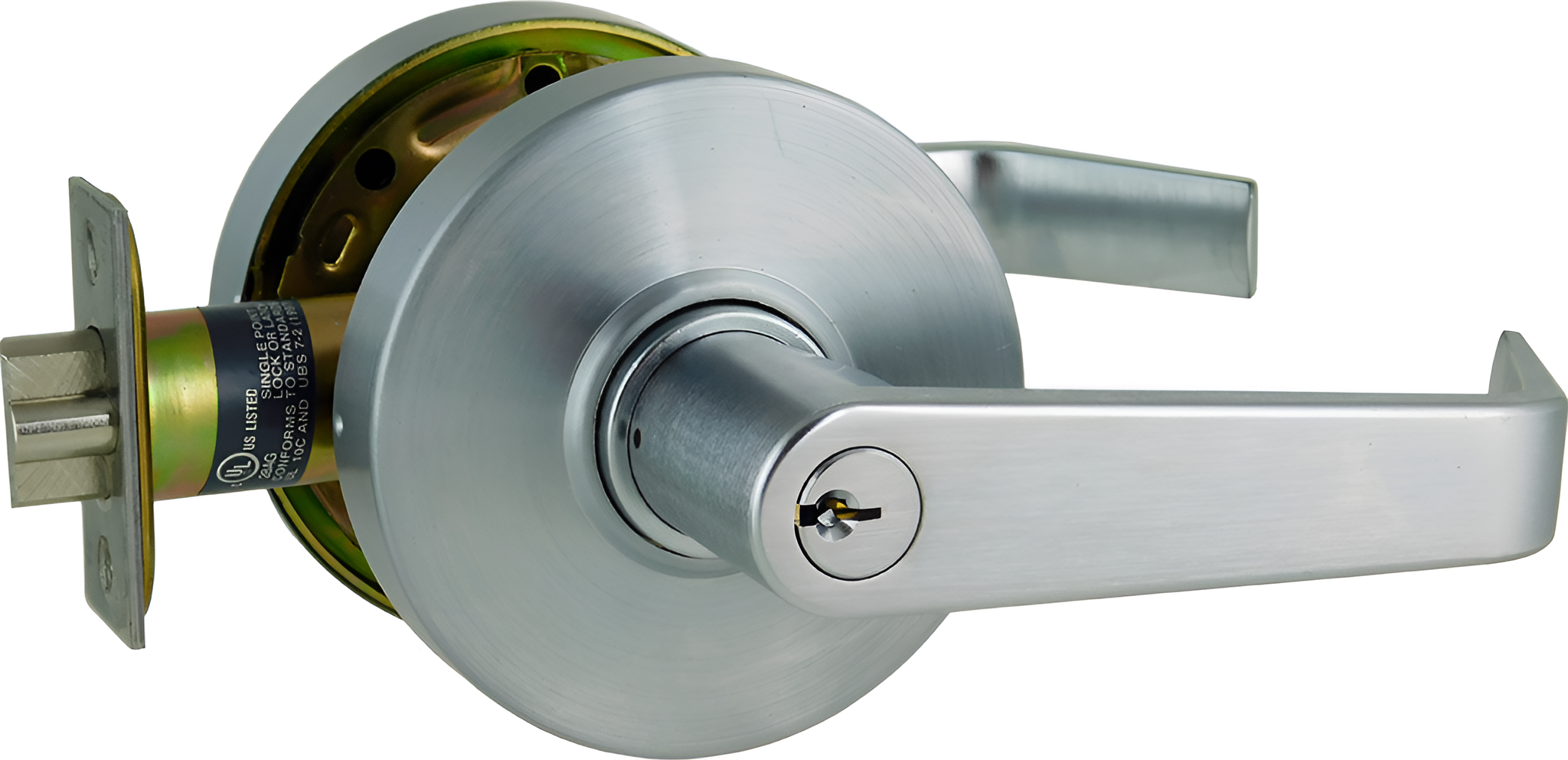

Command CL180LE-EL-L6-626-SC Grade 1 Electrified Low Energy Storeroom Clutching Lever, Schlage C, Satin Chrome

Command Access CL180LE-EL-L6-626-SC is a Grade 1, electrified low-energy storeroom clutching bent lever lock designed for optimal security and convenience. Featuring an electric lock (fail-safe) functionality, this lock allows the outside lever to be electronically locked while enabling immediate egress from the inside. It operates on 11-30 VAC/VDC, making it versatile and suitable for various applications. Constructed to meet rigorous UL standards, the CL180LE offers a clutching lever design that enhances usability while providing enhanced security. The lock is available with a Schlage C keyway, ensuring compatibility with existing systems. With a sleek satin chrome finish, it adds a modern touch to any entryway. This model supports a range of voltage options, including 12V and 24V, and incorporates low current draw for energy efficiency. The door thickness compatibility ranges from 1-5/8" to 1-3/4", making it adaptable for various door types. Additionally, the lock comes with a no-hassle 3-year warranty, assuring you of its quality and reliability. Whether for commercial spaces or high-traffic areas, the Command Access CL180LE-EL-L6-626-SC delivers strength, functionality, and peace of mind, making it an excellent choice for your next project.

Grade 1, Electrified Low Energy (LE), Storeroom Clutching Bent Lever, 11-30 VAC/VDC, Electric Locked (EL) = Fail Safe (FS), Request to Exit (REX), Schlage C Keyway, 626/US26D Satin Chrome

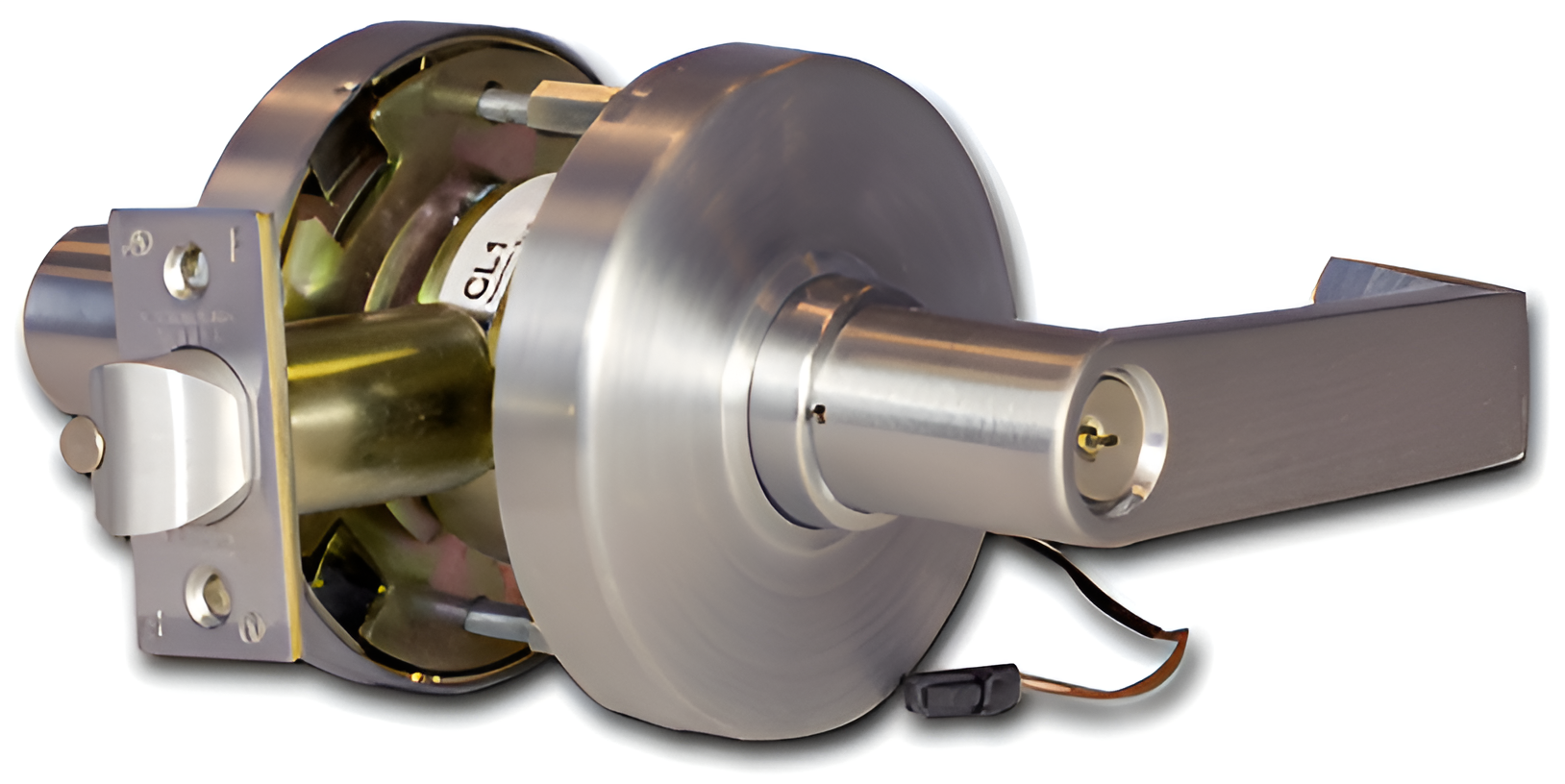

The Command Access CL1 is a high quality grade 1 cylindrical lock with the look and feel our customers have come to expect from leading brands, but at a significantly lower price. The CL1 is an ideal solution for that project where a "brand name" electrified product is not specified or required yet a high quality and economical solution is desired. You can install this lock with the confidence of knowing that the CL1 meets or exceeds the high standards of our other grade 1 modifications and carries the same no hassle 3-year warranty.

• UL Listed
• Grade 1
• 12 or 24 VDC
• Low Current Draw

Features:

• Clutching lever design
• Available SFIC
• Available with Schlage C type keyway standard
• No hassle 3-Year Warranty

Options:

• Available Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked)
• Voltage Options - 12V or 24V (AC/DC)
• REX - Request to Exit or AE switch available (on all functions)
• CRU2 - Current Reduction Unit to improve solenoid life in "continuously on" applications
• CRU2i - The intelligent CRU2: automatically detects DC input voltage between 12 to 30 volts and converts it to operate our 12V locks. Additionally, it adjusts the current to the solenoid allowing the lockset to run cooler and last longer without any manual adjustments.

Specifications:

• Operating Voltage: 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
• Amperage: 12V = 250 mA / 24V = 150 mA
• Solenoid coil resistance: 12V = 49 Ω / 24V = 159 Ω
• Power consumption: 3 watt
• Door Thickness:1-9/16" to 2-1/8"

Functions:

• CL180EL - storeroom: (fail safe) Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• CL180EU - storeroom: (fail secure) Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.

Trim Available:

• L6 (bent lever)
• L7
• L17 (curved lever)

Finishes:

• 605
• 612
• 613
• 625
• 626

Resources

• Cut Sheet
