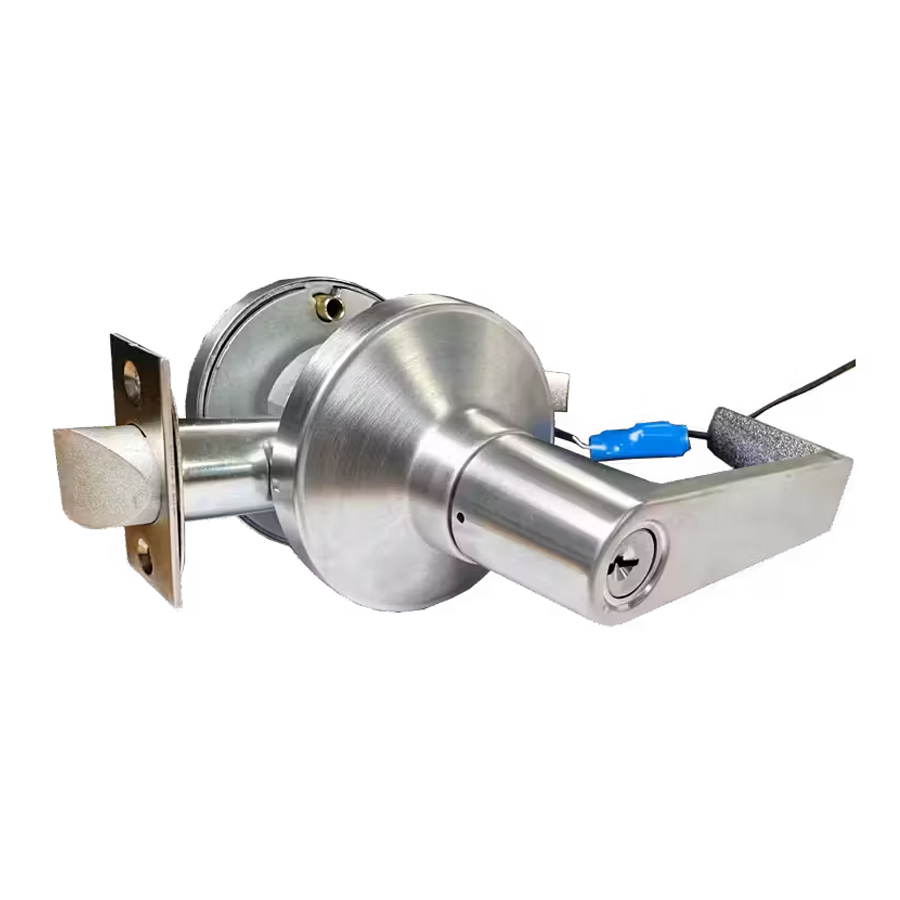

Command CL190-HD-EU-L17-626-SC Grade 1 Motorized Electrified Storeroom Lever, Fail Safe, Schlage C Keyway, Satin Chrome

Command Access CL190-HD-EU-L17-626-SC is a robust Grade 1 motorized electrified storeroom straight lever lock designed for high-use environments. Engineered for continuous duty applications, this cylindrical lock operates efficiently within a voltage range of 11 to 30 VAC/VDC, making it a versatile choice for various security needs. The electric unlocking feature (Fail Safe) ensures that the outside lever is always free for immediate egress, while the inside lever can be retracted by key or lever, providing both convenience and security. One of the standout features of the CL190-HD is its low maximum current draw of 300 mA, allowing multiple locks to be powered from a single supply, thus offering cost savings. With a holding current of just 100 mA, this lock meets sustainable operation standards. The motor module is field-selectable between Fail Safe and Fail Secure modes with a simple switch flip, eliminating the need for separate inventory for different models. Constructed in the USA, the lock is compatible with Schlage C keyway and supports optional features like a built-in request-to-exit switch for enhanced functionality. It comes with a 5-year "No Hassle" warranty, ensuring peace of mind for both building professionals and knowledgeable homeowners.

Grade 1, Motorized Electrified Storeroom Straight Lever, 11-30 VAC/VDC, Electric Unlocked (EU) = Fail Safe (FS), Field Reversible EL/EU, Schlage C Keyway, 626/US26D Satin Chrome

The CL190-HD series is a low-energy motorized lever control cylindrical lock ideal for any continuous duty application or condition requiring low surge and hold current. It is built on a heavy-duty cylindrical lock chassis and is made for high-use environments. The whole assembly is produced right here in the US. Our motor module auto-detects anything from 11- 30VDC & includes a dip switch to change from Fail Safe (EL) to Fail Secure (EU). Allowing inventory flexibility eliminates the need to inventory 12 or 24V & EU or EL models. Optional additions: built-in request to exit (REX) switch & Molex connectors for plug & play installations.

Features:

• Low maximum current draw 300 mA: use more locks on a single power supply. Additional savings for the owner.
• Low holding current 100 mA : reliable operation and meets sustainable consideration.
• Fail Safe(EL) & Fail Secure(EU) field selectable with flip of a switch.
• Multiple lever styles & finishes available.
• Available SFIC or LFIC (Schlage): Cylinder not included.
• Available with Schlage C type keyway standard
• Request-to-exit built-in.
• 5-year "No Hassle" warranty.

Specifications:

• Voltage:
• Voltage range – 11 to 30 VDC
• Standard - Average Current Peak: 300mA, Average Current Hold: 100mA
• Product Details:
• Complete Lock Box: 8.5"W x 10.5"L: x 4.75"H
• Weight: 6 Lbs
• Master Pack Qty: 6 ea.
• Accessories:
• Request-to-Exit - Built-in Request to Exit switch
• Door Position Switch - see IDPS series
• QC/CON/BC - Quick Connects

Models Available:

• CL190HD-EU: Outside lever unlocked (EU) electronically. Latchbolt retracted by key out-side or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• CL190HD-EL: Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.

Finishes:

• 612
• 613
• 622
• 625
• 626
