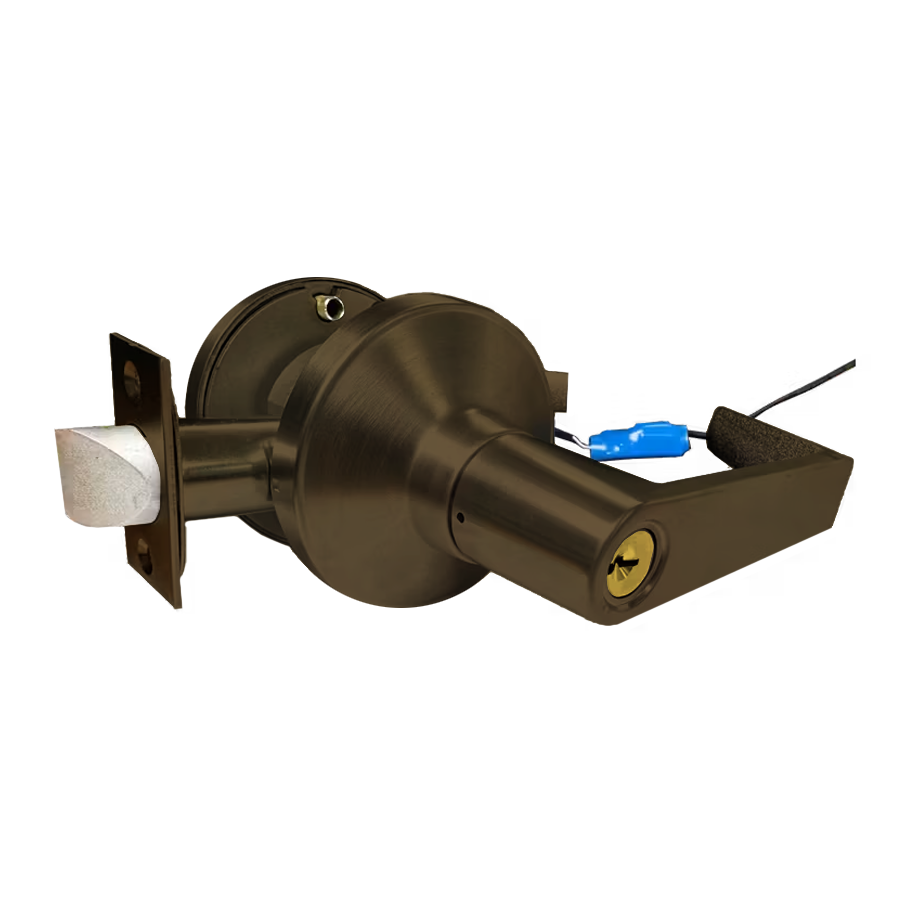

Command CL190-HD-EU-L6-613-SC Grade 1 Motorized Electrified Bent Lever, Fail Safe, Schlage C Keyway, Oil Rubbed Bronze

Command Access CL190-HD-EU-L6-613-SC is a Grade 1 motorized electrified storeroom bent lever designed for high-use environments requiring a robust and reliable locking solution. This low-energy, motorized lever control cylindrical lock operates efficiently within a voltage range of 11-30 VAC/VDC, making it ideal for continuous duty applications. Its electric unlock feature (Fail Safe) ensures security while allowing for easy exit, making it perfect for commercial spaces. Built on a heavy-duty cylindrical lock chassis, the CL190-HD is engineered for low maximum current draw of just 300 mA, enabling multiple locks to operate from a single power supply. The holding current of 100 mA enhances reliability and contributes to sustainability goals. Field-selectable settings for Fail Safe and Fail Secure modes provide versatility, allowing quick adjustments with the flip of a switch. Additional features include a built-in request-to-exit switch for seamless egress, compatibility with Schlage C keyway, and multiple lever styles and finishes. The product is made in the USA and comes with a 5-year "No Hassle" warranty, ensuring peace of mind. Weighing 6 lbs and measuring 8.5"W x 10.5"L x 4.75"H, this lock is a practical choice for any commercial security application.

Grade 1, Motorized Electrified Storeroom Bent Lever, 11-30 VAC/VDC, Electric Unlocked (EU) = Fail Safe (FS), Field Reversible EL/EU, Schlage C Keyway, 613/US10B Oil Rubbed Bronze

The CL190-HD series is a low-energy motorized lever control cylindrical lock ideal for any continuous duty application or condition requiring low surge and hold current. It is built on a heavy-duty cylindrical lock chassis and is made for high-use environments. The whole assembly is produced right here in the US. Our motor module auto-detects anything from 11- 30VDC & includes a dip switch to change from Fail Safe (EL) to Fail Secure (EU). Allowing inventory flexibility eliminates the need to inventory 12 or 24V & EU or EL models. Optional additions: built-in request to exit (REX) switch & Molex connectors for plug & play installations.

Features:

• Low maximum current draw 300 mA: use more locks on a single power supply. Additional savings for the owner.
• Low holding current 100 mA : reliable operation and meets sustainable consideration.
• Fail Safe(EL) & Fail Secure(EU) field selectable with flip of a switch.
• Multiple lever styles & finishes available.
• Available SFIC or LFIC (Schlage): Cylinder not included.
• Available with Schlage C type keyway standard
• Request-to-exit built-in.
• 5-year "No Hassle" warranty.

Specifications:

• Voltage:
• Voltage range – 11 to 30 VDC
• Standard - Average Current Peak: 300mA, Average Current Hold: 100mA
• Product Details:
• Complete Lock Box: 8.5"W x 10.5"L: x 4.75"H
• Weight: 6 Lbs
• Master Pack Qty: 6 ea.
• Accessories:
• Request-to-Exit - Built-in Request to Exit switch
• Door Position Switch - see IDPS series
• QC/CON/BC - Quick Connects

Models Available:

• CL190HD-EU: Outside lever unlocked (EU) electronically. Latchbolt retracted by key out-side or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• CL190HD-EL: Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.

Finishes:

• 612
• 613
• 622
• 625
• 626
