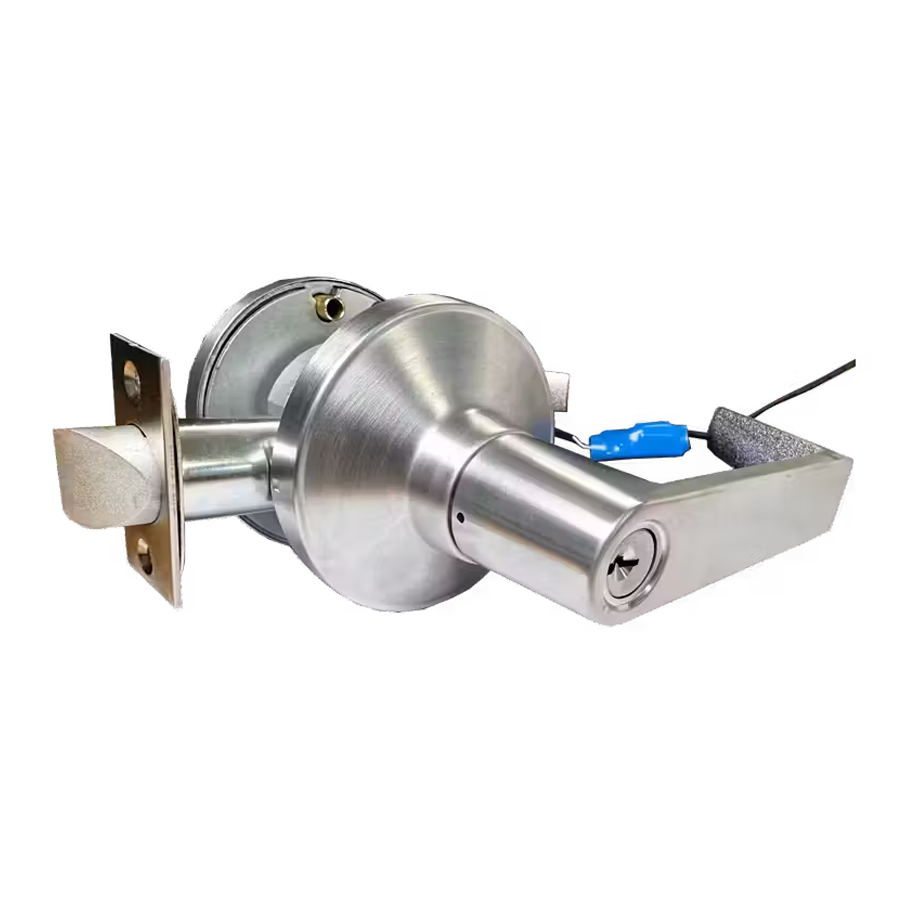

Command CL190-HD-EU-L6-626-SC Grade 1 Motorized Electrified Bent Lever, Fail Safe, Schlage C Keyway, Satin Chrome

Command Access CL190-HD-EU-L6-626-SC Grade 1 Motorized Electrified Storeroom Bent Lever is engineered for high-use environments that demand reliable security solutions. This low-energy motorized lever control cylindrical lock operates within a voltage range of 11-30 VAC/VDC, making it adaptable for various power supply setups. With a fail-safe mechanism (EU), this lock ensures enhanced safety during emergencies, allowing quick egress. Designed with sustainability in mind, the CL190-HD boasts a low maximum current draw of 300 mA and a holding current of just 100 mA, providing energy efficiency while maintaining dependable performance. The field-selectable fail-safe and fail-secure options via a simple dip switch offer flexibility in installation, reducing the need for multiple inventory items. Constructed on a heavy-duty cylindrical lock chassis, this lock ensures durability and longevity. It features a built-in request-to-exit (REX) switch, streamlining access control. Additionally, the lock is compatible with Schlage C keyway and can be customized with various lever styles and finishes. Backed by a 5-year "No Hassle" warranty, the Command Access CL190-HD-EU-L6-626-SC provides peace of mind for building professionals and knowledgeable homeowners alike.

Grade 1, Motorized Electrified Storeroom Bent Lever, 11-30 VAC/VDC, Electric Unlocked (EU) = Fail Safe (FS), Field Reversible EL/EU, Schlage C Keyway, 626/US26D Satin Chrome

The CL190-HD series is a low-energy motorized lever control cylindrical lock ideal for any continuous duty application or condition requiring low surge and hold current. It is built on a heavy-duty cylindrical lock chassis and is made for high-use environments. The whole assembly is produced right here in the US. Our motor module auto-detects anything from 11- 30VDC & includes a dip switch to change from Fail Safe (EL) to Fail Secure (EU). Allowing inventory flexibility eliminates the need to inventory 12 or 24V & EU or EL models. Optional additions: built-in request to exit (REX) switch & Molex connectors for plug & play installations.

Features:

• Low maximum current draw 300 mA: use more locks on a single power supply. Additional savings for the owner.
• Low holding current 100 mA : reliable operation and meets sustainable consideration.
• Fail Safe(EL) & Fail Secure(EU) field selectable with flip of a switch.
• Multiple lever styles & finishes available.
• Available SFIC or LFIC (Schlage): Cylinder not included.
• Available with Schlage C type keyway standard
• Request-to-exit built-in.
• 5-year "No Hassle" warranty.

Specifications:

• Voltage:
• Voltage range – 11 to 30 VDC
• Standard - Average Current Peak: 300mA, Average Current Hold: 100mA
• Product Details:
• Complete Lock Box: 8.5"W x 10.5"L: x 4.75"H
• Weight: 6 Lbs
• Master Pack Qty: 6 ea.
• Accessories:
• Request-to-Exit - Built-in Request to Exit switch
• Door Position Switch - see IDPS series
• QC/CON/BC - Quick Connects

Models Available:

• CL190HD-EU: Outside lever unlocked (EU) electronically. Latchbolt retracted by key out-side or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• CL190HD-EL: Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.

Finishes:

• 612
• 613
• 622
• 625
• 626

Resources

• Spec Sheet
