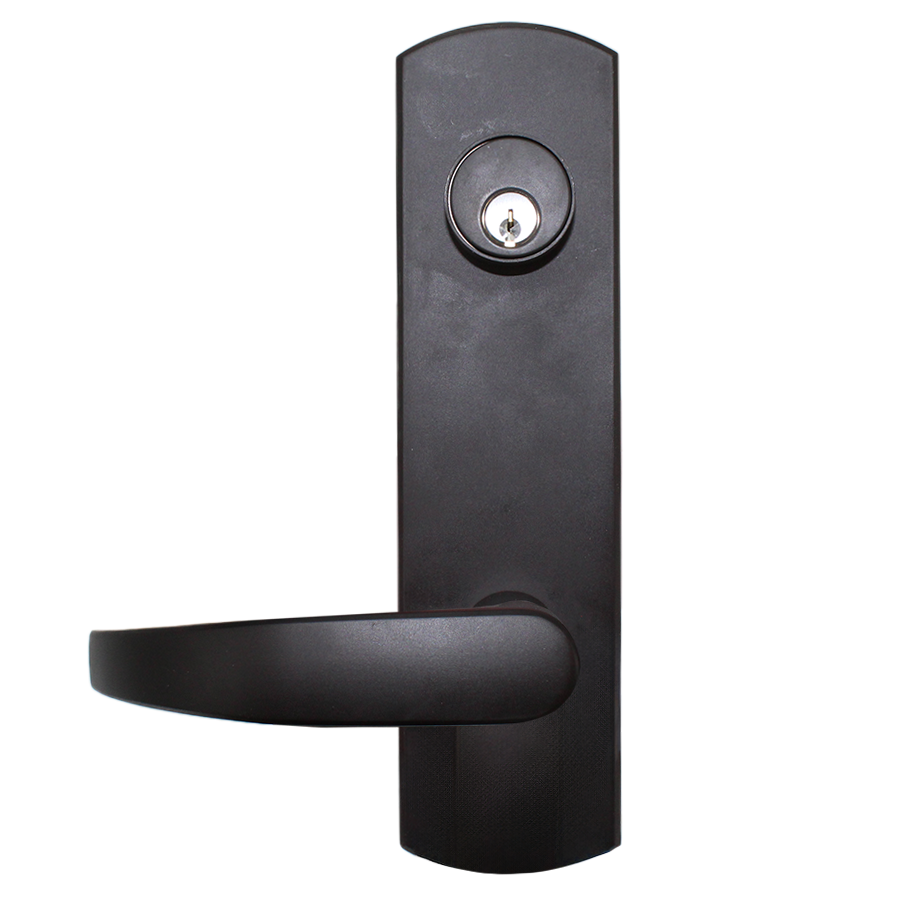

Command ET25-LE-EU/EL-L17-613-C Electrified Exit Trim, Multi-Voltage EU Solenoid, Von 98/99 Series, Schlage C Keyway

Command Access ET25-LE-EU/EL-L17-613-C Electrified Exit Trim offers a reliable solution for stairwell applications where electric pullback of the latchbolt is not necessary or feasible. Designed with safety in mind, this exit trim is particularly suitable for environments that require a "fail safe" condition, aligning with fire and life safety codes. The unit operates on a multi-voltage range of 11-30VDC/VAC, ensuring adaptability to various power systems. This exit trim features a field-reversible handing, making onsite adjustments straightforward. The low current draw minimizes the need for a robust power supply, while the internally mounted solenoid simplifies installation without requiring special door preparation. Users will appreciate the continuous duty solenoids, which guarantee trouble-free operation, and the durable oil-rubbed bronze finish that seamlessly blends with various architectural styles. The ET25 is available in two operational modes: fail safe (ET25EL) and fail secure (ET25EU), allowing for tailored security solutions. A variety of options, including the intelligent Current Reduction Unit (CRU2i), help extend the life of the solenoid under continuous use. Backed by a 3-year warranty, the Command Access ET25-LE is a smart choice for both building professionals and savvy homeowners looking for dependable exit security solutions.

Electrified Exit Trim, Multi-Voltage 11-30VDC/VAC EU Solenoid (Field Changeable to EL), Von 98/99 Series RIM/CVR/SVR, Schlage C Keyway, Curved Lever, (Includes BR5 A/C Bridge Rectifier with 5ft Leads), Handing Field Reversible, 613/US10B Oil Rubbed Bronze

The Command Access electronic ET25 exit trim is perfect for stairwell conditions or applications where electric pullback of the exit device’s latchbolt is cost prohibitive or not required. This is especially practical in applications where fire/life safety codes require "fail safe" condition which is not an option with electrified latch pullback devices. Because the current draw is quite low there is no need for a more expansive power supply to provide the surge current.

Features:

• Field Reversible.
• 12 or 24 VDC.
• Low Current Draw.
• Continuous duty solenoids used to insure trouble-free operation.
• Internally mounted solenoid to ease installation (no special door prep required).
• 3-Year Warranty.

Specifications:

• Operating Voltage: 12 or 24VAC/DC (+ or - 10%) (must specify 12 or 24 volts when ordering).
• Amperage: 12V = 250 mA / 24V = 150 mA.
• Solenoid coil resistance: 12V = 49 Ω / 24V = 159 Ω.
• Lever Styles Available: L6, L17.

Options:

• Available: Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked).
• Voltage Options: 12V or 24V (AC/DC).
• REE: Request to Enter switch available.
• CRU2: Current Reduction Unit to improve solenoid life in "continuously on" applications.
• CRU2i: The intelligent CRU2: automatically detects DC input voltage between 12 to 30 volts and converts it to operate our 12V exit trims. Additionally, it adjusts the current to the solenoid allowing the exit trim to run cooler and last longer without any manual adjustments.

Functions:

• ET25EL - storeroom (fail safe): Outside lever locked (EL) electronically. Switched power allows outside lever to retract latch(es). Outside key momentarily unlocks outside lever to retract latch(es). Inside push pad is always free for immediate egress.
• ET25EU - storeroom (fail secure): Outside lever unlocked (EU) electronically. Switched power allows outside lever to retract latch(es). Outside key momentarily unlocks outside lever to retract latch(es). Inside push pad is always free for immediate egress.

Finishes:

• 613/US10B - Oil Rubbed Bronze
• 626/US26D - Satin Chrome
