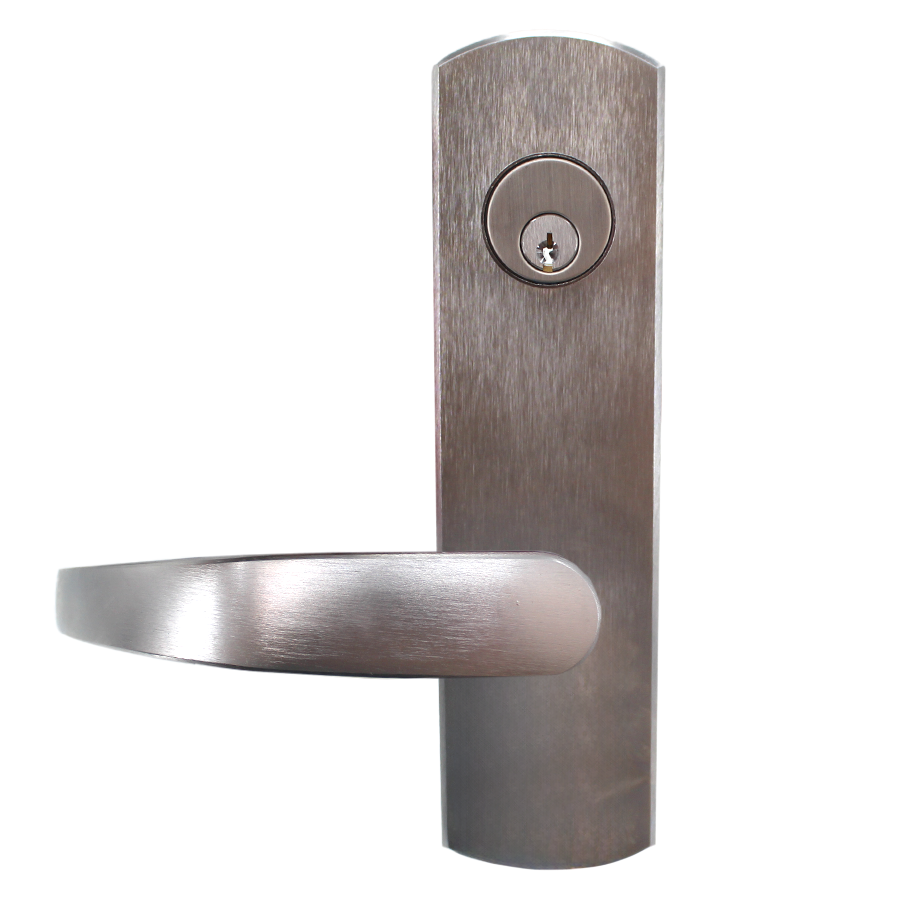

Command ET25-LE-EU/EL-L17-626-C Electrified Exit Trim, Multi-Voltage, Von 98/99 Series, Schlage C Keyway, Satin Chrome

Command Access ET25-LE-EU/EL-L17-626-C Electrified Exit Trim is an exceptional choice for applications requiring a reliable exit solution without the complexities of electric pullback devices. Designed to meet stringent fire and life safety codes, this trim ensures a fail-safe condition, making it ideal for stairwell environments. The low current draw of the ET25 not only simplifies power supply needs but also enhances operational efficiency. This versatile exit trim features a field-reversible design, accommodating various installation needs. It operates on multi-voltage configurations of 11-30V DC/VAC, with options for either fail safe (electrically locked) or fail secure (electrically unlocked) functions. The internally mounted solenoid eases installation, eliminating the need for special door preparations, while the continuous duty solenoids ensure long-lasting and trouble-free operation. With a sleek satin chrome finish, this trim is not only functional but also aesthetically pleasing. It includes a BR5 A/C bridge rectifier with 5ft leads, supporting straightforward setup. The ET25-LE is backed by a 3-year warranty, providing peace of mind for both building professionals and homeowners alike. Upgrade your security with Command Access and experience the blend of safety, convenience, and style.

Electrified Exit Trim, Multi-Voltage 11-30VDC/VAC EU Solenoid (Field Changeable to EL), Von 98/99 Series RIM/CVR/SVR, Schlage C Keyway, Curved Lever, (Includes BR5 A/C Bridge Rectifier with 5ft Leads), Handing Field Reversible, 626/US26D Satin Chrome

The Command Access electronic ET25 exit trim is perfect for stairwell conditions or applications where electric pullback of the exit device’s latchbolt is cost prohibitive or not required. This is especially practical in applications where fire/life safety codes require "fail safe" condition which is not an option with electrified latch pullback devices. Because the current draw is quite low there is no need for a more expansive power supply to provide the surge current.

Features:

• Field Reversible.
• 12 or 24 VDC.
• Low Current Draw.
• Continuous duty solenoids used to insure trouble-free operation.
• Internally mounted solenoid to ease installation (no special door prep required).
• 3-Year Warranty.

Specifications:

• Operating Voltage: 12 or 24VAC/DC (+ or - 10%) (must specify 12 or 24 volts when ordering).
• Amperage: 12V = 250 mA / 24V = 150 mA.
• Solenoid coil resistance: 12V = 49 Ω / 24V = 159 Ω.
• Lever Styles Available: L6, L17.

Options:

• Available: Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked).
• Voltage Options: 12V or 24V (AC/DC).
• REE: Request to Enter switch available.
• CRU2: Current Reduction Unit to improve solenoid life in "continuously on" applications.
• CRU2i: The intelligent CRU2: automatically detects DC input voltage between 12 to 30 volts and converts it to operate our 12V exit trims. Additionally, it adjusts the current to the solenoid allowing the exit trim to run cooler and last longer without any manual adjustments.

Functions:

• ET25EL - storeroom (fail safe): Outside lever locked (EL) electronically. Switched power allows outside lever to retract latch(es). Outside key momentarily unlocks outside lever to retract latch(es). Inside push pad is always free for immediate egress.
• ET25EU - storeroom (fail secure): Outside lever unlocked (EU) electronically. Switched power allows outside lever to retract latch(es). Outside key momentarily unlocks outside lever to retract latch(es). Inside push pad is always free for immediate egress.

Finishes:

• 613/US10B - Oil Rubbed Bronze
• 626/US26D - Satin Chrome
