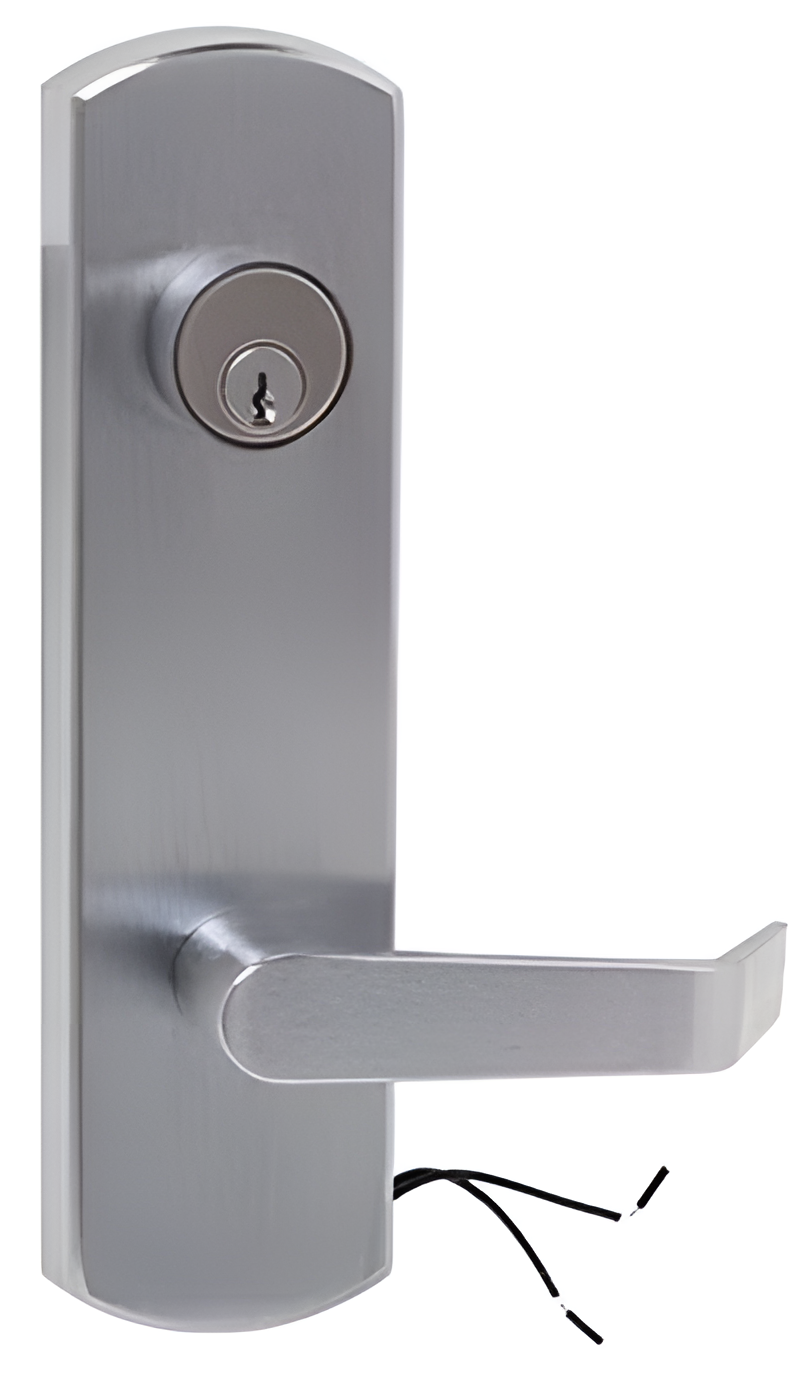

Command ET25-LE-EU/EL-L6-626-C Electrified Exit Trim, Multi-Voltage, Von 98/99 Series, Schlage C Keyway

Command Access ET25-LE-EU/EL-L6-626-C Electrified Exit Trim is an ideal solution for applications requiring a reliable exit device that meets fire and life safety codes. This versatile trim operates on multi-voltage options of 11-30VDC/VAC and features a continuous duty solenoid, ensuring efficient and trouble-free operation. Designed for easy installation, the internally mounted solenoid eliminates the need for special door preparations, making it a practical choice for both new and retrofit projects. The ET25 exit trim can be configured as either fail safe (electrically locked) or fail secure (electrically unlocked), providing flexibility based on security needs. The unit is field reversible, allowing for quick adjustments to handing. With a low current draw, it minimizes the need for a robust power supply, making it both cost-effective and efficient. This model comes with a Schlage C keyway and a bent lever design, available in a sleek satin chrome finish (626/US26D). Additional options include a Request to Enter switch and CRU2 for improved solenoid longevity. Backed by a 3-year warranty, the Command Access ET25-LE-EU/EL-L6-626-C delivers dependable performance and security for a range of commercial applications.

Electrified Exit Trim, Multi-Voltage 11-30VDC/VAC EU Solenoid (Field Changeable to EL), Von 98/99 Series RIM/CVR/SVR, Schlage C Keyway, Bent Lever, (Includes BR5 A/C Bridge Rectifier with 5ft Leads), Handing Field Reversible, 626/US26D Satin Chrome

The Command Access electronic ET25 exit trim is perfect for stairwell conditions or applications where electric pullback of the exit device’s latchbolt is cost prohibitive or not required. This is especially practical in applications where fire/life safety codes require "fail safe" condition which is not an option with electrified latch pullback devices. Because the current draw is quite low there is no need for a more expansive power supply to provide the surge current.

Features:

• Field Reversible.
• 12 or 24 VDC.
• Low Current Draw.
• Continuous duty solenoids used to insure trouble-free operation.
• Internally mounted solenoid to ease installation (no special door prep required).
• 3-Year Warranty.

Specifications:

• Operating Voltage: 12 or 24VAC/DC (+ or - 10%) (must specify 12 or 24 volts when ordering).
• Amperage: 12V = 250 mA / 24V = 150 mA.
• Solenoid coil resistance: 12V = 49 Ω / 24V = 159 Ω.
• Lever Styles Available: L6, L17.

Options:

• Available: Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked).
• Voltage Options: 12V or 24V (AC/DC).
• REE: Request to Enter switch available.
• CRU2: Current Reduction Unit to improve solenoid life in "continuously on" applications.
• CRU2i: The intelligent CRU2: automatically detects DC input voltage between 12 to 30 volts and converts it to operate our 12V exit trims. Additionally, it adjusts the current to the solenoid allowing the exit trim to run cooler and last longer without any manual adjustments.

Functions:

• ET25EL - storeroom (fail safe): Outside lever locked (EL) electronically. Switched power allows outside lever to retract latch(es). Outside key momentarily unlocks outside lever to retract latch(es). Inside push pad is always free for immediate egress.
• ET25EU - storeroom (fail secure): Outside lever unlocked (EU) electronically. Switched power allows outside lever to retract latch(es). Outside key momentarily unlocks outside lever to retract latch(es). Inside push pad is always free for immediate egress.

Finishes:

• 613/US10B - Oil Rubbed Bronze
• 626/US26D - Satin Chrome
