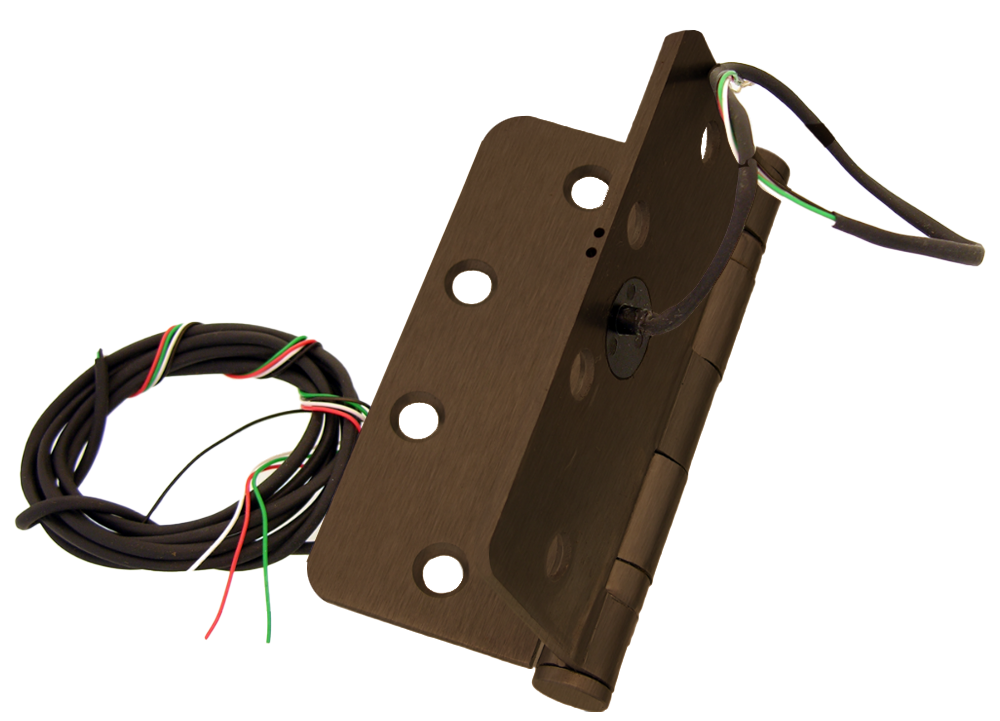

Command ETH2W4040RC-613 CH-BB79 Electrified Hinge 4"x4", 1/4 Round Corners, 2/20 Gauge, Fire Rated, Oil Rubbed Bronze

Command Access ETH2W4040RC-613 CH-BB79 Electrified Hinge is designed to seamlessly transfer low voltage power from the hinge jamb to the lockset, ensuring no exposed wires are present. Measuring 4.0 inches by 4.0 inches with 1/4 round corners, this hinge features a robust steel base and a 5-knuckle design, making it both durable and functional. With a stylish oil-rubbed bronze finish (613/US10B), it enhances the aesthetic of any door while maintaining a professional look. The ETH2W4040RC-613 is UL-F rated and includes a center-located wire access hole, providing convenience during installation. Its non-conductive wire access cap adds an extra layer of protection, ensuring safety and longevity. This hinge is compatible with a variety of locking mechanisms, including electric mortise and cylindrical locks, electric strikes, and door-mounted card readers. With a standard weight construction, it can easily support various applications in commercial and residential settings. A 4-foot lead is available at no additional charge, and the product comes with a 3-year warranty for peace of mind. The hinge is non-handed, making it versatile and easy to install in various orientations. Choose the Command Access ETH2W4040RC-613 for reliable and efficient power transfer in your security solutions.

Electrified Hinge, 4.0in x 4.0in, 1/4 Round Corners, Wires 2/20 Gauge, Steel Base, 5-Knuckle, Ball Bearing, Standard Weight, Fire Rated, 613/US10B Oil Rubbed Bronze

The Energy Transfer Hinge (ETH) is the ideal way to pass low voltage power from the hinge jamb to the lockset without having any exposed wires. These hinges are commonly used with electric mortise & cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights. We can modify almost any hinge and we maintain a large inventory of most major hinge brands in various sizes and Finishes. Contact us if what you need is not listed.

• UL-F Rated
• 4' Lead available at no charge
• Center located wire access hole
• Non-conductive wire access cap for added protection
• 3-Year Warranty

Configurations Available: Molex Connectors available

• ETH2W - 2 Wire (20 gauge) - 4A@24V (per pair)
• ETH4W - 4 Wire (26 gauge) - 1A@24V (per pair)
• ETH6W - 6 Wire (26 gauge) - 1A@24V (per pair)
• ETH8W - 8 Wire (28 gauge) - 1A@24V (per pair)
• ETH1OW - 10 Wire (28 gauge) - 1A@24V (per pair)
• ETH12W - 12 Wire (28 gauge) - 1A@24V (per pair)

Configurations Available for Electric Latch Retraction: Molex Connectors not available with heavy gauge wires

• ETH2WH - 2 Wire (18 gauge)
• ETH4WH - 2 Wire (18 gauge) + 2 Wire (26 gauge)
• ETH6WH - 2 Wire (18 gauge) + 4 Wire (28 gauge)
• ETH8WH - 2 Wire (18 gauge) + 6 Wire (28 gauge)
• ETH1OWH - 2 Wire (18 gauge) + 8 Wire (28 gauge)
• ETH12WH - 2 Wire (18 gauge) + 10 Wire (28 gauge)

Features

• 4' Lead available at no charge
• Non-conductive wire access cap for added protection
• Center located wire access hole
• 3-Year Warranty
• UL-F Rated

Resources

• Cut Sheet
