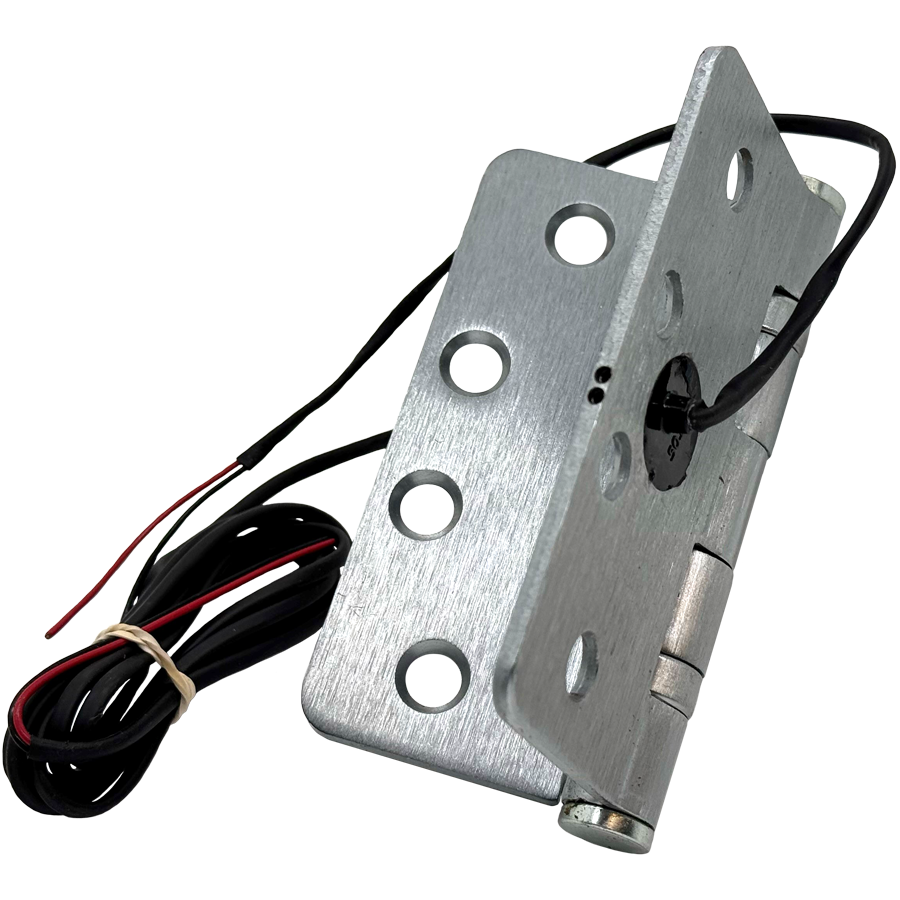

Command ETH2W4040RC-626 CH-BB79 Electrified Hinge 4"x4", 1/4" Round Corners, 2/20 Gauge, Satin Chrome

Command Access ETH2W4040RC-626 CH-BB79 Electrified Hinge is expertly designed to facilitate the seamless transfer of low voltage power from the hinge jamb to the lockset, ensuring no exposed wires compromise safety or aesthetics. This 4.0-inch x 4.0-inch hinge features a durable steel base with a 5-knuckle design, finished in a sophisticated satin chrome (626/US26D) that complements a variety of door styles. Built for functionality and reliability, this fire-rated hinge is UL-F rated and includes a center-located wire access hole and a non-conductive wire access cap, enhancing protection for the internal wiring. The ETH2W model is equipped with two 20-gauge wires, capable of handling up to 4A at 24V per pair, making it an excellent choice for use with electric mortise locks, cylindrical locks, electric strikes, and more. A 4-foot lead is provided at no additional charge, ensuring convenient installation. With eight mounting holes, this non-handed hinge offers versatility for various applications. Additionally, the ETH2W4040RC-626 comes with a 3-year warranty, reflecting Command Access's commitment to quality and durability. Enhance your security solutions with this reliable electrified hinge that combines functionality and style.

Electrified Hinge, 4.0in x 4.0in, 1/4 Round Corners, Wires 2/20 Gauge, Steel Base, 5-Knuckle, Ball Bearing, Standard Weight, Fire Rated, 626/US26D Satin Chrome

The Energy Transfer Hinge (ETH) is the ideal way to pass low voltage power from the hinge jamb to the lockset without having any exposed wires. These hinges are commonly used with electric mortise & cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights. We can modify almost any hinge and we maintain a large inventory of most major hinge brands in various sizes and Finishes. Contact us if what you need is not listed.

• UL-F Rated
• 4' Lead available at no charge
• Center located wire access hole
• Non-conductive wire access cap for added protection
• 3-Year Warranty

Configurations Available: Molex Connectors available

• ETH2W - 2 Wire (20 gauge) - 4A@24V (per pair)
• ETH4W - 4 Wire (26 gauge) - 1A@24V (per pair)
• ETH6W - 6 Wire (26 gauge) - 1A@24V (per pair)
• ETH8W - 8 Wire (28 gauge) - 1A@24V (per pair)
• ETH1OW - 10 Wire (28 gauge) - 1A@24V (per pair)
• ETH12W - 12 Wire (28 gauge) - 1A@24V (per pair)

Configurations Available for Electric Latch Retraction: Molex Connectors not available with heavy gauge wires

• ETH2WH - 2 Wire (18 gauge)
• ETH4WH - 2 Wire (18 gauge) + 2 Wire (26 gauge)
• ETH6WH - 2 Wire (18 gauge) + 4 Wire (28 gauge)
• ETH8WH - 2 Wire (18 gauge) + 6 Wire (28 gauge)
• ETH1OWH - 2 Wire (18 gauge) + 8 Wire (28 gauge)
• ETH12WH - 2 Wire (18 gauge) + 10 Wire (28 gauge)

Features

• 4' Lead available at no charge
• Non-conductive wire access cap for added protection
• Center located wire access hole
• 3-Year Warranty
• UL-F Rated

Resources

• Cut Sheet
