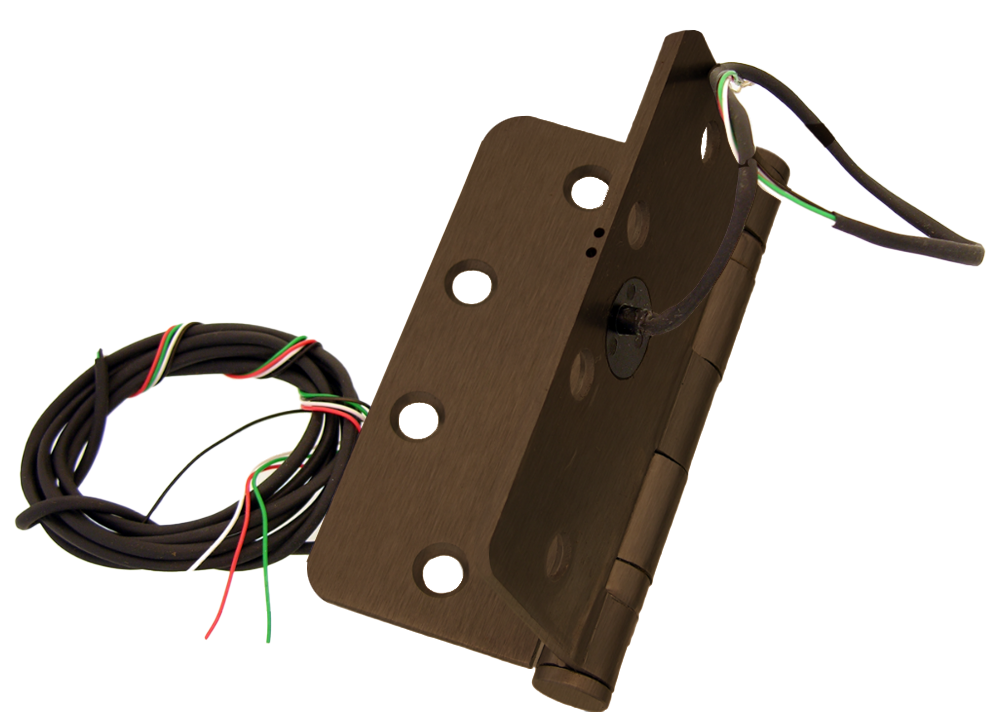

Command ETH4W4040RC-613 CH-BB79 Electrified Hinge 4"x4", 1/4 Round Corners, 5-Knuckle, Fire Rated, Oil Rubbed Bronze

Command Access ETH4W4040RC-613 CH-BB79 Electrified Hinge offers a seamless solution for transferring low voltage power from the hinge jamb to the lockset without exposing any wires. Measuring 4 inches by 4 inches, this hinge features 1/4 round corners and a robust 5-knuckle design, ensuring durability and reliable performance. The hinge is crafted from a steel base and finished in an elegant oil-rubbed bronze (613/US10B), enhancing both aesthetics and security. Designed specifically for use with electric mortise and cylindrical locks, electric strikes, door-mounted card readers, and other low voltage devices, the ETH4W4040RC-613 is UL-F rated, providing peace of mind in safety standards. The center-located wire access hole and non-conductive wire access cap offer added protection and ease of installation. This standard-weight hinge comes with a 4-foot lead at no additional charge and is backed by a 3-year warranty, making it a reliable choice for various applications. Its non-handed design simplifies installation, while the 4-wire configuration supports 1A at 24V, ensuring compatibility with a range of devices. Elevate your security solutions with the Command Access ETH4W4040RC-613, where functionality meets style.

Electrified Hinge, 4.0in x 4.0in (4040), 1/4 Round Corners, Wires 4/26 Gauge, 5-Knuckle, Ball Bearing, Standard Weight, Steel Base, Fire Rated, 613/US10B Oil Rubbed Bronze

The Energy Transfer Hinge (ETH) is the ideal way to pass low voltage power from the hinge jamb to the lockset without having any exposed wires. These hinges are commonly used with electric mortise & cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights. We can modify almost any hinge and we maintain a large inventory of most major hinge brands in various sizes and Finishes. Contact us if what you need is not listed.

• UL-F Rated
• 4' Lead available at no charge
• Center located wire access hole
• Non-conductive wire access cap for added protection
• 3-Year Warranty

Configurations Available: Molex Connectors available

• ETH2W - 2 Wire (20 gauge) - 4A@24V (per pair)
• ETH4W - 4 Wire (26 gauge) - 1A@24V (per pair)
• ETH6W - 6 Wire (26 gauge) - 1A@24V (per pair)
• ETH8W - 8 Wire (28 gauge) - 1A@24V (per pair)
• ETH1OW - 10 Wire (28 gauge) - 1A@24V (per pair)
• ETH12W - 12 Wire (28 gauge) - 1A@24V (per pair)

Configurations Available for Electric Latch Retraction: Molex Connectors not available with heavy gauge wires

• ETH2WH - 2 Wire (18 gauge)
• ETH4WH - 2 Wire (18 gauge) + 2 Wire (26 gauge)
• ETH6WH - 2 Wire (18 gauge) + 4 Wire (28 gauge)
• ETH8WH - 2 Wire (18 gauge) + 6 Wire (28 gauge)
• ETH1OWH - 2 Wire (18 gauge) + 8 Wire (28 gauge)
• ETH12WH - 2 Wire (18 gauge) + 10 Wire (28 gauge)

Features

• 4' Lead available at no charge
• Non-conductive wire access cap for added protection
• Center located wire access hole
• 3-Year Warranty
• UL-F Rated

Resources

• Cut Sheet
