Command ETH4W4545-612 CH-BB79 4.5in X 4.5in 4-wire 26g Electric Hinge
Images may not represent actual product and finish

Command ETH4W4545-612 CH-BB79 4.5in X 4.5in 4-wire 26g Electric Hinge

Your Price: $98.30
Retail Price:$128.000
Your Savings:$29.70(23%)
Energy Transfer Hinge, 4-1/2 In. by 4-1/2 In., 5 Knuckle Standard Weight, 4 Wire, 26 Gauge, Satin Bronze Plated Clear Coated
Part Number : CAC_ETH4W4545612CHBB79
Availability: 32 In Stock
Command ETH4W4545-612 CH-BB79 4.5in X 4.5in 4-wire 26g Electric Hinge

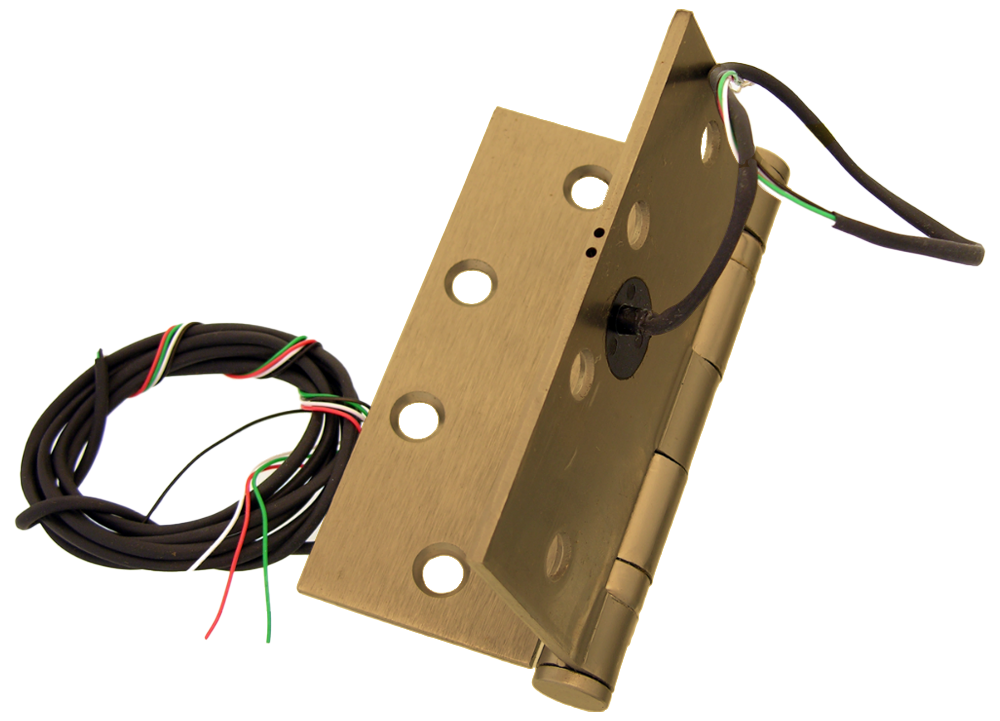

Command Access Energy Transfer Hinges (ETH) are the ideal way pass low voltage power from the hinge jamb to the lockset and/or monitor the door position without having exposed wires. These hinges are commonly used with electric mortise & cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights. We stock a vast variety of our Command Access UL-F rated hinges along with a good stock of most major brands. With a wide array of sizes, types, and finishes, we stock the materials to meet your immediate needs.

Features

  • 4' Lead available at no charge
  • Non-conductive wire access cap for added protection
  • Center located wire access hole
  • 3-Year Warranty
  • UL-F Rated

Attributes

Alt Part No: 174453

Alternate Codes: CMAETH4W4545/612, ETH4W4545-612 CH-BB79, ETH4W4545612CHBB79

Bearing Type: Plain Bearing

Category: Electrified Hinges, Hinges

Commercial Residential: Commercial

Corner Type: Square

Finish: 639/US10

Finish Code: 612

Finish Color: Satin Bronze, Satin/LT Bronze

Finish Description: Satin Bronze Plated Clear Coated

Finish Family: Matte Bronze

Handing: Non-Handed

Height: 4-1/2 In.

Hinge Size: 4.5" x 4.5"

Hinge Style: 5 Knuckle

Hinge Type: Hinge, Full Mortise

Installation: Commercial

Knuckles: 5

Length: 0.0

Mounting Holes: 8 Holes

Pin Type: (NRP) Non Removable

Power Transfer: 4-26ga

Sales Unit: EA

Series: Command Power Transfer Hinges

Subtype: Electrified Hinges

Tip Style: Standard

Type: HINGES

Weight: Standard Weight

Width: 4-1/2 In.

Wire Quantity: 4 Wire
