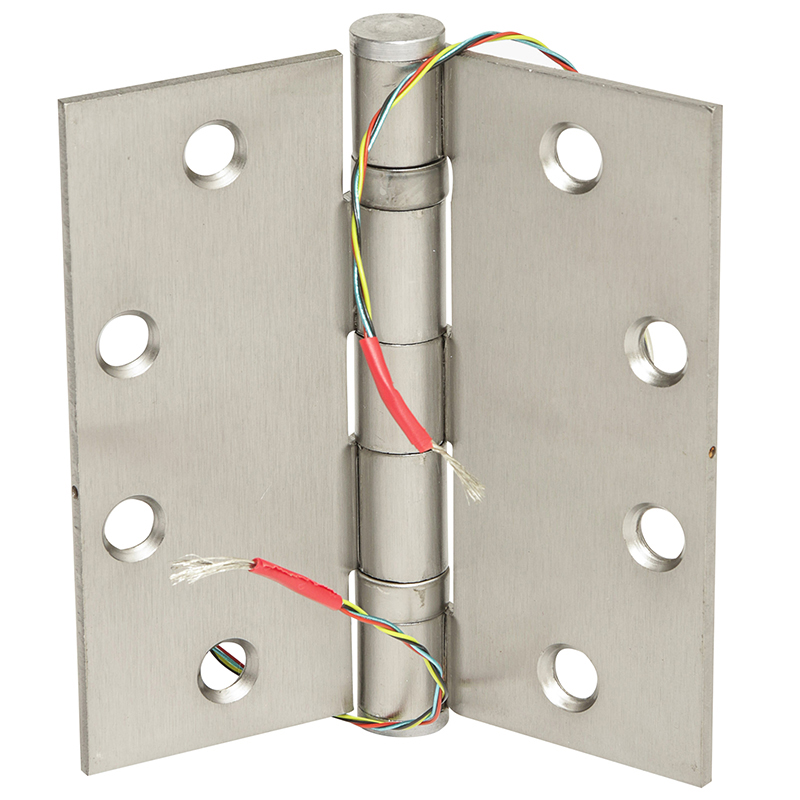

Command ETH4W4545 613 CH-BB68 4-Wire Power Transfer Hinge

Command Access Technologies ETH4W4545 613 CH-BB68 4 Wire Power Transfer Hinge offers a seamless solution for transferring low voltage power from the hinge jamb to your door hardware without the clutter of exposed wires. Measuring 4-1/2" x 4-1/2", this heavy-duty hinge features a robust 5 knuckle design, ensuring durability and reliable performance in commercial applications. Constructed from 26-gauge material with an oxidized satin bronze over copper plated oil rubbed finish, this hinge not only provides functionality but also adds an aesthetic touch to your doors. It is compatible with a variety of electric locks, including mortise and cylindrical options, electric strikes, exit trims, latch pullback devices, door-mounted card readers, and low voltage door lights, making it a versatile choice for any installation. Designed for full mortise applications, the ETH4W4545 also features non-removable pins for added security. With its plain bearing type and heavy weight classification, this hinge is built to withstand frequent usage while maintaining smooth operation. Command Access Technologies offers a comprehensive range of power transfer hinges, ensuring you find the perfect fit for your specific needs. Choose the ETH4W4545 for a reliable, efficient, and stylish addition to your door hardware.

4 Wire Power Transfer Hinge

Energy Transfer Hinge, 4-1/2" x 4-1/2", 5 Knuckle Heavy Weight, 4-Wire, 26 Gauge, Oxidized Satin Bronze Over Copper Plated Oil Rubbed Finish

Command Access Energy Transfer Hinges (ETH) are the ideal way pass low voltage power from the hinge jamb to the lockset and/or monitor the door position without having exposed wires. These hinges are commonly used with electric mortise & cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights. We stock a vast variety of our Command Access UL-F rated hinges along with a good stock of most major brands. With a wide array of sizes, types, and finishes, we stock the materials to meet your immediate needs.

Command Access Technologies offers a range of power transfer hinges that can fit any application.

Resources

• Command Energy Transfer Hinge Cut Sheet
