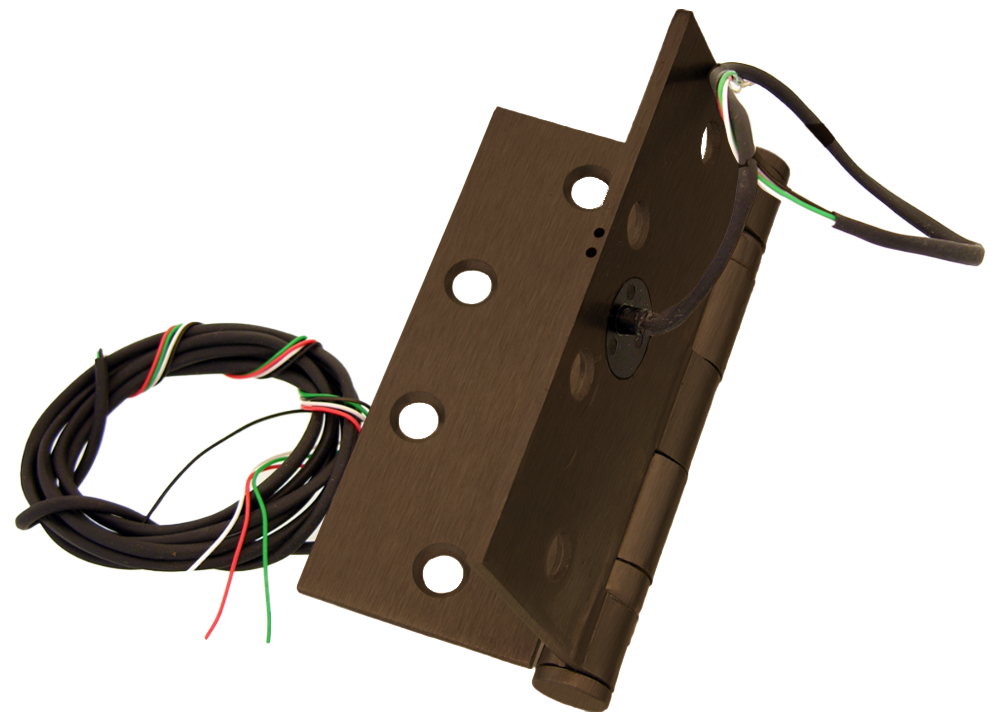

Command ETH4WH4545-613 CH-BB79 Electrified Hinge 4.5in x 4.5in, 2/18 2/26 Gauge, Fire Rated, Oil Rubbed Bronze

Command Access ETH4WH4545-613 CH-BB79 Electrified Hinge is a robust solution designed to seamlessly integrate low voltage power from the hinge jamb to your lockset, eliminating the need for exposed wires. Measuring 4.5 inches by 4.5 inches and featuring a 5-knuckle design with ball bearings, this hinge ensures smooth operation and longevity. Its standard weight steel construction is fire rated and finished in a striking oil-rubbed bronze (613/US10B), making it not only functional but also aesthetically pleasing. This electrified hinge is ideal for use with electric mortise and cylindrical locks, electric strikes, and door-mounted card readers, among other applications. The hinge comes equipped with a center-located wire access hole and a non-conductive wire access cap for enhanced protection. A generous 4-foot lead is provided at no extra charge, ensuring ease of installation. With a UL-F rating and a 3-year warranty, the ETH4WH4545-613 CH-BB79 hinge is built for reliability and safety in demanding environments. Its versatility and range of configurations-including options for electric latch retraction-make it a top choice for building professionals and knowledgeable homeowners alike. Enhance your security setup with this exceptional electrified hinge.

Electrified Hinge, 4.5in x 4.5in (4545), Wires 2/18 Gauge + 2/26 Gauge, 5-Knuckle, Ball Bearing, Standard Weight, Steel Base, Fire Rated, 613/US10B Oil Rubbed Bronze

The Energy Transfer Hinge (ETH) is the ideal way to pass low voltage power from the hinge jamb to the lockset without having any exposed wires. These hinges are commonly used with electric mortise & cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights. We can modify almost any hinge and we maintain a large inventory of most major hinge brands in various sizes and Finishes. Contact us if what you need is not listed.

• UL-F Rated
• 4' Lead available at no charge
• Center located wire access hole
• Non-conductive wire access cap for added protection
• 3-Year Warranty

Configurations Available: Molex Connectors available

• ETH2W - 2 Wire (20 gauge) - 4A@24V (per pair)
• ETH4W - 4 Wire (26 gauge) - 1A@24V (per pair)
• ETH6W - 6 Wire (26 gauge) - 1A@24V (per pair)
• ETH8W - 8 Wire (28 gauge) - 1A@24V (per pair)
• ETH1OW - 10 Wire (28 gauge) - 1A@24V (per pair)
• ETH12W - 12 Wire (28 gauge) - 1A@24V (per pair)

Configurations Available for Electric Latch Retraction: Molex Connectors not available with heavy gauge wires

• ETH2WH - 2 Wire (18 gauge)
• ETH4WH - 2 Wire (18 gauge) + 2 Wire (26 gauge)
• ETH6WH - 2 Wire (18 gauge) + 4 Wire (28 gauge)
• ETH8WH - 2 Wire (18 gauge) + 6 Wire (28 gauge)
• ETH1OWH - 2 Wire (18 gauge) + 8 Wire (28 gauge)
• ETH12WH - 2 Wire (18 gauge) + 10 Wire (28 gauge)

Features

• 4' Lead available at no charge
• Non-conductive wire access cap for added protection
• Center located wire access hole
• 3-Year Warranty
• UL-F Rated
