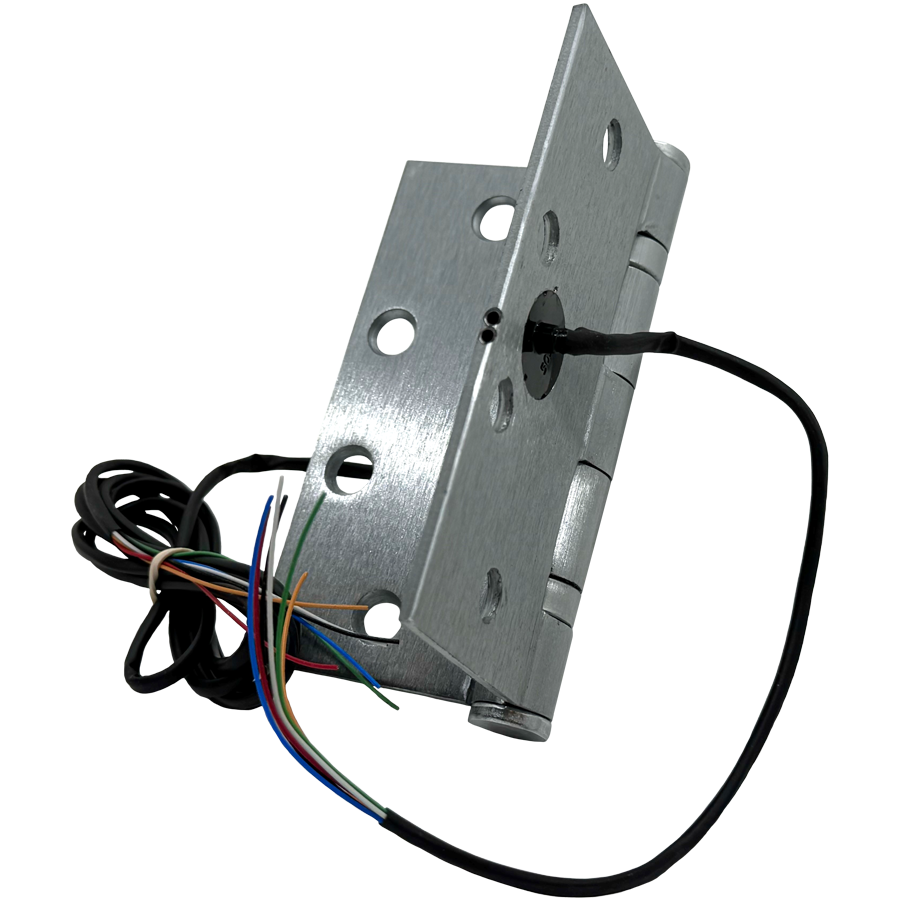

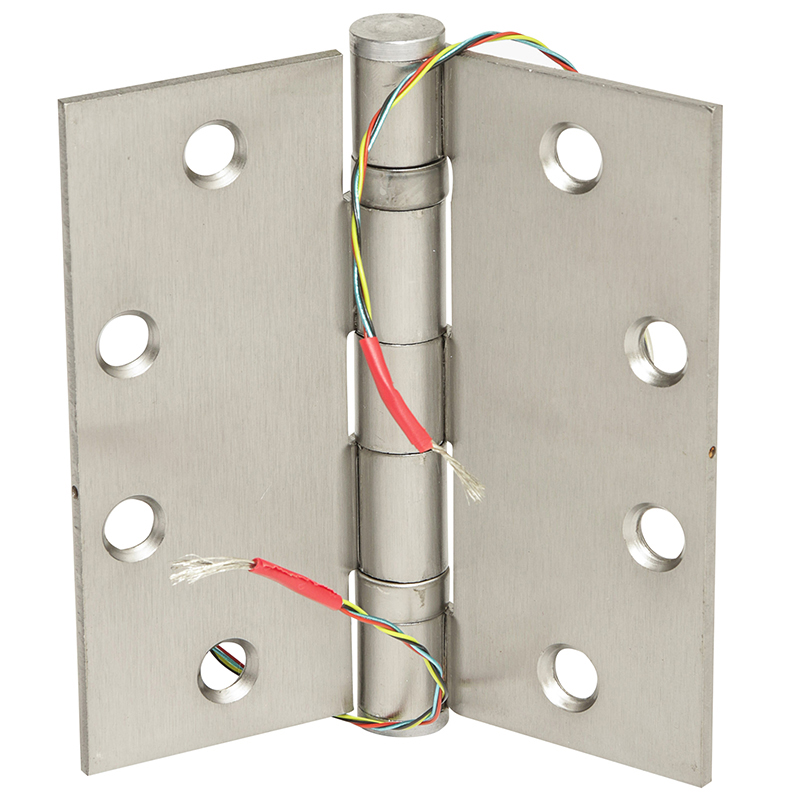

Energy Transfer Hinge, 4-1/2 In. by 4-1/2 In., 5 Knuckle Standard Weight, 6 Wire, 26 Gauge, Satin Chromium Plated

Part Number : CAC_ETH6W4545626CHBB79

Availability: 190 In Stock

Quantity

Description

Command ETH6W4545 626 CH-BB79 ETH6W4545 652 5SW

Command Access Energy Transfer Hinges (ETH) are the ideal way pass low voltage power from the hinge jamb to the lockset and/or monitor the door position without having exposed wires. These hinges are commonly used with electric mortise & cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights. We stock a vast variety of our Command Access UL-F rated hinges along with a good stock of most major brands. With a wide array of sizes, types, and finishes, we stock the materials to meet your immediate needs.

Features

4' Lead available at no charge
Non-conductive wire access cap for added protection
Center located wire access hole
3-Year Warranty
UL-F Rated

Attributes

Manufacturer surcharge: $ 0.0

Alt Part No: 178377

Alternate Codes: ETH6W4545-626 CH-BB79, ETH6W4545626CHBB79

Bearing Type: Plain Bearing

Category: Electrified Hinges, Hinges

Commercial Residential: Commercial

Corner Type: Square

Finish: 652/US26D

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Finish Description: Satin Chromium Plated

Finish Family: Matte Silver

Handing: Non-Handed

Height: 4-1/2 In.

Hinge Size: 4.5" x 4.5"

Hinge Style: 5 Knuckle

Hinge Type: Hinge, Full Mortise

Installation: Commercial

Knuckles: 5

Length: 7.380000000

Mounting Holes: 8 Holes

Pin Type: (NRP) Non Removable

Power Transfer: 6-26ga

Sales Unit: EA

Series: Command Power Transfer Hinges

Subtype: Electrified Hinges

Tip Style: Standard

Type: Hinges and Pivots

Weight: Standard Weight

Width: 4-1/2 In.

Wire Quantity: 6 Wire
