Images may not represent actual product and finish

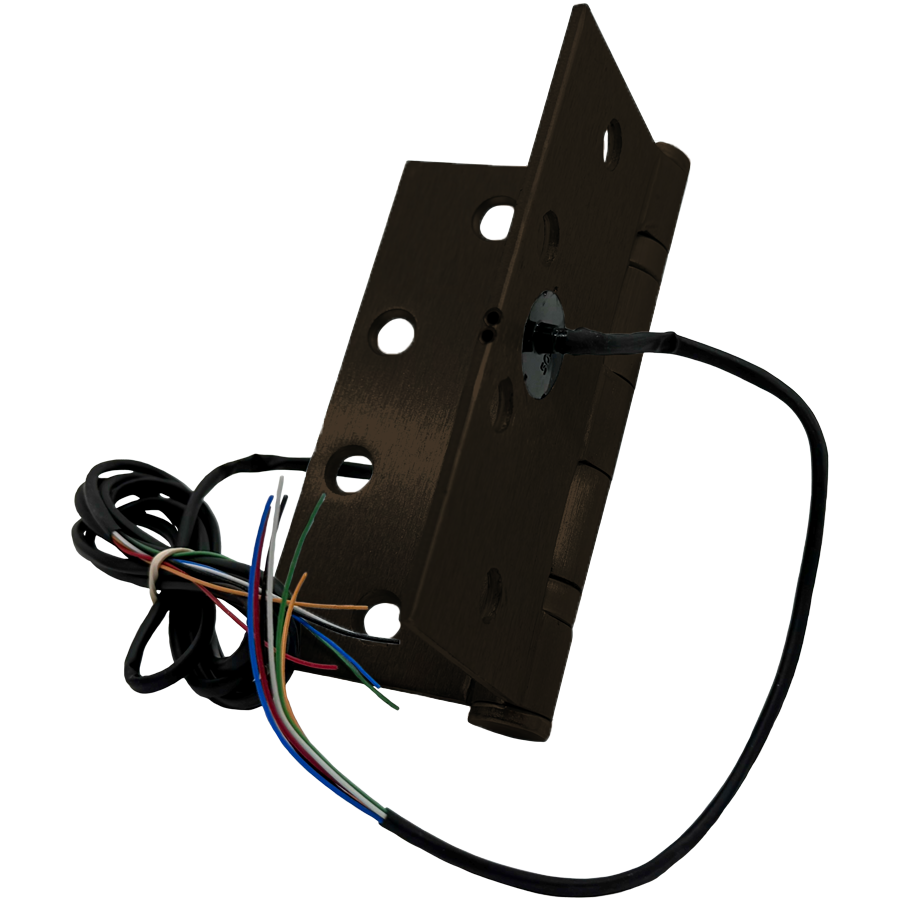

Command ETH6WH4545-613 CH-BB79 4.5x4.5 6-hw-wire 2/18ga-4/28ga El Hinge

Your Price: $125.63

Retail Price:$201.000

Your Savings:$75.37(37%)

Energy Transfer Hinge, 4-1/2 In. by 4-1/2 In., 5 Knuckle Standard Weight, 6 Wire, Two 18 Gauge, Four 28 Gauge, Oxidized Satin Bronze Over Copper Plated Oil Rubbed

Part Number : CAC_ETH6WH4545613CHBB79

Availability: 28 In Stock

Quantity

Description

Command ETH6WH4545-613 CH-BB79 4.5x4.5 6-hw-wire 2/18ga-4/28ga El Hinge

Heavy Wire Guage Standard Weight Hinge 2-18AWG + 4-28AWG

Features

4' Lead available at no charge
Non-conductive wire access cap for added protection
Center located wire access hole
3-Year Warranty
UL-F Rated

Attributes

Manufacturer surcharge: $ 0.0

Alt Part No: 170493

Alternate Codes: CMAETH6WH4545/10B, CMAETH6WH4545/10B 5FT LEAD, ETH6WH4545/10B, ETH6WH454510B, ETH6WH4545/10B 5FT LEAD, ETH6WH454510B5FTLEAD, ETH6WH4545-613 CH-BB79, ETH6WH4545613CHBB79

Bearing Type: Plain Bearing

Category: Electrified Hinges, Hinges

Commercial Residential: Commercial

Corner Type: Square

Finish: 640/US10B

Finish Code: 613

Finish Color: Dark Bronze, Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze

Finish Description: Oxidized Satin Bronze Over Copper Plated Oil Rubbed

Finish Family: Dark Bronze

Handing: Non-Handed

Height: 4-1/2 In.

Hinge Size: 4.5" x 4.5"

Hinge Style: 5 Knuckle

Hinge Type: Hinge, Full Mortise

Installation: Commercial

Knuckles: 5

Length: 0.0

Mounting Holes: 8 Holes

Pin Type: (NRP) Non Removable

Power Transfer: 2-18ga and 4-28ga

Sales Unit: EA

Series: Command Power Transfer Hinges

Subtype: Electrified Hinges

Tip Style: Standard

Type: HINGES

Weight: Standard Weight

Width: 4-1/2 In.

Wire Quantity: 6 Wire

Resources

Command Energy Transfer Hinge Cut Sheet

Command ETH6WH4545-613 CH-BB79 4.5x4.5 6-hw-wire 2/18ga-4/28ga El Hinge
