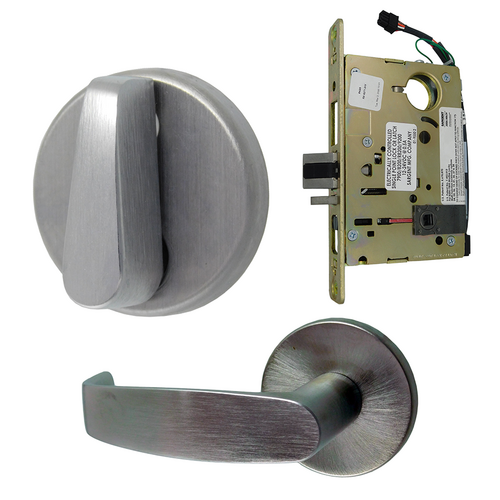

Command L9080LBEU KIT - CMAML80EUCH-24

Command Access L9080LBEU KIT - CMAML80EUCH-24 delivers advanced security solutions tailored for high-traffic environments. This electrified mortise lock from the Schlage L9000 series is specifically designed to manage remote keyless access and egress control, ensuring safety and reliability where it matters most. Ideal for applications such as stairwell doors, lobby entrances, and classrooms, the L9080LBEU offers versatile functionality with multiple options for fail-safe or fail-secure configurations. Key features include continuous duty solenoids that support "continuously on" operations, along with a plug-in bridge rectifier that accommodates both AC and DC power sources. With a low current draw and an efficient power consumption of just 8 watts, this lock prioritizes energy efficiency without compromising performance. The operating voltage can be specified as either 12 or 24VAC/DC, enabling customization to meet specific installation needs. This model also includes a robust 3-year warranty for added peace of mind. The L9080LBEU is compatible with a variety of trim options and finishes, allowing for seamless integration into any architectural design. Elevate your security infrastructure with the Command Access L9080LBEU KIT, engineered for durability and ease of use in demanding environments.

KIT - CMAML80EUCH-24

The electrified Schlage L9000 series mortise lock line allows for remote keyless access and egress control for heavy use applications where security and safety is critical. These locks may be purchased as complete locks, chassis only or as modifications only (add MD prefix for modification only of customers’ L9050 lock bodies). Along with the styles and Finishes listed, we offer multiple Functions and voltages to meet your requirements. Common applications include stairwell doors, lobby entrances, computer rooms, classrooms, interior and exterior doors.

Features:

• Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source
• Low current draw
• No hassle 3-Year Warranty

Specifications:

• Operating Voltage - 12 or 24VAC/DC (+or- 10%)(must specify 12 or 24 volts when ordering)
• Amperage - 12V = 700 mA / 24V = 350 mA
• Solenoid coil resistance - 12V = 18 Ω / 24V = 69 Ω
• Power consumption - 8 watts
• Available Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked)

Options

• REXBYPASS: Request to Exit Bypass switch available (on all Functions): request to exit (REX) switch will be bypassed when the lock is in the unlocked state, preventing false REX signals.
• EZ-REX-SCH: Field installable Request to Exit or AE Switch
• REX: Request to Exit or AE switch available (on all Functions)
• LBM: Latchbolt Monitor switch available (storeroom only)
• DPS: Door Position switch available(storeroom only)
• DBM: Deadbolt Monitor switch available (on ML53 only)
• SLM: Solenoid Monitor switch available (storeroom only)
• SCM: Security Monitor switch available (storeroom only)
• CRU2: Current Reduction Unit to improve solenoid life in "continuously on" applications.
• CRU2i: The intelligent CRU2: automatically detects DC input voltage between 12 to 30 volts and converts it to operate our 12V locks. Additionally, it adjusts the current to the solenoid allowing the lockset to run cooler and last longer without any manual adjustments.

Functions:

• ML80 - storeroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML82 - institutional (fail safe/fail secure): Outside and inside levers simultaneously locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key on either side. Switched power allows both levers to retract latchbolt.
• ML70 - classroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by lever on either side unless outside has been locked by key. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML480 - entry w/ deadbolt (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt and deadbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt and deadbolt. Inside lever is always free for immediate egress.
• ML485 - privacy w/ deadbolt: (fail secure) Outside lever unlocked (EU) electronically. Latchbolt and deadbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt unless deadbolt is thrown. Inside lever is always free for immediate egress. Available in EU (electronically locked) function only.

Trim Available:

• With A or B Rose or L Escutcheon
• 03
• 06
• 07
• 17

Finishes:

• 605
• 606
• 612
• 613
• 625
• 630

Resources

• Cut Sheet
