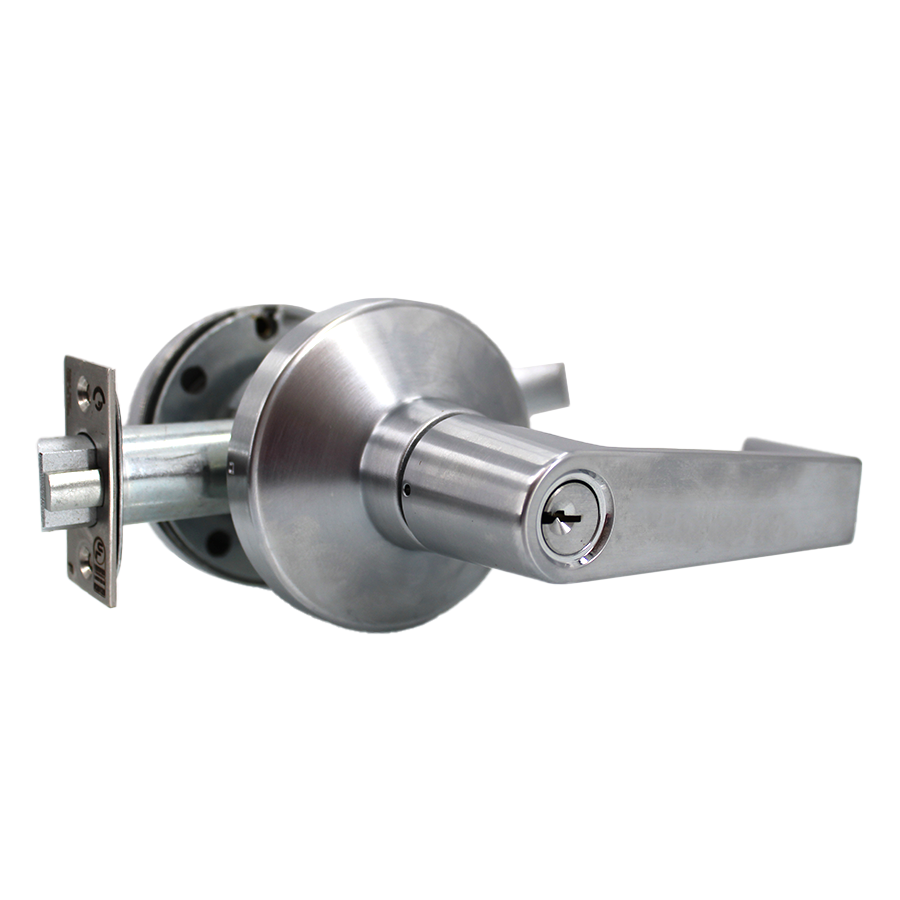

Command LPC190EU-L6-24V-626-SC Cylindrical Lock, 24V Motorized Latch, Schlage C Keyway, Satin Chrome

Command Access LPC190EU-L6-24V-626-SC Cylindrical Lock offers enhanced security with its low current motorized latch retraction. Designed for 24V EU electric unlock applications, this lock features a sleek satin chrome finish and a durable bent lever that complements a variety of architectural styles. With a 2-3/4 inch backset and ASA strike, it fits seamlessly into standard door preps. This innovative model is ideal for push-pull conditions, providing efficient access control for single-occupancy restrooms and facilities requiring handicap access. The built-in Smart Module simplifies installation while allowing for latch sensing status, ensuring reliable performance. Rated for continuous duty, the LPC190 can auto re-engage if the latch is pulled from the held-back position, enhancing its usability in high-traffic environments. The lock supports wire runs of up to 300 feet with 18-gauge wire, making it convenient for centralized power supply installations. With features such as a field-handable retrofit for Schlage L9000 series and optional request-to-exit capabilities, the LPC190 is versatile and adaptable. Backed by a 3-year "no hassle" warranty, this lock combines exceptional quality with peace of mind for both building professionals and homeowners.

Cylindrical Lock, Low Current Motorized Latch Retraction, 24V EU Electric Unlock, Bent Lever, Schlage C Keyway, 2-3/4in Backset, ASA Strike, UL Listed, UL Listed, 626/US26D Satin Chrome

The LPM190 series motorized latch retraction mortise lock utilizes a high-quality grade 1 chassis built to withstand years of abuse. This unique model brings latch retraction to a standard mortise lockset & is the perfect solution for push-pull conditions, handicap access, single-occupancy restroom applications, and automatic operators where panic devices are unnecessary. It utilizes a CAT-designed custom motor assembly to maximize the pulling force, lower surge, allowing long wire runs and multiple locks on one power supply. This mortise lock uses standard ‘type 86’ door prep and is a direct retrofit to Schlage L9000 compatible trim.

Features:

• Built-in Smart Module: Simplifies installation, low current draw & provides latch sensing status.
• Rated for continuous duty - auto re-engage if latch is pulled from held back position
• Up to 300’ wire run with 2-18ga wire - long wire runs provides installer with convenience of placing the command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8’ cable with quick connect to easily connect to power supply lead
• Built-in REX & LBM switches available.
• Field-Handable - direct retrofit for Schlage L9000 series
• 3-year "no hassle" warranty

Specifications:

• Voltage: Latch Retraction
• Voltage range – 24 +/- 10%
• System protection – unit shutdown when voltage exceeds 28VDC
• Standard - average current peak: 1A, average current hold: 300mA
• Lever Control:
• Operating voltage – specify 12 or 24VAC/DC (+/- 10%)
• Amperage - 24v = 350mA or 12V = 700mA
• Solenoid coil resistance – 24v = 69Ω
• Wire Run: 300’ with 18ga wire
• Product Details:
• Chassis Only Box: 10.5" x 3.75": x 2.5", weight: 3 Lbs, master pack qty: 10 ea.
• Complete Lock Box: 10.5" x 3.75": x 2.5", weight: 7 Lbs, master pack qty: 4 ea.
• Accessories:
• Request-to-exit - field installable
• Latchbolt monitor switch - field installable
• Door position switch - see IDPS series

Series Functions:

• LPM1910EU: Passage
• Latchbolt Control: Motorized latchbolt retracted by lever outside or by lever inside. Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control: Outside lever and inside lever - always free ingress and egress
• LPM190EU: Storeroom
• Latchbolt Control: Motorized latchbolt retracted by key outside or by lever inside. Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control: Outside Lever - always rigid (locked). Inside lever - always free egress
• LPM192EU: Institutional
• Latchbolt Control: Motorized latchbolt retracted by key outside or inside (double cylinder operation). Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control: Outside lever and inside lever - always rigid (locked)
• LPM193EUxEL/LPM194EUxEU: Storeroom x Storeroom
• Latchbolt Control: Motorized latchbolt retracted by key outside or inside. Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control:
• Outside Lever - EL - locked electronically: Applied power prohibits outside lever from retracting latchbolt. EU - unlocked electronically: Applied power allows outside lever to retract latchbolt.
• Inside Lever - Always free egress. Latchbolt retracted by key outside or inside. Applied power electronically (EU only) retracts latchbolt for push/pull operation.
• LPM195EUxEL/LPM196EUxEU: Institutional x Storeroom
• Latchbolt Control: Motorized latchbolt retracted by key outside or inside. Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control:
• Outside Lever - Always clutching (does not activate outside lever at anytime)
• Inside Lever - EL - locked electronically: Applied power prohibits Inside lever from retracting latchbolt. EU - unlocked electronically: Applied power allows Inside lever to retract latchbolt.
• LPM197EUxEL/LPM198EUxEU: Institutional x Institutional
• Latchbolt Control: Motorized latchbolt retracted by key outside or inside (double cylinder operation). Applied power electronically (EU only) retracts latchbolt for push/pull operation.
• Lever Control: Outside lever and inside lever - EL - locked electronically: Applied power prohibits both levers from retracting latchbolt. EU - unlocked electronically: Applied power allows both levers to retract latchbolt.

Finishes:

• 605/US3 - Bright brass
• 612/US10 - Satin bronze
• 613/US10B - Oil rubbed bronze
• 625/US26 - Bright chrome
• 626/US26D - Satin chrome

Resources

• Spec Sheet
