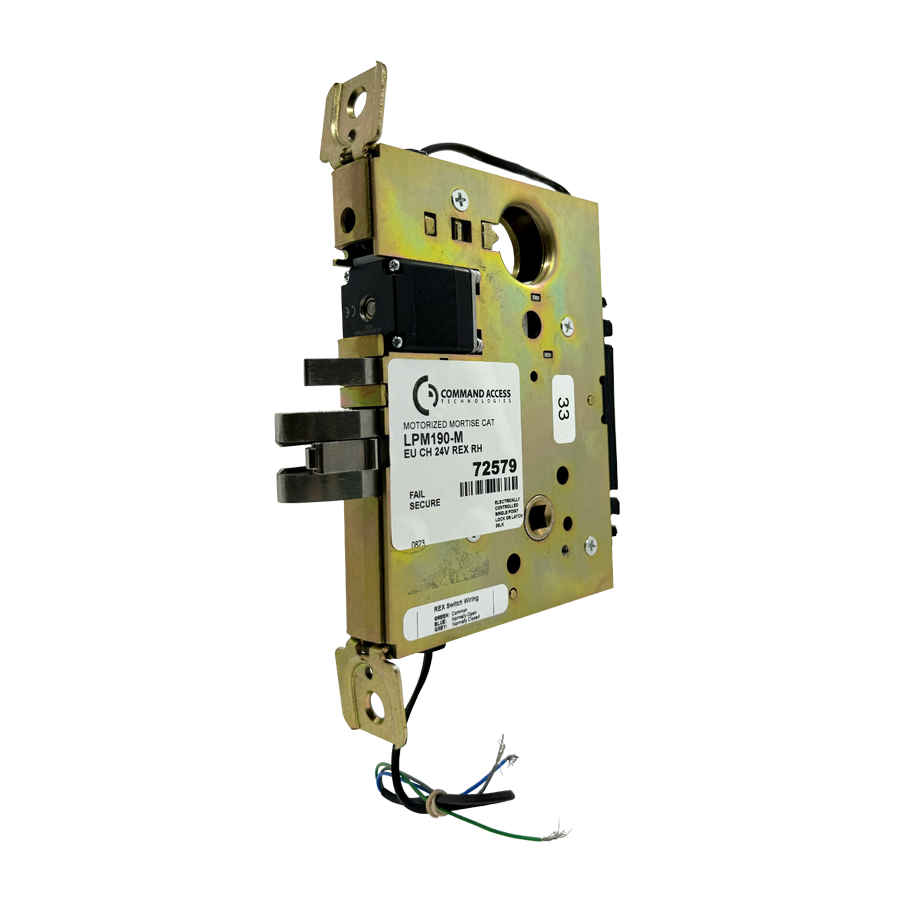

Command LPM190-M-EU-CH-24V Motorized Latch Retraction Mortise Body, 24V EU, Retrofit for Schlage L Series

Command Access LPM190-M-EU-CH-24V Motorized Latch Retraction Mortise Body Only delivers an innovative solution for modern locking needs. This robust Grade 1 mortise lock is designed to withstand years of heavy use, making it ideal for both commercial and residential applications. With its latch retraction feature, this model excels in environments requiring push-pull conditions and is particularly beneficial for handicap access and automatic operators. Engineered for seamless integration, the LPM190-M is a direct retrofit for Schlage L Series locks, eliminating the need for special door preparation. Utilizing patented PM300 technology, it ensures efficient wire runs and supports multiple locks on a single power supply. This mortise lock operates on a 24V system and includes dual solenoid functions, providing greater control, especially in single occupancy restrooms. Certified UL Listed, the LPM190-M offers a three-year no-hassle warranty, ensuring peace of mind for professionals and homeowners alike. It can be specified as chassis only or with complete trim options. Designed with standard ‘type 86’ door prep, this versatile lock is compatible with a range of Command Access power supplies, enhancing its functionality in various security setups. Choose Command Access for reliable and advanced locking solutions that prioritize safety and accessibility.

Motorized Latch Retraction Mortise Body Only, 24V EU Electric Unlock, Direct Retrofit for Schlage L Series, UL Listed

LPM1 series mortise lock utilizes a high quality Grade 1 chassis built to withstand years of abuse. This unique model brings latch retraction to a standard mortise lockset. Requiring no special door prep, this is the perfect solution for push-pull conditions, handicap access, and for automatic operators where panic devices are not necessary. The LPM1 takes advantage of out patented PM300 technology, allowing for favorable wire runs and multiple locks on one power supply. It is field Handable and available in Fail Secure (EU) functionality. This mortise lock uses standard ‘type 86’ door prep and can retrofit to Schlage L9000 compatible trim. We offer this model as chassis only or with complete trim.

Features:

• Latch Retraction in a mortise lock
• Great integrated solution for doors w/ auto-operators
• Direct retrofit for Schlage L series
• Dual solenoid functions offer greater control, ideal for single occupancy restrooms
• UL Listed
• 3 year no hassle warranty
• No special lock prep required – fits standard mortise pocket prepped for a Schlage "L" series lock
• Utilizes our patented PM/PWM technology
• Circuitry allow for momentary or continuously on "push/pull" applications
• Available is complete locksets or in chassis only (retrofits to Schlage "L" series compatible trim)
• Must be used with a Command Access PS210,PS1, PS220/220B/ PS440B, or PS5-4 power supply

Latchbolt Solenoid Specifications:

• Operating Voltage – 24 VDC (+/- 10%)
• Holding Current Amperage - 260mA@24VDC
• Surge Current Amperage - 1.9A for 350ms@24VDC
• Peak Current - 7 A @ 24VDC
• Solenoid coil resistance – 1.75 Ω
• Wire gauge: Minimum 18 gauge
• 300’ with 18ga wire

Lever Solenoid Specifications:

• Operating Voltage – 24VAC/DC (+/- 10%)
• Amperage - 24v = 350mA
• Solenoid coil resistance – 24v = 69Ω

Options:

• REX - Request to Exit switch available
• LBM- Latchbolt Monitor switch available

Functions:

• LPM110EU - Passage
• Latchbolt Control: Latchbolt retracted by lever outside or by lever inside. Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control: Outside Lever & Inside Lever - Always free ingress & egress
• LPM180EU - Storeroom
• Latchbolt Control: Latchbolt retracted by key outside or by lever inside. Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control: Outside Lever - Always Rigid (Locked). Inside Lever - Always free egress
• LPM182EU - Institutional
• Latchbolt Control: Latchbolt retracted by key outside or inside (Double Cylinder operation). Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control: Outside Lever & Inside Lever - Always Rigid (Locked)
• LPM183EUxEL, LPM184EUxEU - Storeroom x Storeroom
• Latchbolt Control: Latchbolt retracted by key outside or by inside lever. Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control: Outside Lever - EL - locked electronically: Applied power prohibits Outside lever from retracting latchbolt. EU - unlocked electronically: Applied power allows Outside lever to retract latchbolt. Inside Lever - Always free egress.
• LPM185EUxEL, LPM186EUxEU - Institutional x Storeroom
• Latchbolt Control: Latchbolt retracted by key outside or inside (Double Cylinder operation). Applied power electronically (EU only) retracts latchbolt for push/pull operation.
• Lever Control: Outside Lever - Always Clutching (Does not activate outside lever at anytime). Inside Lever - EL - locked electronically: Applied power prohibits Inside lever from retracting latchbolt. EU - unlocked electronically: Applied power allows Inside lever to retract latchbolt
• LPM187EUxEL, LPM188EUxEU - Institutional x Institutional
• Latchbolt Control: Latchbolt retracted by key outside or inside (Double Cylinder operation). Applied power electronically (EU only) retracts latchbolt for push/pull operation
• Lever Control: Outside Lever & Inside Lever - EL - locked electronically: Applied power prohibits both levers from retracting latchbolt. EU - unlocked electronically: Applied power allows both levers to retract latchbolt.
