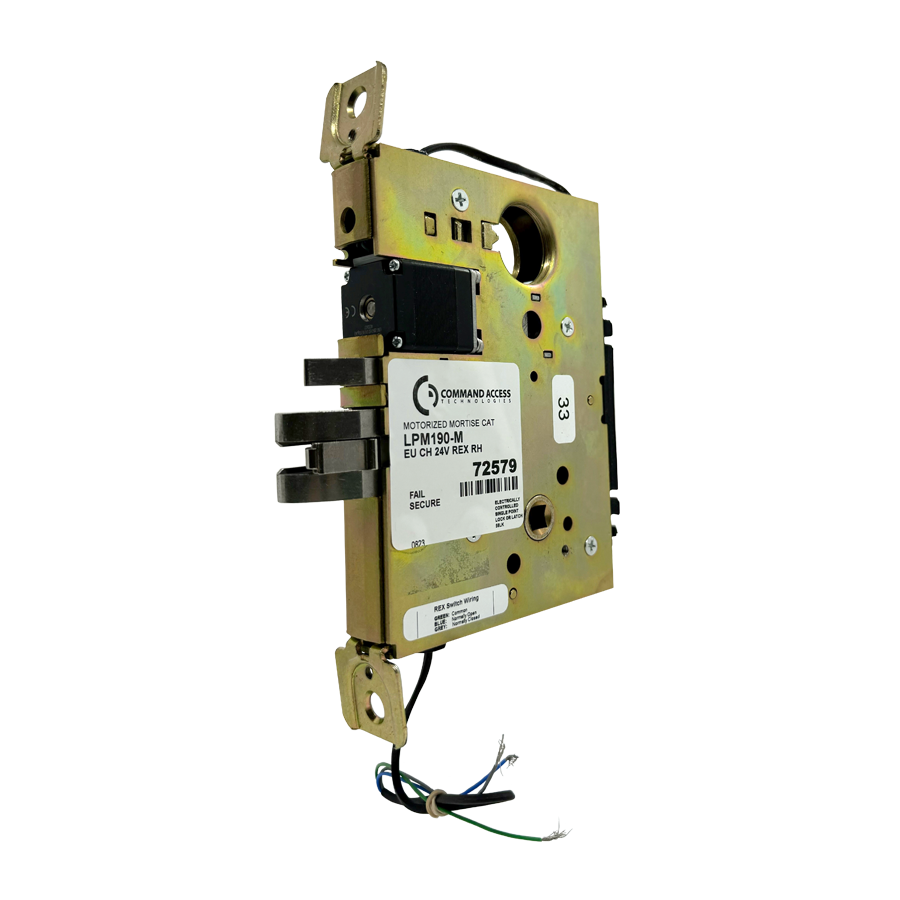

Command LPM190-M-EU-CH-24V-REX Motorized Mortise Latch Retraction, 24V EU Electric Unlock, Schlage L Retrofit

Command Access LPM190-M-EU-CH-24V-REX Motorized Latch Retraction Mortise Body Only offers a robust solution for modern security needs, designed specifically for high-traffic environments. This Grade 1 mortise lock features latch retraction capabilities that seamlessly integrate with standard mortise locksets. With no special door preparation required, it is ideal for push-pull conditions, handicap access, and automatic operators, where traditional panic devices may not be necessary. Utilizing the patented PM300 technology, the LPM190-M ensures efficient wiring runs and allows multiple locks to operate from a single power supply. Its dual solenoid functions offer enhanced control, making it particularly suitable for single-occupancy restrooms. This model can be retrofitted to Schlage L9000 compatible trim, ensuring versatility and ease of installation. The lock operates on a 24V DC power supply and is UL Listed for safety and reliability. Additionally, it is available in both chassis-only and complete lockset options. Features like the Request to Exit (REX) switch and Latchbolt Monitor (LBM) switch further enhance its functionality. Backed by a three-year no-hassle warranty, the LPM190-M is a dependable choice for commercial applications where security and accessibility are paramount.

Motorized Latch Retraction Mortise Body Only with/ (REX) Request to Exit, 24V EU Electric Unlock, Direct Retrofit for Schlage L Series, UL Listed

LPM1 series mortise lock utilizes a high quality Grade 1 chassis built to withstand years of abuse. This unique model brings latch retraction to a standard mortise lockset. Requiring no special door prep, this is the perfect solution for push-pull conditions, handicap access, and for automatic operators where panic devices are not necessary. The LPM1 takes advantage of out patented PM300 technology, allowing for favorable wire runs and multiple locks on one power supply. It is field Handable and available in Fail Secure (EU) functionality. This mortise lock uses standard ‘type 86’ door prep and can retrofit to Schlage L9000 compatible trim. We offer this model as chassis only or with complete trim.

Features:

• Latch Retraction in a mortise lock
• Great integrated solution for doors w/ auto-operators
• Direct retrofit for Schlage L series
• Dual solenoid functions offer greater control, ideal for single occupancy restrooms
• UL Listed
• 3 year no hassle warranty
• No special lock prep required – fits standard mortise pocket prepped for a Schlage "L" series lock
• Utilizes our patented PM/PWM technology
• Circuitry allow for momentary or continuously on "push/pull" applications
• Available is complete locksets or in chassis only (retrofits to Schlage "L" series compatible trim)
• Must be used with a Command Access PS210,PS1, PS220/220B/ PS440B, or PS5-4 power supply

Latchbolt Solenoid Specifications:

• Operating Voltage – 24 VDC (+/- 10%)
• Holding Current Amperage - 260mA@24VDC
• Surge Current Amperage - 1.9A for 350ms@24VDC
• Peak Current - 7 A @ 24VDC
• Solenoid coil resistance – 1.75 Ω
• Wire gauge: Minimum 18 gauge
• 300’ with 18ga wire

Lever Solenoid Specifications:

• Operating Voltage – 24VAC/DC (+/- 10%)
• Amperage - 24v = 350mA
• Solenoid coil resistance – 24v = 69Ω

Options:

• REX - Request to Exit switch available
• LBM- Latchbolt Monitor switch available

Functions:

• LPM110EU - Passage
• Latchbolt Control: Latchbolt retracted by lever outside or by lever inside. Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control: Outside Lever & Inside Lever - Always free ingress & egress
• LPM180EU - Storeroom
• Latchbolt Control: Latchbolt retracted by key outside or by lever inside. Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control: Outside Lever - Always Rigid (Locked). Inside Lever - Always free egress
• LPM182EU - Institutional
• Latchbolt Control: Latchbolt retracted by key outside or inside (Double Cylinder operation). Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control: Outside Lever & Inside Lever - Always Rigid (Locked)
• LPM183EUxEL, LPM184EUxEU - Storeroom x Storeroom
• Latchbolt Control: Latchbolt retracted by key outside or by inside lever. Applied power electronically (EU) retracts latchbolt for push/pull operation.
• Lever Control: Outside Lever - EL - locked electronically: Applied power prohibits Outside lever from retracting latchbolt. EU - unlocked electronically: Applied power allows Outside lever to retract latchbolt. Inside Lever - Always free egress.
• LPM185EUxEL, LPM186EUxEU - Institutional x Storeroom
• Latchbolt Control: Latchbolt retracted by key outside or inside (Double Cylinder operation). Applied power electronically (EU only) retracts latchbolt for push/pull operation.
• Lever Control: Outside Lever - Always Clutching (Does not activate outside lever at anytime). Inside Lever - EL - locked electronically: Applied power prohibits Inside lever from retracting latchbolt. EU - unlocked electronically: Applied power allows Inside lever to retract latchbolt
• LPM187EUxEL, LPM188EUxEU - Institutional x Institutional
• Latchbolt Control: Latchbolt retracted by key outside or inside (Double Cylinder operation). Applied power electronically (EU only) retracts latchbolt for push/pull operation
• Lever Control: Outside Lever & Inside Lever - EL - locked electronically: Applied power prohibits both levers from retracting latchbolt. EU - unlocked electronically: Applied power allows both levers to retract latchbolt.
