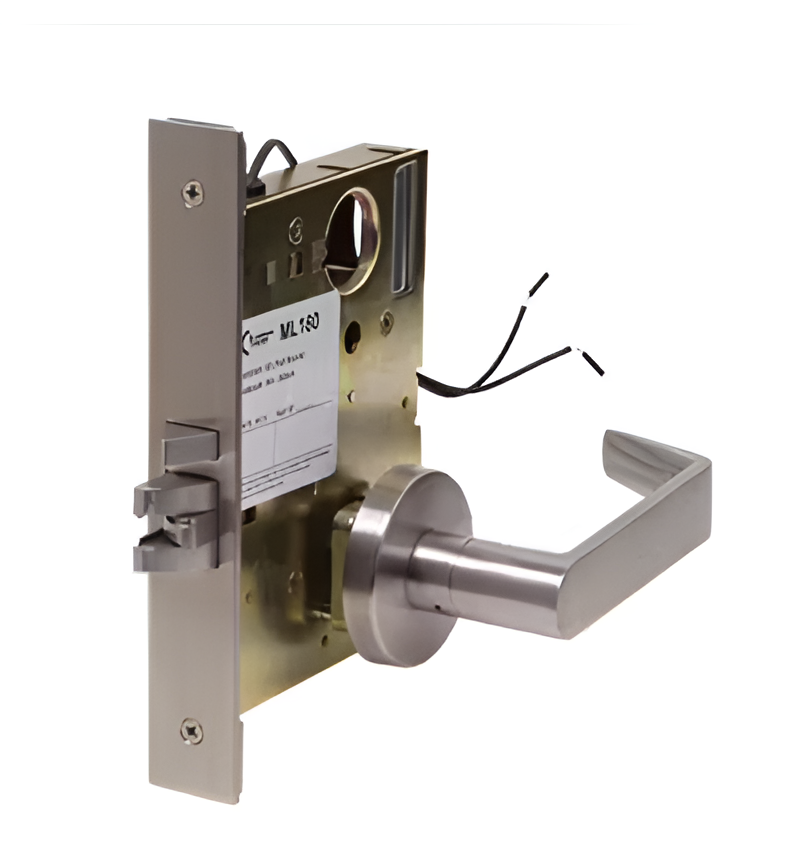

Command ML1080LB Storeroom Function Mortise Chassis Only

Command Access ML1080LB Storeroom Function Mortise Chassis Only offers an exceptional blend of security and versatility for modern access control needs. This high-quality mortise lock is designed to retrofit Schlage L9000 series locks, making upgrades seamless and efficient. Crafted in the USA, the ML1 series boasts ANSI grade 1 certification, ensuring durability and reliability without the premium price tag. One of the standout features of the ML1080LB is its continuous duty solenoid, ideal for fail-safe or unlock cycle applications. The lock operates on either 12 or 24VAC/DC with a low current draw of 700 mA at 12V and 350 mA at 24V, making it energy-efficient. With multiple trim styles available and field-reversible handing, this lock can accommodate various installation preferences. The ML1080LB comes with a 3-year warranty, reflecting Command Access's commitment to quality. Its plug-in bridge rectifier allows compatibility with both AC and DC power sources, simplifying installation. This chassis is designed for storeroom applications, allowing the outside lever to be locked or unlocked electronically, with immediate egress from the inside. Available in a range of finishes, including polished and satin chrome, the ML1080LB not only enhances security but also complements any architectural style. Upgrade your access control system with this reliable and stylish solution.

Storeroom Function Mortise Chassis Only

The ML1 retrofit complete lock (L9000) series available in a solenoid (ML180) and motor driven (ML190) modification offers the quality and features found in premium-quality, domestically made ANSI grade 1 mortise locks, yet at a significantly lower cost. The electrification and part tolerance maintenance is done here in the USA to ensure CAT’s high quality standards are met. The ML1’s chassis and trim are compatible with the Schlage 'L' series locks so retrofitting to Schlage prep is never a problem.

Features:

• Retrofits Schlage L9000 series
• Grade 1
• UL Listed
• Multiple trim styles
• EU/EL Field reversible
• 3 Year warranty
• Continuous duty solenoids allow for "continuously on" applications such as fail safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source supplied with all locks
• Low current draw
• Handing field reversible

Specifications:

• Operating Voltage: 12 or 24VAC/DC (+or- 10%)
• Amperage: 12V = 700 mA / 24V = 350 mA
• Solenoid coil resistance: 12V = 18 Ω/24V = 69 Ω
• Power consumption: 8 watts
• Available: Fail safe (EL) or fail secure (EU)

Trim Dimensions:

• L: 2-7/16"
• LB: 2-3/4
• ESC: 1-3/4" x 8"

Models:

• ML170 - classroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by lever on either side unless outside has been locked by key. Applied power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML180 - storeroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Applied power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML182 - Institutional (fail safe/fail secure): Outside and inside levers simultaneously locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key on either side. Applied power allows both levers to retract latchbolt.
• ML1480 - entry w/deadbolt (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt and deadbolt retracted by key outside or lever inside. Applied power allows outside lever to retract latchbolt and deadbolt. Inside lever is always free for immediate egress.
• ML1485 - privacy w/deadbolt (fail secure only): Outside lever unlocked (EU) electronically. Latchbolt and deadbolt retracted by key outside or lever inside. Applied power allows outside lever to retract latchbolt unless deadbolt is thrown. Inside lever is always free for immediate egress. Available in EU (electronically unlocked) function only.

Accessories:

• Current Reduction Unit (CRU2): 10-30V input manages power to efficiently control a 12 or 24V solenoid. Improve solenoid life in "continuously on" applications.
• Request to Exit (REX): Available as a field installable kit or factory installed
• Request to Exit By Pass (REXBPS): Request to exit (Rex) switch will be bypassed when the lock is in the unlocked state, preventing false Rex signals.
• Latchbolt Monitor (LBM): Monitor the position of the latchbolt
• Door Position (DPS): Monitor the position of the door
• Solenoid Monitor (SLM): Monitor the position of the solenoid
• Security Monitor (SCM): Monitor solenoid and door position.

Finishes:

• 605 – Polished bronze
• 612 – Satin bronze
• 613 – Oil rubbed bronze
• 625 – Polished chrome
• 626 – Satin chrome
