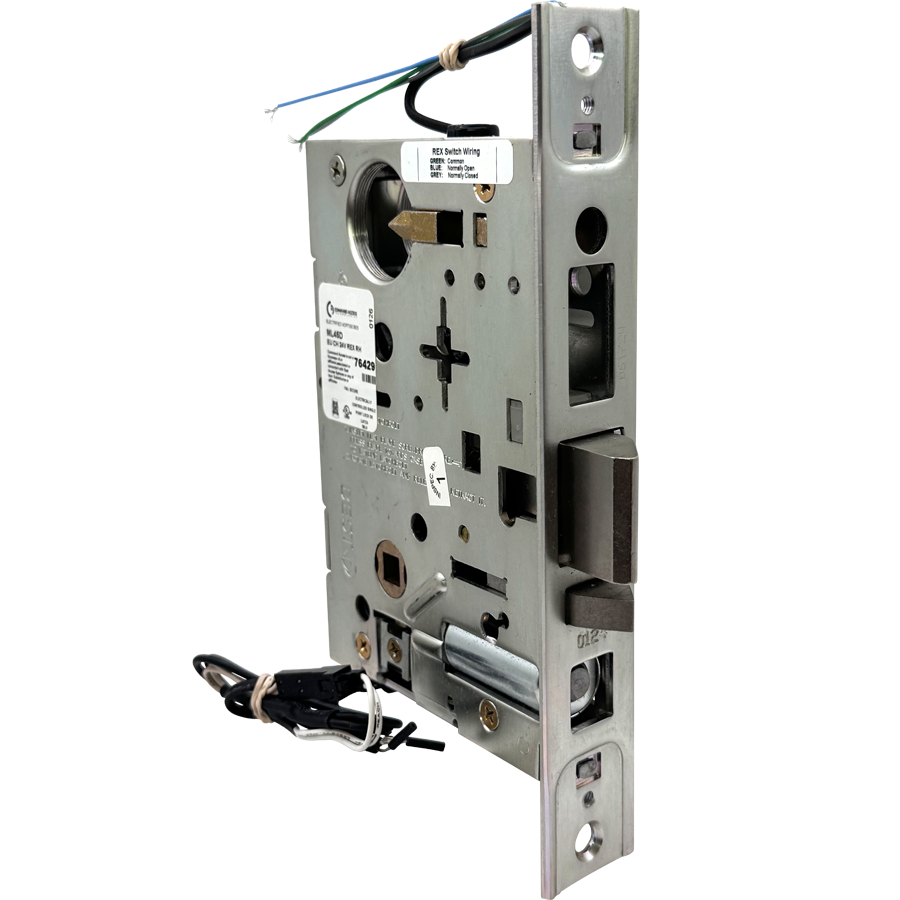

Command ML45DEU-CH-24V-REX Electrified Best Mortise Body, 24V Fail Secure, Request to Exit (REX)

Command Access ML45DEU-CH-24V-REX Electrified Best Mortise Body Only is designed for heavy-use applications where security and safety are paramount. This 24V Fail Secure (FSE) model incorporates a Request to Exit (REX) feature, allowing for seamless remote keyless access and effective egress control, making it an ideal choice for stairwell doors, lobby entrances, and classroom settings. Engineered with continuous duty solenoids, the ML45 lock supports "continuously on" applications, ensuring reliability in high-traffic areas. The plug-in bridge rectifier accommodates both AC and DC power sources, while the low current draw enhances energy efficiency. With options for both Fail Safe and Fail Secure modes, this mortise lock can be tailored to meet specific security needs. Additional features include a range of voltage options (12V or 24V), and customizable add-ons like the Latchbolt Monitor (LBM) and Door Position Switch (DPS). The intelligent Current Reduction Unit (CRU2i) optimizes solenoid life by automatically adjusting to input voltage, ensuring your lockset runs cooler and lasts longer. Backed by a no-hassle 3-year warranty, the Command Access ML45DEU-CH-24V-REX is the perfect solution for modern security demands, providing peace of mind in a robust and versatile package.

Electrified Best Mortise Body Only, 24V Fail Secure (FSE), with Request to Exit (REX)

The electrified Best ML45 series mortise lock line allows for remote keyless access and egress control for heavy use applications where security and safety is critical. The ML45 Series locks may be purchased as complete locks, chassis only or as modifications only (add MD prefix for modification only of customers’ ML45 lock bodies). Along with the styles and finishes listed, we offer multiple functions and voltages to meet your requirements. Common applications include stairwell doors, lobby entrances, computer rooms, classrooms, interior and exterior doors.

Features

• Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source
• Low Current Draw
• No hassle 3-Year Warranty

Options

• Available Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked)
• Voltage Options - 12V or 24V (AC/DC)
• REX - Request to Exit or AE switch available
• LBM - Latchbolt Monitor switch available
• DPS - Door Position switch available
• CRU2 - Current Reduction Unit to improve solenoid life in "continuously on" applications
• CRU2i - The intelligent CRU2: automatically detects DC input voltage between 12 to 30 volts and converts it to operate our 12V locks. Additionally, it adjusts the current to the solenoid allowing the lockset to run cooler and last longer without any manual adjustments.

Specifications

• Operating Voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
• Amperage - 12V = 700 mA / 24V = 350 mA
• Solenoid coil resistance - 12V = 18 Ω / 24V = 69 Ω
• Power consumption - 8 watts

Functions:

• ML45DEL/EU - storeroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML45WEL/EU - institutional (fail safe/fail secure): Outside and inside levers simultaneously locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key on either side. Switched power allows both levers to retract latchbolt.
• ML453DEL/EU - entry w/deadbolt (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt and deadbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt and deadbolt. Inside lever is always free for immediate egress.
