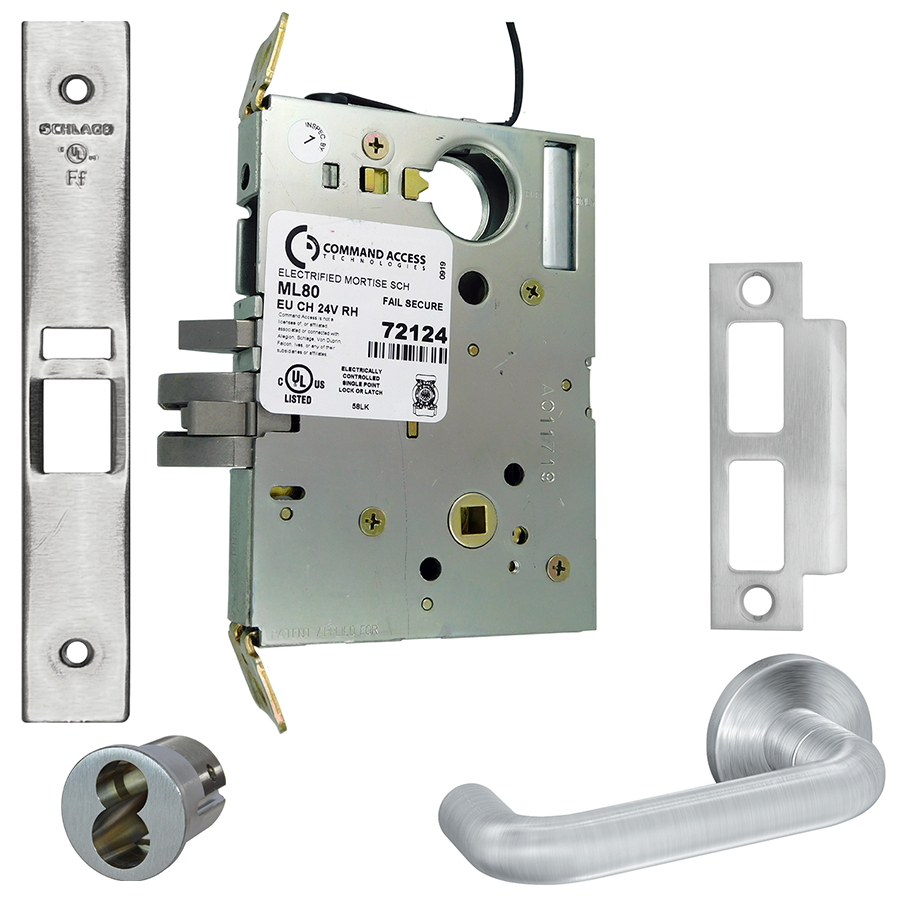

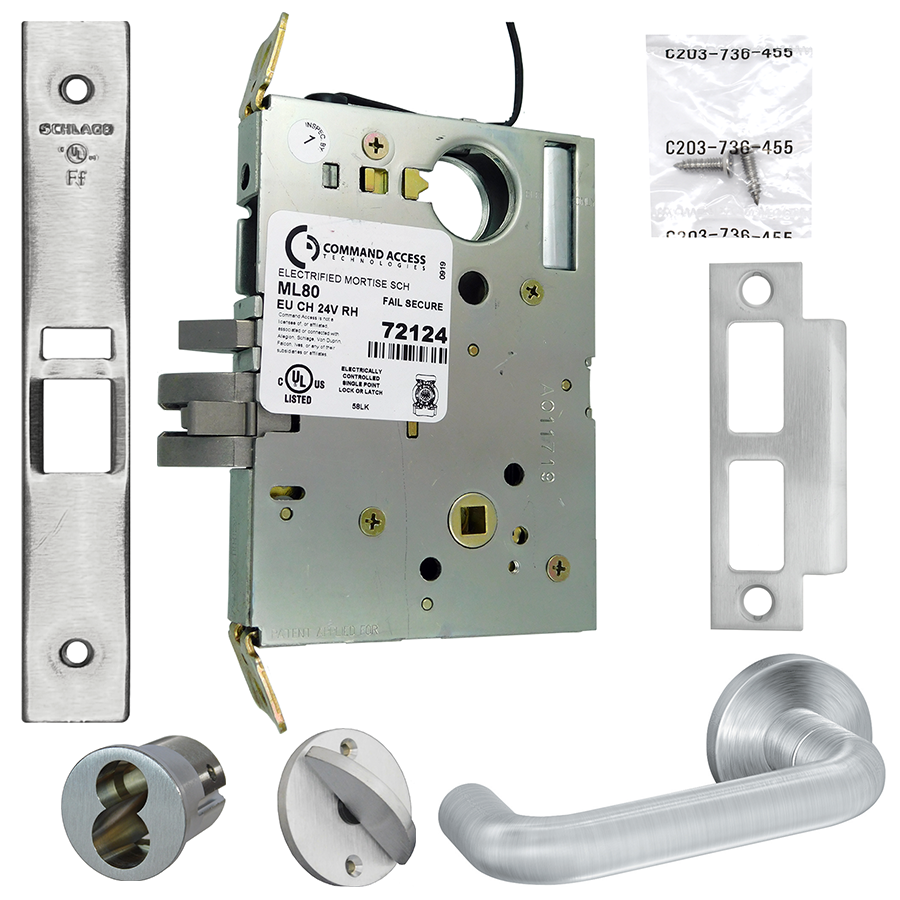

Command ML80EU-24-03A-626-LFIC KIT-03A Electrified Schlage Mortise Lock, 24V Fail Secure, LFIC Prep, Satin Chrome

Command Access ML80EU-24-03A-626-LFIC KIT is an advanced electrified Schlage mortise lock designed for high-security applications. With a 24V fail secure (FSE) operation and electric unlocked (EU) feature, this lock is ideal for environments requiring robust access control, such as stairwells, lobby entrances, and classrooms. Engineered with continuous duty solenoids, the ML80 allows for uninterrupted operation in fail secure or unlocked modes, ensuring safety without compromising security. Its plug-in bridge rectifier accommodates both AC and DC power sources, making installation flexible. The low current draw enhances efficiency, while a no-hassle 3-year warranty provides peace of mind. This model features a satin chrome finish (626/US26D) and is field reversible, allowing for easier installation on various door types. The storeroom function ensures that the outside lever is electronically locked or unlocked, with immediate egress available from the inside. With a backset of 2-3/4" and a latch bolt throw of 3/4", it’s designed to fit standard doors with a minimum thickness of 1-3/4". The ML80EU-24-03A is a reliable choice for building professionals and knowledgeable homeowners looking for a secure, durable locking solution that meets modern access control demands.

KIT - 03A, Electrified Schlage Mortise Lock, 24V Fail Secure (FSE), Electric Unlocked (EU), Large Format IC (LFIC) Prep, Less Core, 626/US26D Satin Chrome

The electrified Schlage L9000 series mortise lock line allows for remote keyless access and egress control for heavy use applications where security and safety is critical. These locks may be purchased as complete locks, chassis only or as modifications only (add MD prefix for modification only of customers’ L9050 lock bodies). Along with the styles and finishes listed, we offer multiple functions and voltages to meet your requirements. Common applications include stairwell doors, lobby entrances, computer rooms, classrooms, interior and exterior doors.

Features:

• Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source
• Low Current Draw
• No hassle 3-Year Warranty

Options:

• REXBYPASS - Request to Exit Bypass switch available (on all functions): request to exit (REX) switch will be bypassed when the lock is in the unlocked state, preventing false REX signals.
• EZ-REX-SCH - Field installable Request to Exit or AE Switch
• REX - Request to Exit or AE switch available (on all functions)
• LBM - Latchbolt Monitor switch available (storeroom only)
• DPS - Door Position switch available (storeroom only)
• DBM - Deadbolt Monitor switch available (on ML53 only)
• SLM - Solenoid Monitor switch available (storeroom only)
• SCM - Security Monitor switch available (storeroom only)
• CRU2 - Current Reduction Unit to improve solenoid life in "continuously on" applications
• CRU2i - The intelligent CRU2: automatically detects DC input voltage between 12 to 30 volts and converts it to operate our 12V locks. Additionally, it adjusts the current to the solenoid allowing the lockset to run cooler and last longer without any manual adjustments.

Specifications:

• Operating Voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
• Amperage - 12V = 700 mA / 24V = 350 mA
• Solenoid coil resistance - 12V = 18 Ω / 24V = 69 Ω
• Power consumption - 8 watts

Functions:

• ML80 - storeroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML82 - institutional (fail safe/fail secure): Outside and inside levers simultaneously locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key on either side. Switched power allows both levers to retract latchbolt.
• ML70 - classroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by lever on either side unless outside has been locked by key. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML480 - entry w/ deadbolt (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt and deadbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt and deadbolt. Inside lever is always free for immediate egress.
• ML485 - privacy w/ deadbolt (fail secure): Outside lever unlocked (EU) electronically. Latchbolt and deadbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt unless deadbolt is thrown. Inside lever is always free for immediate egress. Available in EU (electronically locked) function only.

Finishes:

• 605
• 606
• 612
• 613
• 625
• 626
• 630

Resources

• Cut Sheet
